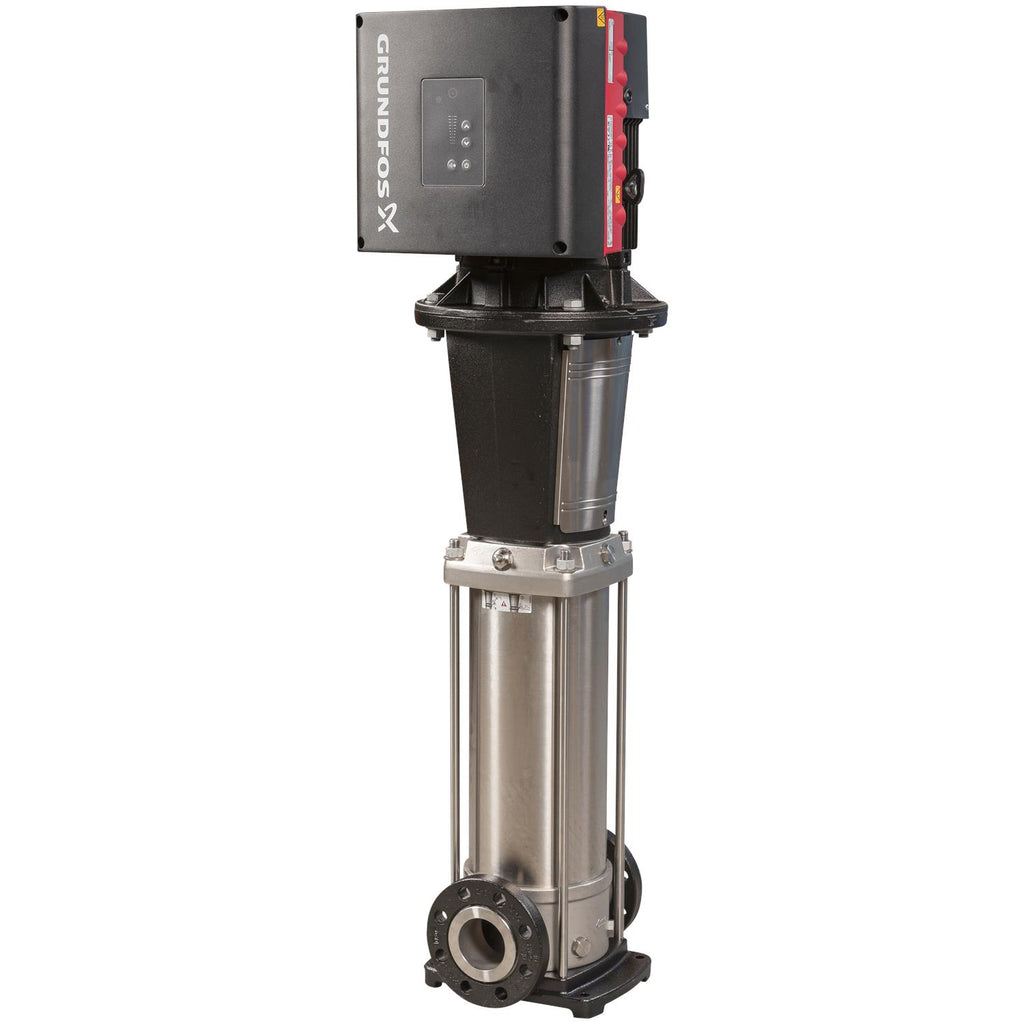

Grundfos 99078625 - CRNE 45-2-1 A-G-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99078625

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99078625 - CRNE 45-2-1 A-G-A-E-HQQE is a vertical, inline multistage stainless steel pump designed for industrial fluid transfer and high-pressure duty. It suits plant maintenance technicians and contractors replacing or upgrading centrifugal pump systems.

Key features

  • Stainless steel vertical inline multistage construction for compact, high-pressure service
  • Suitable for centrifugal, high-pressure and multi-stage inline applications per Tags
  • Reliable performance that helps maintain system pressure and reduces downtime

Applications

Boiler feed, high-pressure water distribution, process supply, and other industrial fluid handling where compact vertical multistage pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99078625

EAN 5712606331338
Applications Industrial applications
Actual impeller diameter 5.37 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Bearing 2 Graflon
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074325
Connect code G
Connection PN 16
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.37 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 297.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 222.5 ft
Maximum operating pressure 16 bar
Model B
Motor Standard motor size
Motor efficiency at full load 1 0.932
Motor standard NEMA
Motor type 160H
Net weight 279.0 lb
Number of reduced-diameter impellers 1
Power (P2) required by pump 11 kW
Power factor 1 0.92-0.91
Pressure rating for connection PN 16
Pressure sensor N
Product family CRNE 45
Pump 11 kW
Pump speed on which pump data are based 3444 rpm
Pump version A
Pumped liquid Water
Rated current 17.9-16.6 A
Rated flow 238 US gpm
Rated head 169.6 ft
Rated power - P2 11 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 2
Standard NEMA
Support bearing Graflon
Terminal box position 6
Type 160H
Type of connection ANSI
Version A

Motor Curves

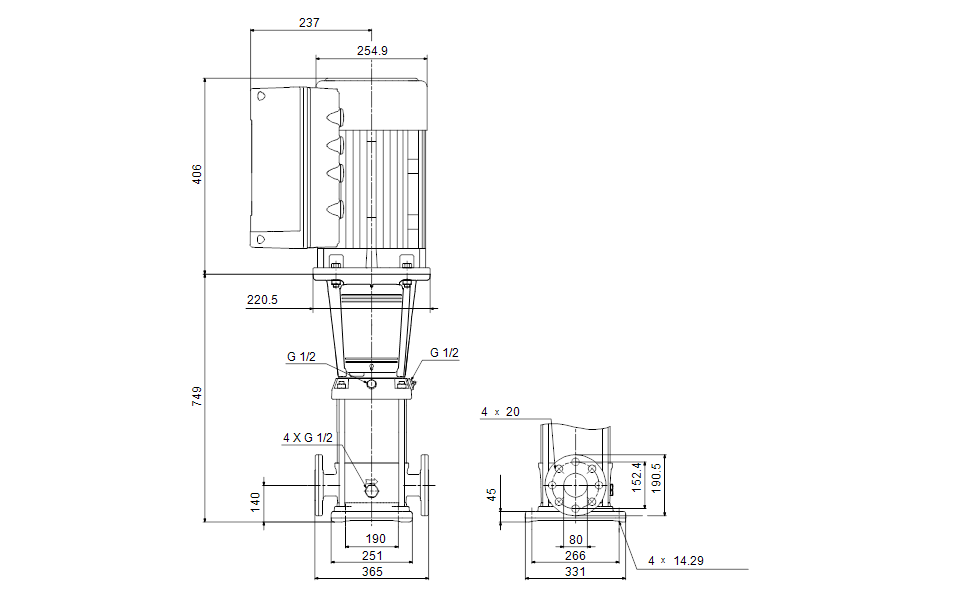

Dimensional Drawing

DWiring Diagram
