Grundfos 99406478 - CRNE 45-1 N-G-A-V-HQQV | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99406478

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99406478 - CRNE 45-1 N-G-A-V-HQQV is a vertical, inline multistage stainless steel centrifugal pump intended for industrial fluid handling and high-pressure applications. Technicians and maintenance teams use this model for system repairs and performance upgrades.

Key features

  • Vertical, inline multistage design for compact, space-saving installations
  • Stainless steel construction suitable for corrosive or hygienic environments
  • Provides reliable high-pressure pumping performance for boosted system efficiency

Applications

Typical uses include industrial process boosting, boiler feed, water circulation, and high-pressure transfer in commercial and light industrial systems.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99406478

EAN 5713828595003
Actual impeller diameter 5.37 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection ELEC
Code for rubber V
Code for shaft seal HQQV
Config. file no 99074321
Connect code G
Connection PN 16
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.37 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 245.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum head 126.6 ft
Maximum operating pressure 16 bar
Model B
Motor 213TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 132F
Net weight 227.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.91-0.90
Pressure rating for connection PN 16
Pressure sensor Y
Pump 7.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version N
Pumped liquid Water
Rated current 12.4-11.5 A
Rated flow 238 US gpm
Rated head 92.2 ft
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 1
Standard NEMA
Support bearing Graflon
Type 132F
Type of connection ANSI
Version N

Motor Curves

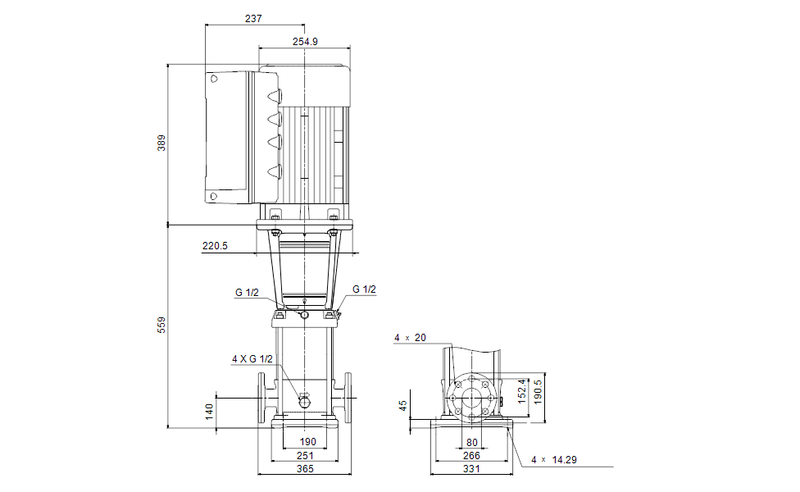

Dimensional Drawing

DWiring Diagram
