Grundfos 99762459 - CRNE 32-4-2 A-G-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99762459

Price:
Sale price$24,645.83
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99762459 - CRNE 32-4-2 A-G-A-E-HQQE Vertical Multistage Inline Pump

The Grundfos 99762459 - CRNE 32-4-2 A-G-A-E-HQQE is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This stainless steel pump features a robust construction that ensures durability and resistance to corrosion, making it suitable for demanding environments. With its multistage design, the CRNE 32-4-2 A-G-A-E-HQQE delivers superior performance, providing consistent flow rates and pressure even in challenging conditions.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble locating the right item, our team is here to help you find the perfect solution for your needs.

EAN 5713833935474
Approvals CE
Approvals for drinking water ACS
Bearing 1 Graflon
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99059288
Connect code G
Connection PN 16
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor FF265
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 308.0 lb
IE efficiency 0.925
IE Efficiency class IE5
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 230.7 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF265
Motor efficiency at full load 1 0.925
Motor standard IEC
Motor type 132SF
Net weight 235.0 lb
Number of reduced-diameter impellers 2
Power (P2) required by pump 7.5 kW
Power factor 1 0.93-0.89
Pressure rating for connection PN 16
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version A
Pumped liquid Water
Rated current 14.1-11.2 A
Rated flow 132 US gpm
Rated head 174.2 ft
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 4
Standard IEC
Support bearing Graflon
Type 132SF
Type of connection ANSI
Version A

Motor Curves

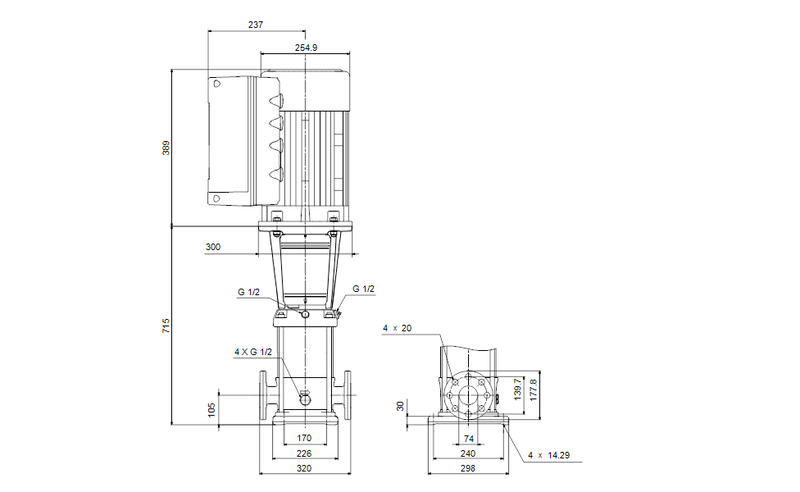

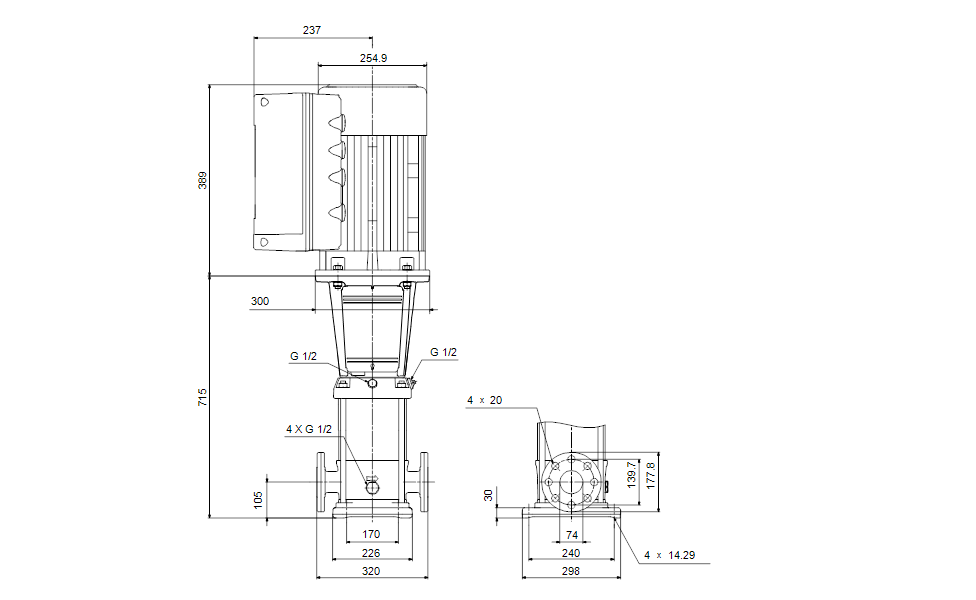

Dimensional Drawing

DWiring Diagram
