Grundfos 98389934 - CRNE 3-8 N-FGJ-A-V-HQQV | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 98389934

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

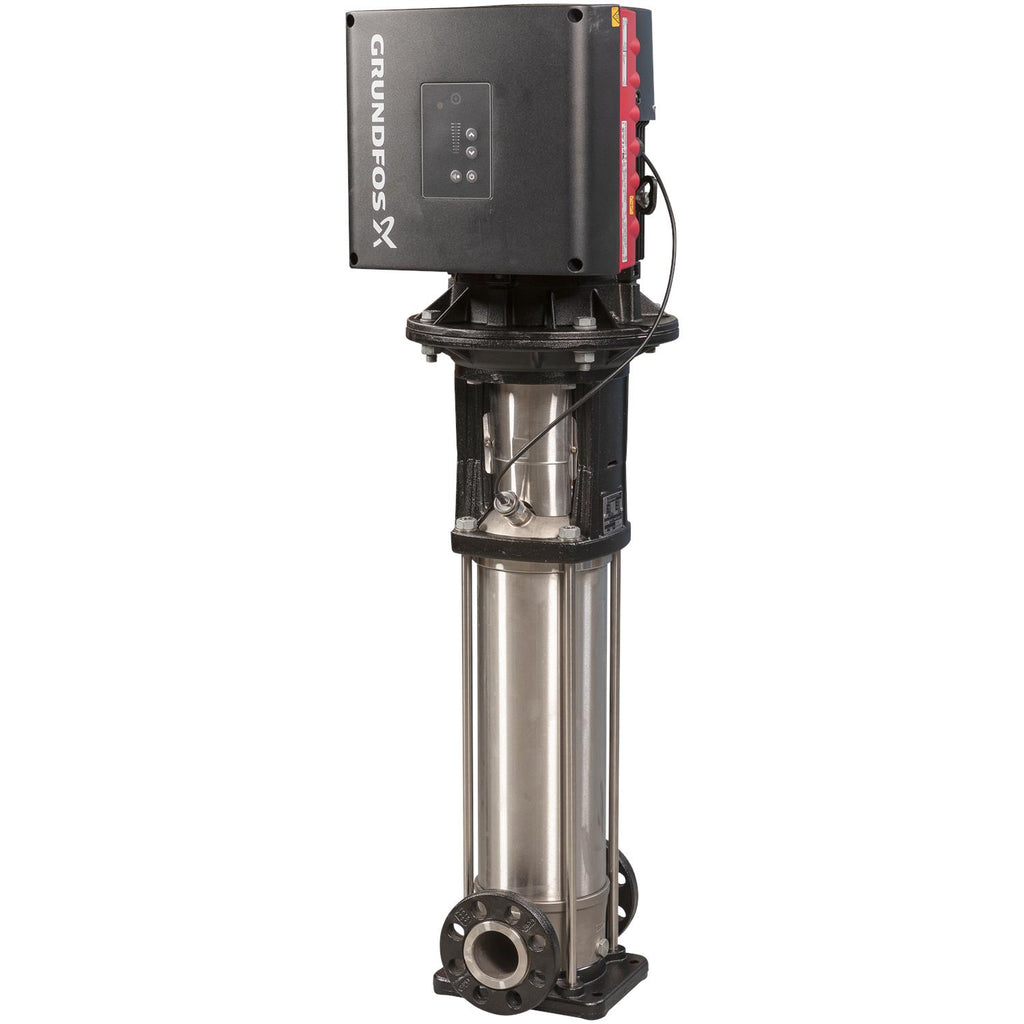

Grundfos 98389934 - CRNE 3-8 N-FGJ-A-V-HQQV Vertical Multistage Inline Pump

The Grundfos 98389934 - CRNE 3-8 N-FGJ-A-V-HQQV is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by Grundfos, this stainless steel pump is engineered for durability and efficiency, making it an ideal choice for high-pressure and demanding environments.

With its advanced design, the CRNE series offers exceptional reliability and performance, ensuring optimal fluid handling in various settings. This pump is suitable for both commercial and industrial use, providing a versatile solution for your pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5711494187171
Applications Industrial applications
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber V
Code for shaft seal HQQV
Config. file no 98498702
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor FT100
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 67.3 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum head 242.5 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.869
Motor standard IEC
Motor type 80B
Net weight 60.9 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.99
Pressure rating for connection PN 25
Pressure sensor Y
Product family CRNE 3
Pump 1.1 kW
Pump speed on which pump data are based 3350 rpm
Pump version N
Pumped liquid Water
Rated current 6.70-5.60 A
Rated flow 15.4 US gpm
Rated head 171.9 ft
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 8
Standard IEC
Terminal box position 6
Type 80B
Type of connection DIN / ANSI / JIS
Version N

Motor Curves

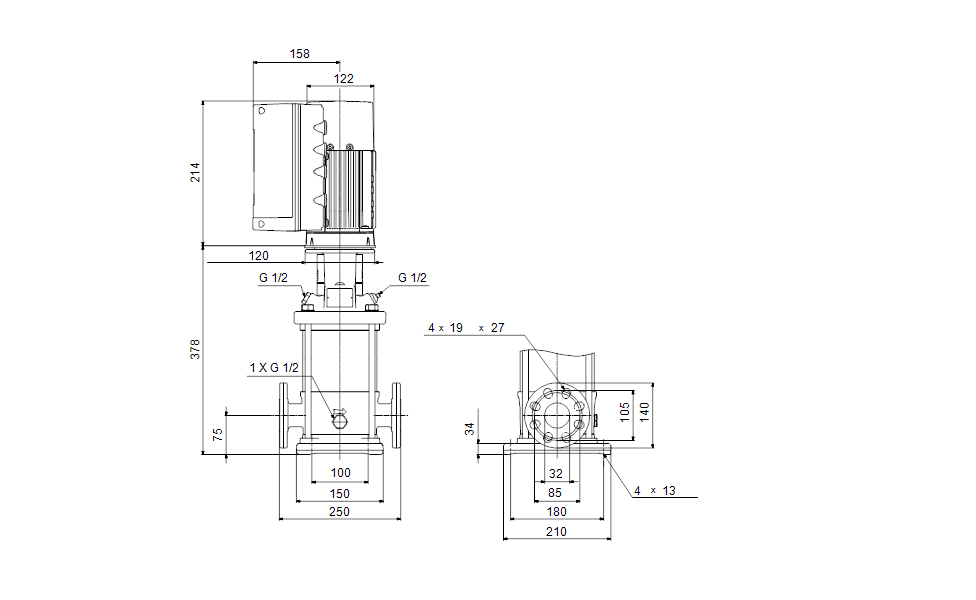

Dimensional Drawing

DWiring Diagram
