Grundfos 92802492 - CRNE 3-5 N-CX-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 92802492

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

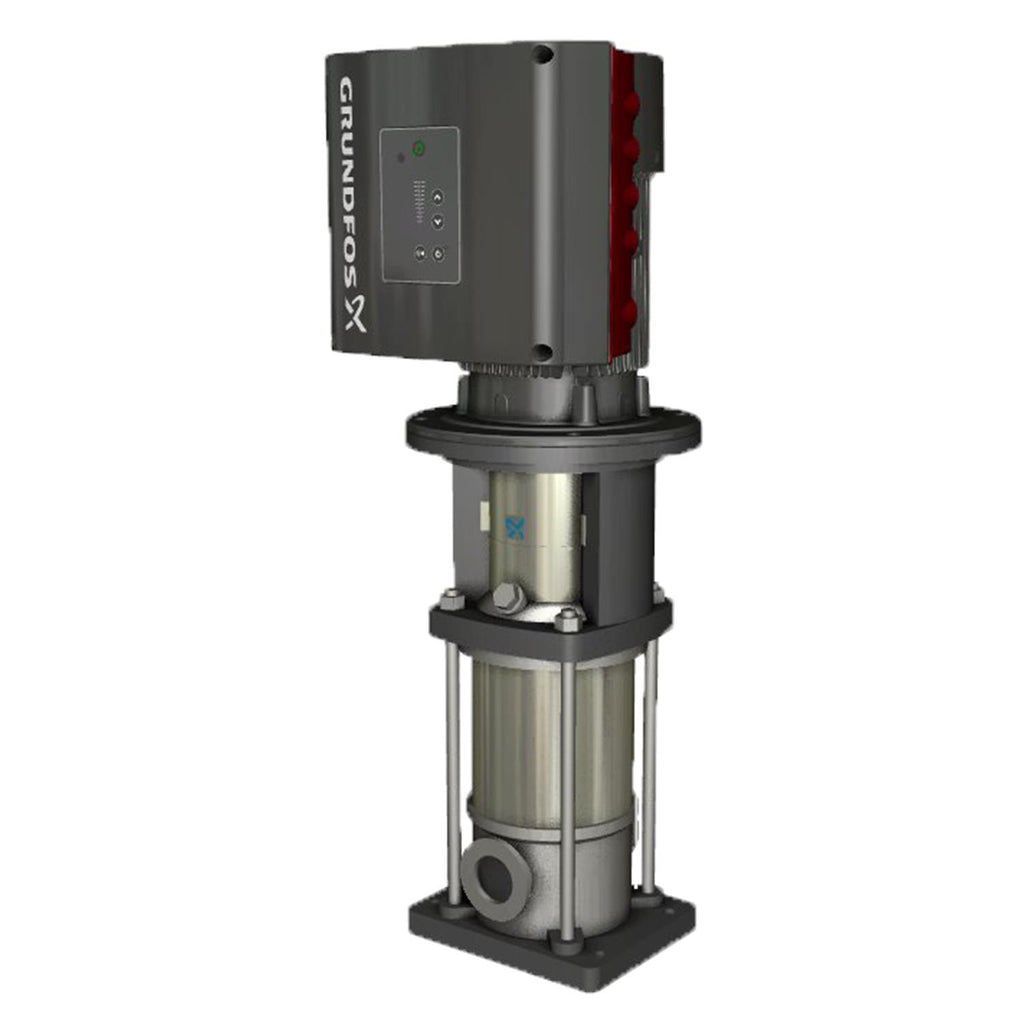

Grundfos 92802492 - CRNE 3-5 N-CX-A-E-HQQE Vertical Multistage Inline Pump

The Grundfos 92802492 - CRNE 3-5 N-CX-A-E-HQQE is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

Constructed from durable stainless steel, the CRNE 3-5 N-CX-A-E-HQQE offers exceptional resistance to corrosion and wear, ensuring a long service life even in demanding environments. Its multistage design allows for increased pressure capabilities, making it suitable for applications that require consistent and reliable performance.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our experts are here to help!

Explore the efficiency and reliability of the Grundfos CRNE 3-5 N-CX-A-E-HQQE and elevate your pumping solutions today!

EAN 5715119807116
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498747
Connect code CX
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor FT100
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 57.3 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 156.5 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT100
Motor efficiency at full load 1 0.859
Motor standard IEC
Motor type 80A
Net weight 50.9 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.83-0.67
Pressure rating for connection PN 25
Pressure sensor Y
Pump 0.75 kW
Pump speed on which pump data are based 3474 rpm
Pump version N
Pumped liquid Water
Rated current 1.70-1.60 A
Rated flow 15.4 US gpm
Rated head 116.8 ft
Rated power - P2 0.75 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 5
Standard IEC
Type 80A
Type of connection TriClamp
Version N

Motor Curves

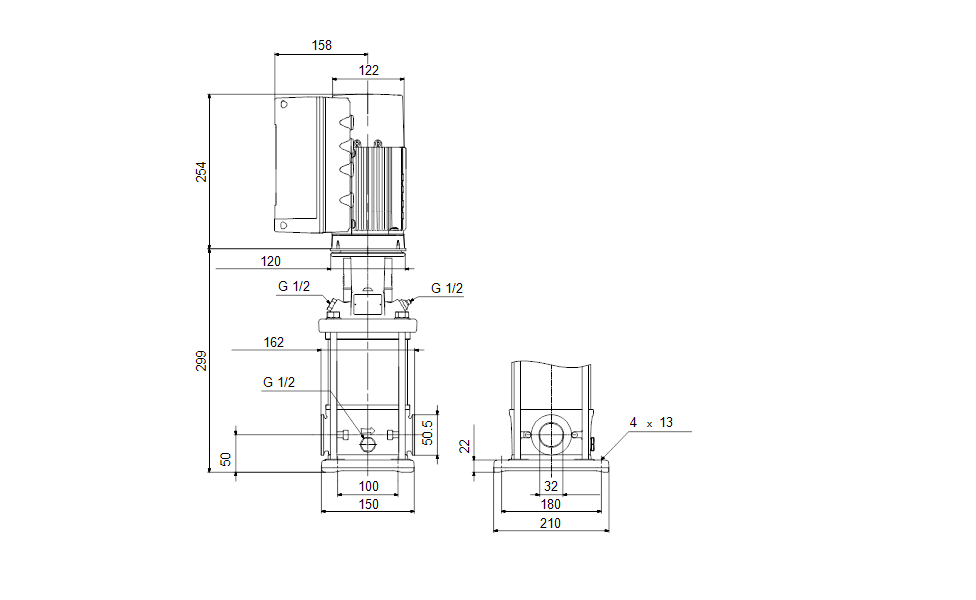

Dimensional Drawing

DWiring Diagram
