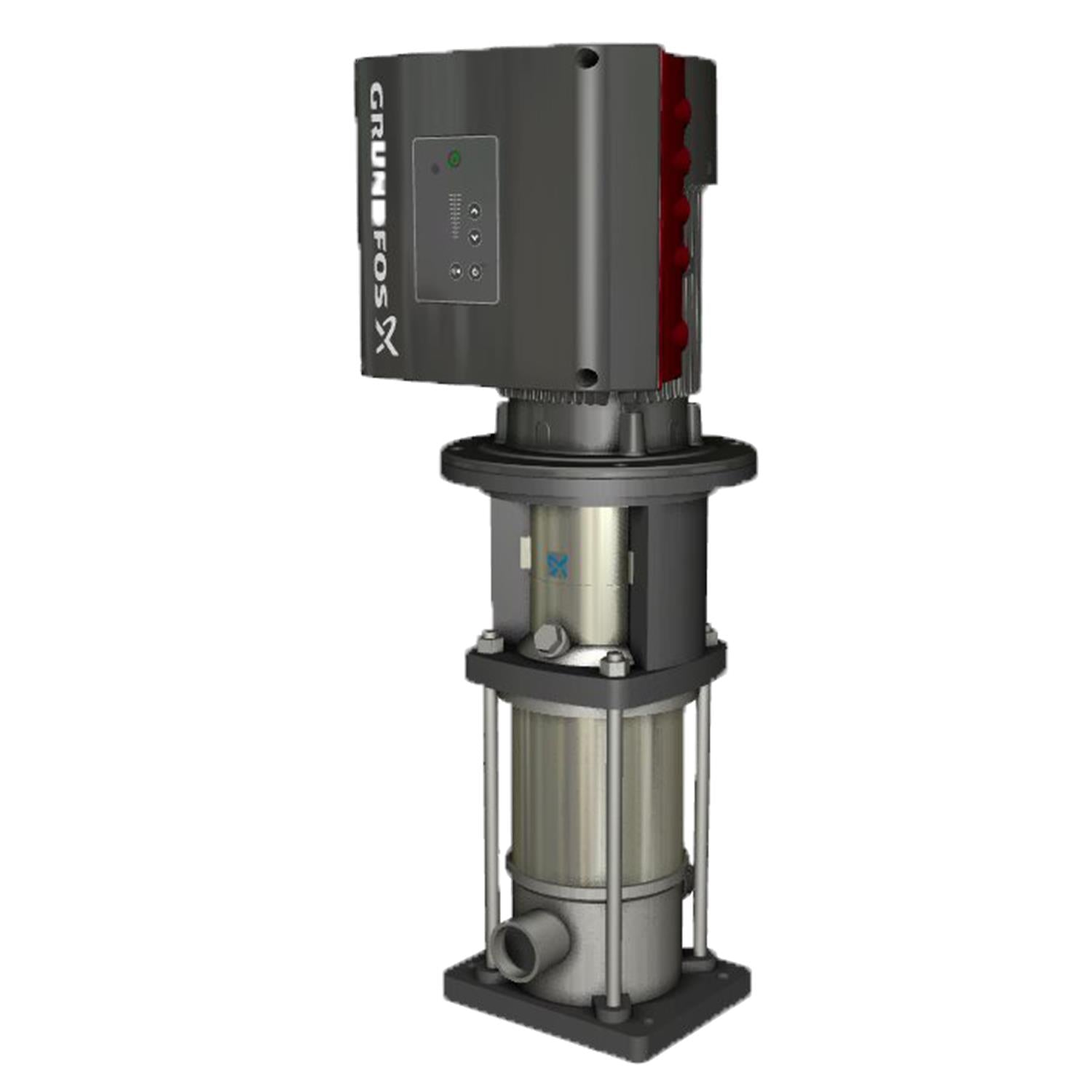

![Grundfos 99720364 - CRNE 3-25 BN-P-A-E-HQQE]()
![Grundfos 99720364 - CRNE 3-25 BN-P-A-E-HQQE]()
![Grundfos 99720364 - CRNE 3-25 BN-P-A-E-HQQE]()
![Grundfos 99720364 - CRNE 3-25 BN-P-A-E-HQQE]()
![Grundfos 99720364 - CRNE 3-25 BN-P-A-E-HQQE]()
![Grundfos 99720364 - CRNE 3-25 BN-P-A-E-HQQE]()
Description
Grundfos 99720364 - CRNE 3-25 BN-P-A-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713833366872
Material Pricing Group
31
Motor efficiency at full load 1
0.922
IE Efficiency class
IE5
Code for rubber
E
Maximum ambient temperature
122 °F
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 250 °F
Maximum operating pressure
25 bar
Size of inlet connection
DN 32
Power factor 1
0.92-0.87
Selected liquid temperature
68 °F
Type of connection
PJE
Rated voltage
3 x 380-500 V
Flange size for motor
FT130
Pumped liquid
Water
Size of outlet connection
DN 32
Connect code
P
Liquid temperature range
-4 .. 248 °F
Mains frequency
50 / 60 Hz
Insulation class (IEC 85)
F
Built-in motor protection
ELEC
Net weight
111.0 lb
Rated speed
360-4000 rpm
Gross weight
158.0 lb
Rated power - P2
4 kW
Enclosure class (IEC 34-5)
IP55
Power (P2) required by pump
4 kW
Pressure rating for connection
PN 50
Rated current
7.60-6.20 A
Control panel
Graphical
Config. file no
99058868
Minimum efficiency index, MEI ≥
0.7
Frequency converter
Built-in
Motor type
112MC
Function Module
FM300 - Advanced
Pressure sensor
Y
Pump speed on which pump data are based
2899 rpm
Stages
25
Approvals
CE
Rated flow
13.2 US gpm
Model
A
Version
BN
Motor
FT130
Rubber
E
Maximum head
544.6 ft
Approvals for drinking water
WRAS
Motor standard
IEC
Rated head
400.3 ft
Type
112MC
Curve tolerance
ISO9906:2012 3B
Impellers
0
Connection
PN 50
Impeller
Stainless steel
Code for shaft seal
HQQE
Number of reduced-diameter impellers
0
Pump
4 kW
Low NPSH
N
Standard
IEC
Pump version
BN
