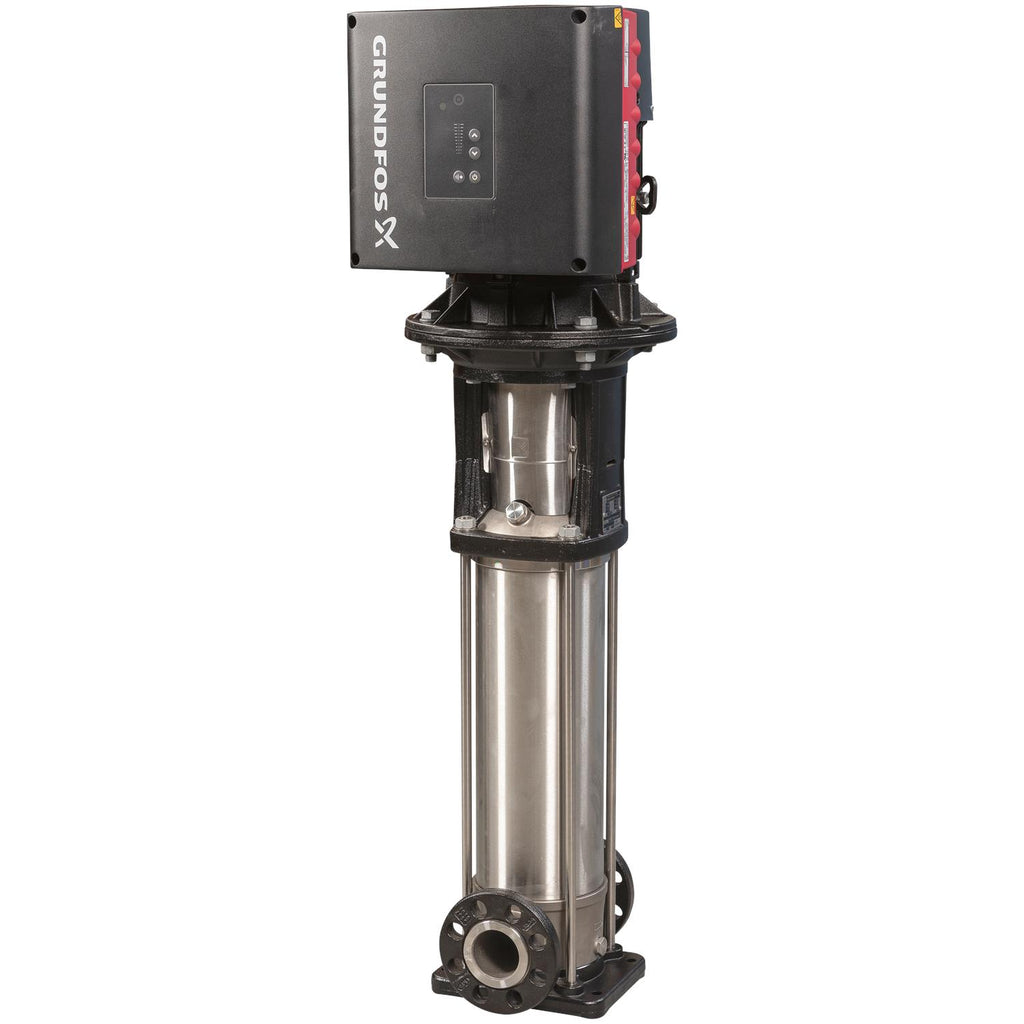

Grundfos 99072169 - CRNE 3-25 A-FGJ-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99072169

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99072169 - CRNE 3-25 A-FGJ-A-E-HQQE is a vertical, multistage inline stainless steel pump suited for industrial and commercial process systems. It’s intended for operators and maintenance teams needing high-pressure centrifugal performance in compact vertical installations.

Key features

  • Vertical multistage inline configuration for space-saving, high-head installations
  • Stainless steel construction and high-pressure capability for durability and corrosion resistance
  • Centrifugal design delivering reliable flow and pressure for continuous process use

Applications

Typical uses include high-pressure water transfer, boiler feed, industrial process pumping, HVAC and other applications requiring compact multistage boosting.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99072169

EAN 5712606205905
Applications Industrial applications
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99058854
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor FT130
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 163.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 790.4 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.922
Motor standard IEC
Motor type 112MC
Net weight 116.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Power factor 1 0.92-0.87
Pressure rating for connection PN 25
Pressure sensor N
Product family CRNE 3
Pump 4 kW
Pump speed on which pump data are based 3520 rpm
Pump version A
Pumped liquid Water
Rated current 7.60-6.20 A
Rated flow 15.4 US gpm
Rated head 602.4 ft
Rated power - P2 4 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 25
Standard IEC
Terminal box position 6
Type 112MC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

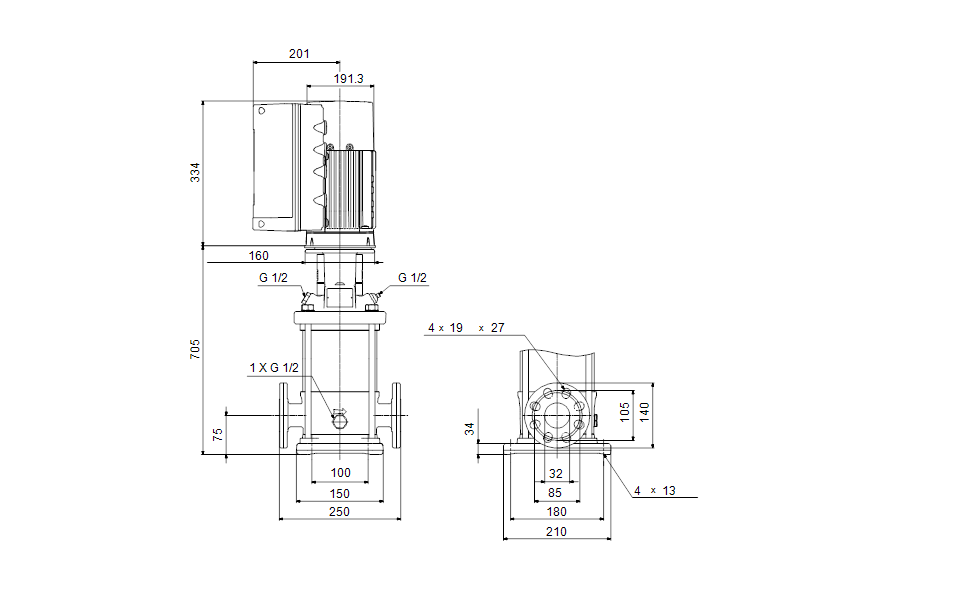

Dimensional Drawing

DWiring Diagram
