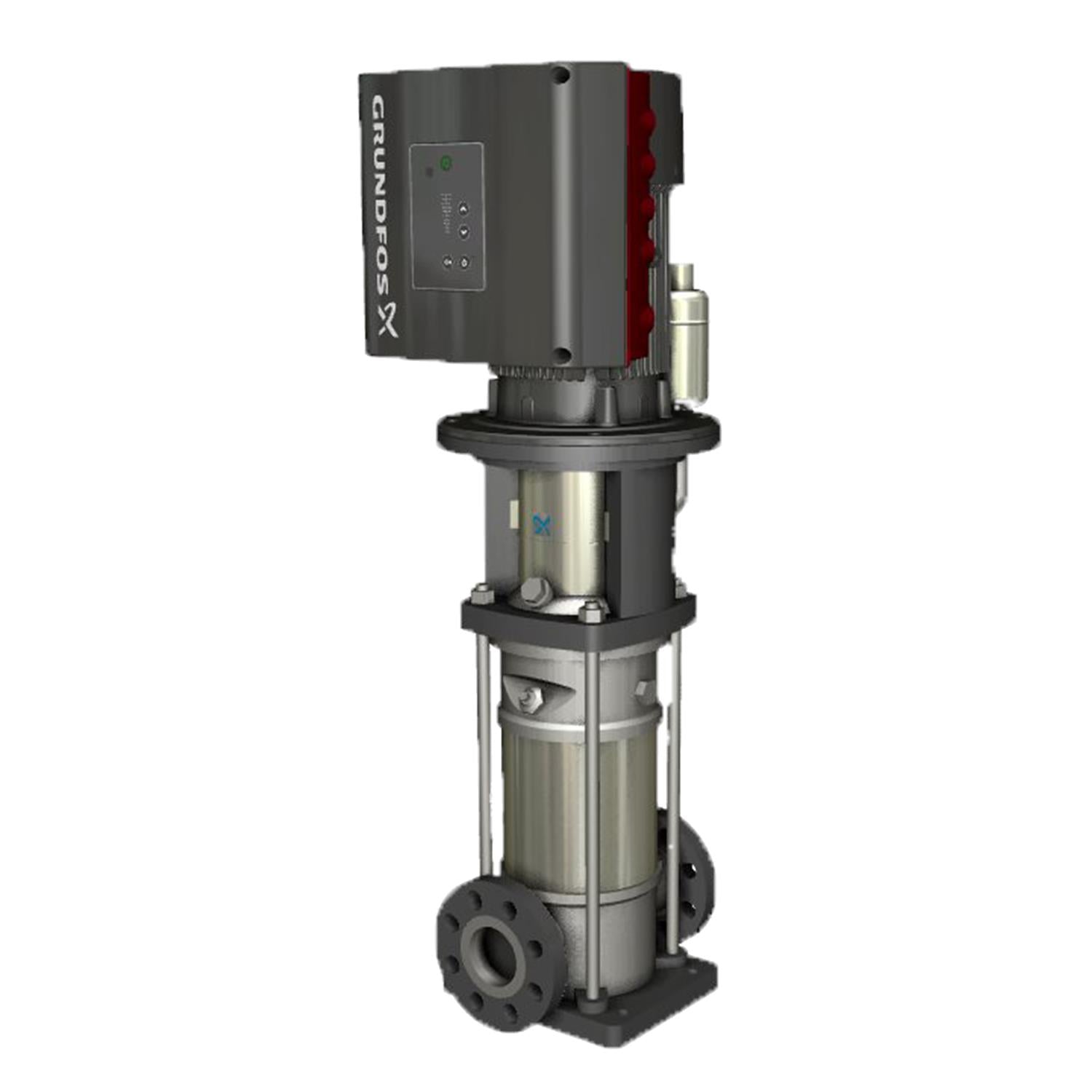

![Grundfos 99798371 - CRNE 3-23 FN-FGJ-A-F-HQQE]()
![Grundfos 99798371 - CRNE 3-23 FN-FGJ-A-F-HQQE]()
![Grundfos 99798371 - CRNE 3-23 FN-FGJ-A-F-HQQE]()
![Grundfos 99798371 - CRNE 3-23 FN-FGJ-A-F-HQQE]()
![Grundfos 99798371 - CRNE 3-23 FN-FGJ-A-F-HQQE]()
![Grundfos 99798371 - CRNE 3-23 FN-FGJ-A-F-HQQE]()
Description
Grundfos 99798371 - CRNE 3-23 FN-FGJ-A-F-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713834449741
Motor efficiency at full load 1
0.925
IE Efficiency class
IE5
Code for rubber
F
Maximum ambient temperature
122 °F
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 356 °F
Maximum operating pressure
25 bar
Size of inlet connection
DN 25/32
Power factor 1
0.90-0.88
Selected liquid temperature
68 °F
Type of connection
DIN / ANSI / JIS
Rated voltage
3 x 440-480 V
Flange size for motor
182TC
Pumped liquid
Water
Size of outlet connection
DN 25/32
Connect code
FGJ
Liquid temperature range
14 .. 356 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Built-in motor protection
ELEC
Net weight
136.0 lb
Rated speed
360-4000 rpm
Gross weight
154.0 lb
Rated power - P2
3.7 kW
Enclosure class (IEC 34-5)
IP55
Power (P2) required by pump
3.7 kW
Pressure rating for connection
PN 25
Rated current
6.20-5.80 A
Service factor
1.15
Control panel
Graphical
Config. file no
99074108
Frequency converter
Built-in
Motor type
112C
Function Module
FM300 - Advanced
Pressure sensor
Y
Pump speed on which pump data are based
3461 rpm
Stages
23
Approvals
CURUS
Rated flow
15.4 US gpm
Model
A
Version
FN
Motor
182TC
Rubber
F
Maximum head
724.1 ft
Motor standard
NEMA
Rated head
544 ft
Type
112C
Curve tolerance
ISO9906:2012 3B
Impellers
0
Connection
PN 25
Impeller
Stainless steel
Code for shaft seal
HQQE
Number of reduced-diameter impellers
0
Flange rating inlet
300 lb
Pump
3.7 kW
Low NPSH
N
Standard
NEMA
Pump version
FN
