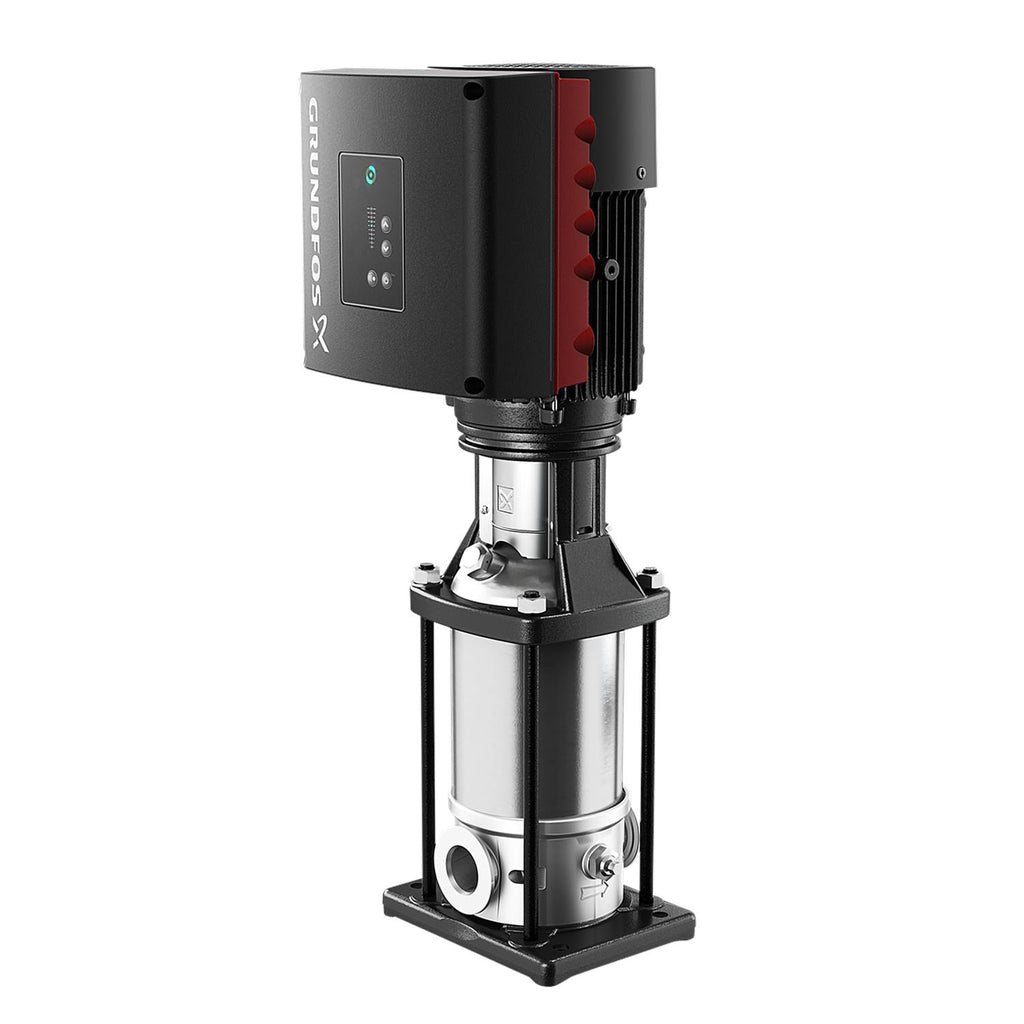

Grundfos 99070906 - CRNE 3-23 Q-P-T-V-HQQV | Multistage | SelfPriming | Centrifugal | Vertical | Horizontal

GRUNDFOSSKU: 99070906

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRNE 3-23 Q-P-T-V-HQQV | Vertical, non-self-priming, high-pressure multistage centrifugal pump with suction and discharge ports on the same level (in-line) enabling installation in a horizontal one-pipe system. The chamber stack is turned upside-down to ensure that the shaft seal is not affected by the high pump discharge pressure. Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling and easy service and access. Power transmission is via a split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled, permanent-magnet, synchronous motor. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. Controls: Frequency converter:

EAN 5712606180455
Applications Industrial applications
Approvals CE
Approvals and markings 410.1 m
Battery back-up 410.1 m
Built-in motor protection ELEC
Code for rubber V
Code for shaft seal HQQV
Colour 410.1 m
Config. file no 99080698
Connect code P
Connection 1 1/4 inch
Control panel HMI300 - Advanced
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor FT130
Flow range 410.1 m
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 159.0 lb
Head max 410.1 m
Housing Stainless steel
IE Efficiency class IE5
Impeller Stainless steel
Impellers 23
Insulation class (IEC 85) F
Length 410.1 m
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code T
Material Pricing Group 31
Max pressure at stated temp 725 psi / 194 °F
Maximum ambient temperature 122 °F
Model A
Motor Standard motor size
Motor type 132F
Net weight 148.0 lb
Number of leads 410.1 m
Pipework connection 410.1 m
Power factor 1 0.91-0.90
Pressure retention valve 410.1 m
Product family CRNE 3-HS
Pump housing Stainless steel
Pump speed on which pump data are based 4800 rpm
Pump version Q
Pumped liquid Water
Rated current 12.5-11.6 A
Rated flow 22 US gpm
Rated head 1001 ft
Rated power - P2 7.5 kW
Rated speed 480-5900 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Sens.interface 410.1 m
Service factor 1.15
Size of connection 1 1/4 inch
Stages 23
Type 132F
Type of connection PJE
Valve type 410.1 m
Version Q

Motor Curves

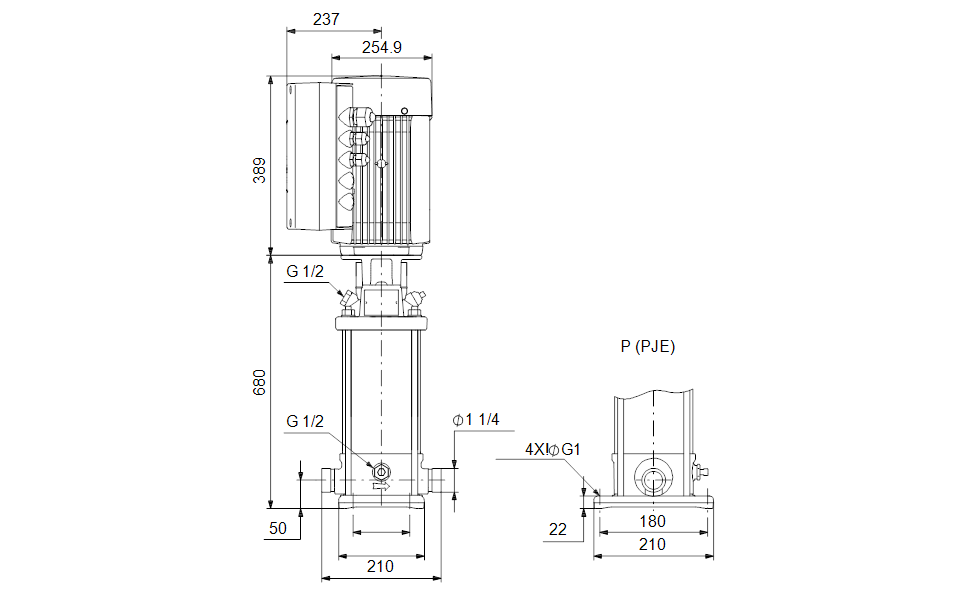

Dimensional Drawing
