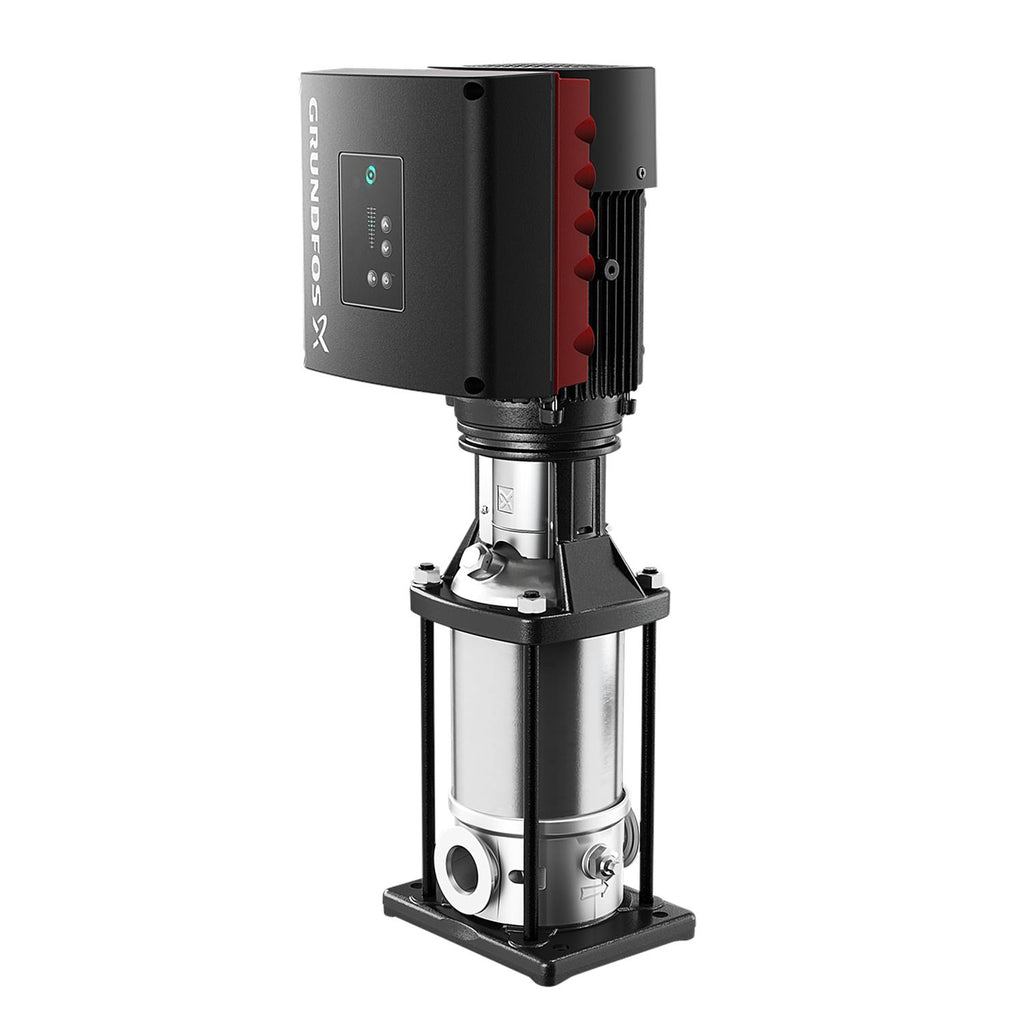

Grundfos 99070902 - CRNE 3-23 Q-P-T-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99070902

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99070902 CRNE 3-23 Q-P-T-E-HQQE is a vertical, multistage inline stainless steel pump suited for industrial and commercial fluid transfer. Contractors and plant maintenance teams use this pump where high-pressure, compact centrifugal performance is required.

Key features

  • Multistage centrifugal design for higher pressure in a compact inline package
  • Vertical orientation and stainless steel construction for space-saving installation and corrosion resistance
  • Precision-engineered for consistent flow and reliable operation in demanding systems

Applications

Suitable for boiler feed, high-pressure boosting, process circulation, and other industrial liquid-handling tasks where an inline vertical multistage pump is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99070902

EAN 5712606180417
Applications Industrial applications
Approvals CE
Approvals and markings 355.8 m
Battery back-up 355.8 m
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Colour 355.8 m
Config. file no 99080699
Connect code P
Connection 1 1/4 inch
Control panel HMI300 - Advanced
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor FT130
Flow range 355.8 m
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 137.0 lb
Head max 355.8 m
Housing Stainless steel
IE Efficiency class IE5
Impeller Stainless steel
Impellers 23
Insulation class (IEC 85) F
Length 355.8 m
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code T
Material Pricing Group 31
Max pressure at stated temp 725 psi / 250 °F
Maximum ambient temperature 122 °F
Model A
Motor Standard motor size
Motor type 132E
Net weight 126.0 lb
Number of leads 355.8 m
Pipework connection 355.8 m
Power factor 1 0.91-0.89
Pressure retention valve 355.8 m
Product family CRNE 3-HS
Pump housing Stainless steel
Pump speed on which pump data are based 4500 rpm
Pump version Q
Pumped liquid Water
Rated current 9.40-8.60 A
Rated flow 22 US gpm
Rated head 814 ft
Rated power - P2 5.5 kW
Rated speed 480-5900 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Sens.interface 355.8 m
Service factor 1.15
Size of connection 1 1/4 inch
Stages 23
Type 132E
Type of connection PJE
Valve type 355.8 m
Version Q

Motor Curves

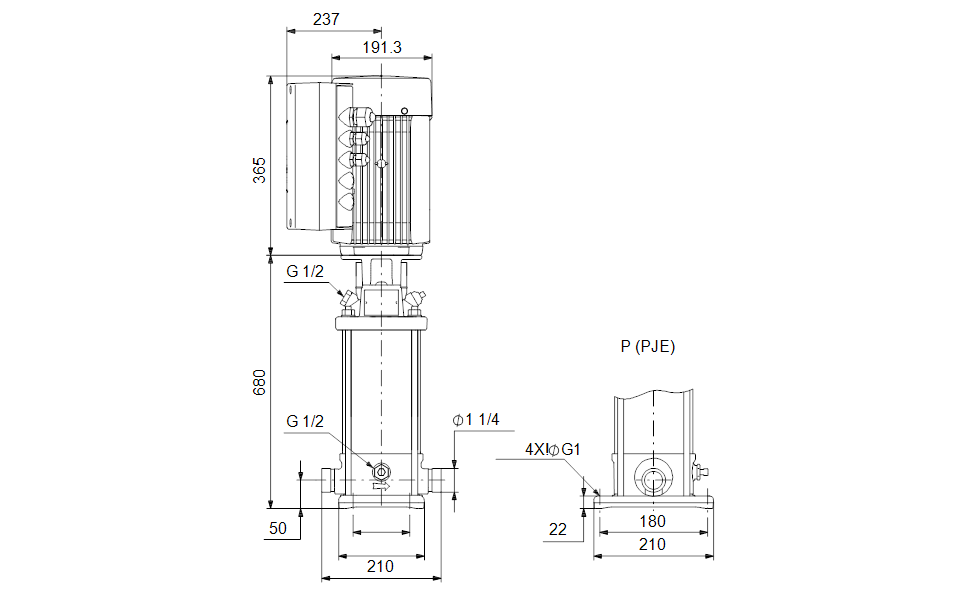

Dimensional Drawing

DWiring Diagram
