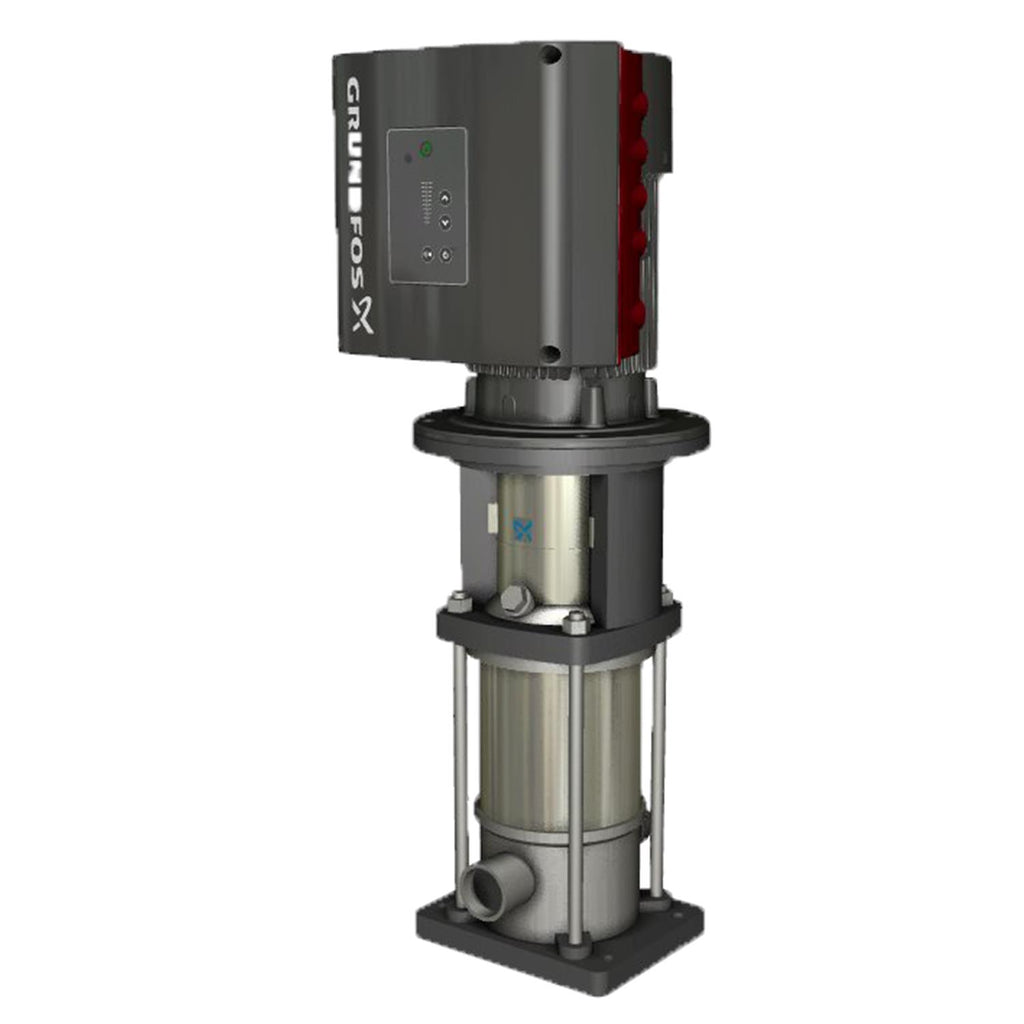

Grundfos 99492690 - CRNE 3-2 A-P-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99492690

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 99492690 CRNE 3-2 A-P-A-E-HQQE is a stainless steel, multistage inline vertical centrifugal pump suited for industrial fluid transfer and process systems. It is designed for users needing compact, high-pressure pumping in plant or service environments.

Key features

  • Stainless steel construction for corrosion resistance and durability
  • Vertical, inline multistage design for high-pressure performance and space-saving installation
  • Delivers reliable pressure boosting and smooth flow for pumping systems

Applications

Common uses include industrial process water supply, boiler feed, high-pressure cleaning, and pressure boosting in commercial and light industrial facilities.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99492690

EAN 5713829984998
Approvals CURUS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498866
Connect code P
Connection PN 50
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 60.5 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 61.68 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.84
Motor standard NEMA
Motor type 71A
Net weight 49.5 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Power factor 1 0.96
Pressure rating for connection PN 50
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 3436 rpm
Pump version A
Pumped liquid Water
Rated current 2.40-2.10 A
Rated flow 15.4 US gpm
Rated head 44.95 ft
Rated power - P2 0.37 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 3
Standard NEMA
Type 71A
Type of connection PJE
Version A

Motor Curves

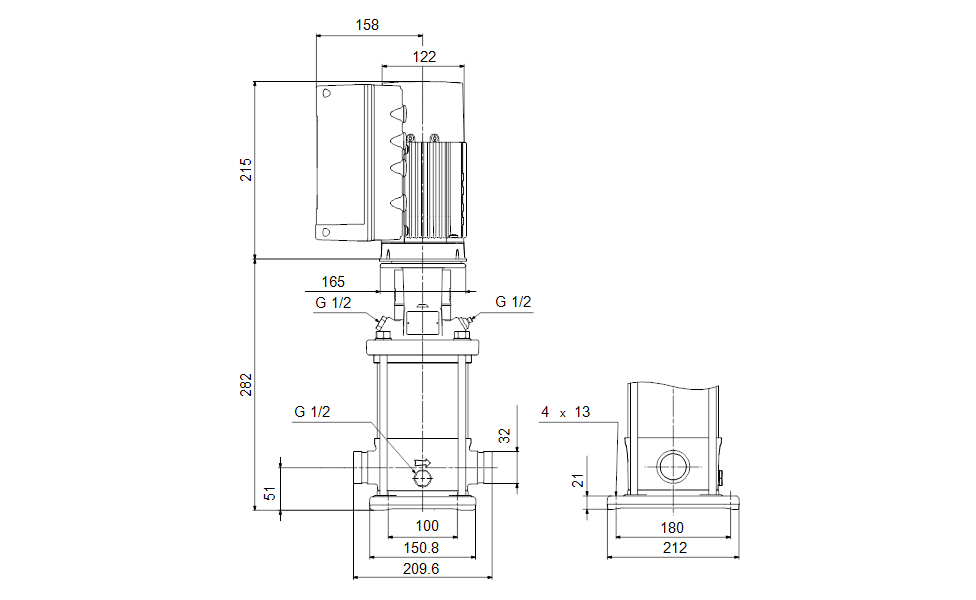

Dimensional Drawing
