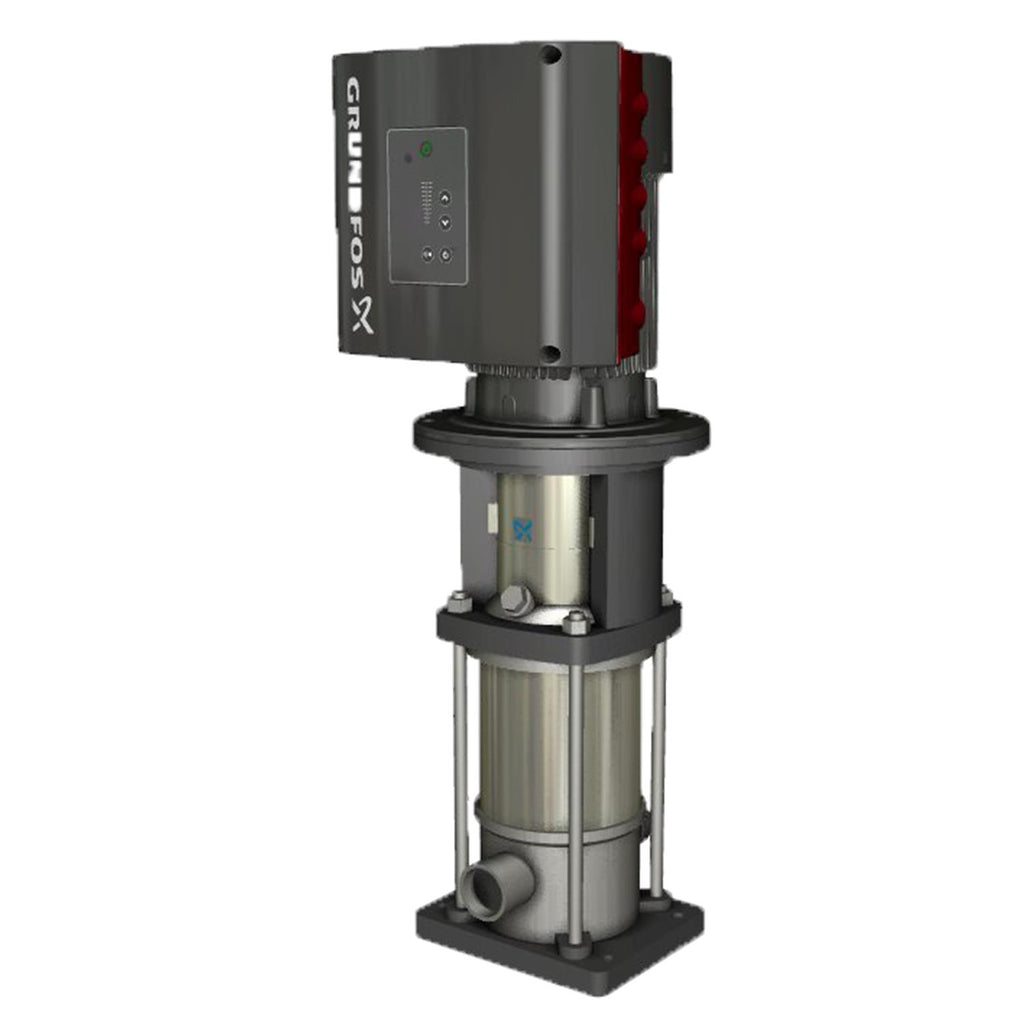

Grundfos 92588819 - CRNE 3-17 N-P-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 92588819

Price:
Sale price$11,598.61
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92588819 is a CRNE 3-17 N-P-A-E-HQQE vertical, multistage inline centrifugal pump designed for industrial fluid transfer and high-pressure boosting used by maintenance, service technicians, and facilities teams.

Key features

  • Stainless steel construction for corrosion resistance and durability
  • Multistage inline design suitable for high-pressure centrifugal applications
  • Compact vertical footprint that saves space and simplifies system integration

Applications

Typical uses include boiler feed, pressure boosting, water transfer, and process circulation in commercial and light industrial systems where a compact, high-pressure inline pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92588819

EAN 5715116709857
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498999
Connect code P
Connection PN 50
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 96.3 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 533.5 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.907
Motor standard NEMA
Motor type 90D
Net weight 81.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.89
Pressure rating for connection PN 50
Pressure sensor Y
Pump 2.2 kW
Pump speed on which pump data are based 3461 rpm
Pump version N
Pumped liquid Water
Rated current 3.8 A
Rated flow 15.4 US gpm
Rated head 397 ft
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 17
Standard NEMA
Type 90D
Type of connection PJE
Version N

Motor Curves

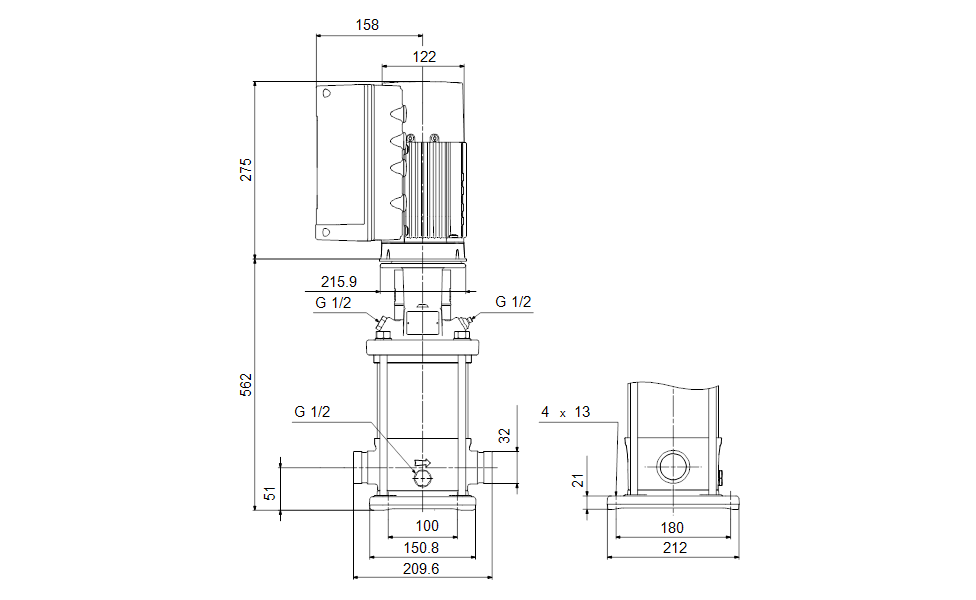

Dimensional Drawing

DWiring Diagram
