Grundfos 98389954 - CRNE 3-11 N-P-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 98389954

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98389954 - CRNE 3-11 N-P-A-E-HQQE Vertical Multistage Inline Pump

The Grundfos 98389954 - CRNE 3-11 N-P-A-E-HQQE is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for high-pressure and multi-stage pumping needs.

Constructed from durable stainless steel, the CRNE series ensures longevity and resistance to corrosion, making it suitable for demanding environments. Its inline design allows for easy installation and integration into existing systems, while the multistage configuration provides enhanced pressure capabilities.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5711494187867
Applications Industrial applications
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498755
Connect code P
Connection PN 50
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor FT115
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 69.8 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 23
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 345.5 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.889
Motor standard IEC
Motor type 90SC
Net weight 63.4 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.92-0.85
Pressure rating for connection PN 50
Pressure sensor Y
Product family CRNE 3
Pump 1.5 kW
Pump speed on which pump data are based 3501 rpm
Pump version N
Pumped liquid Water
Rated current 2.90-2.40 A
Rated flow 15.4 US gpm
Rated head 259.9 ft
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 11
Standard IEC
Terminal box position 6
Type 90SC
Type of connection PJE
Version N
Danish VVS No. 385951511

Motor Curves

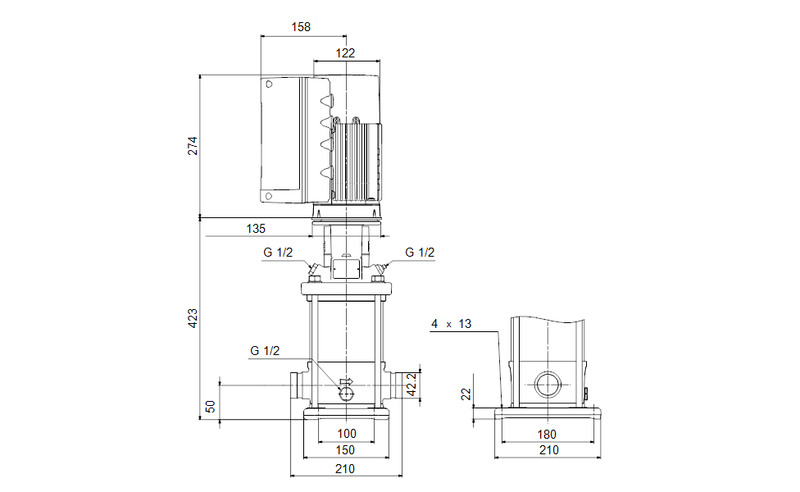

Dimensional Drawing

DWiring Diagram
