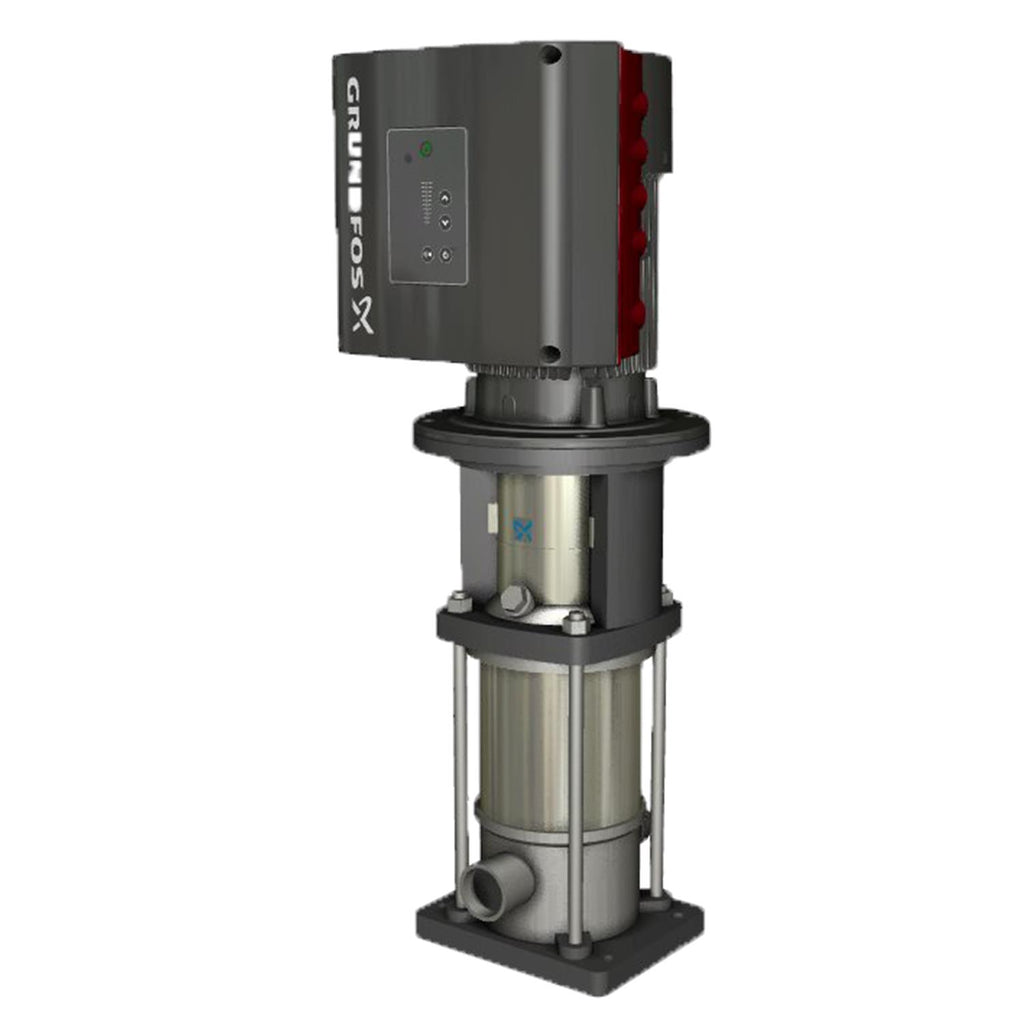

Grundfos 99746250 - CRNE 3-10 N-P-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99746250

Price:
Sale price$9,420.83
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99746250 - CRNE 3-10 N-P-A-E-HQQE is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This stainless steel pump features a robust construction that ensures durability and resistance to corrosion, making it suitable for demanding environments. With its advanced design, the CRNE 3-10 N-P-A-E-HQQE delivers exceptional performance while maintaining low energy consumption, helping you save on operational costs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our team is here to help you find the perfect solution for your needs.

EAN 5713833706487
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99304157
Connect code P
Connection PN 50
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 147.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 312.7 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.889
Motor standard NEMA
Motor type 90C
Net weight 63.4 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.92
Pressure rating for connection PN 50
Pressure sensor Y
Pump 1.5 kW
Pump speed on which pump data are based 3452 rpm
Pump version N
Pumped liquid Water
Rated current 5.40-4.60 A
Rated flow 15.4 US gpm
Rated head 230.7 ft
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 10
Standard NEMA
Type 90C
Type of connection PJE
Version N

Motor Curves

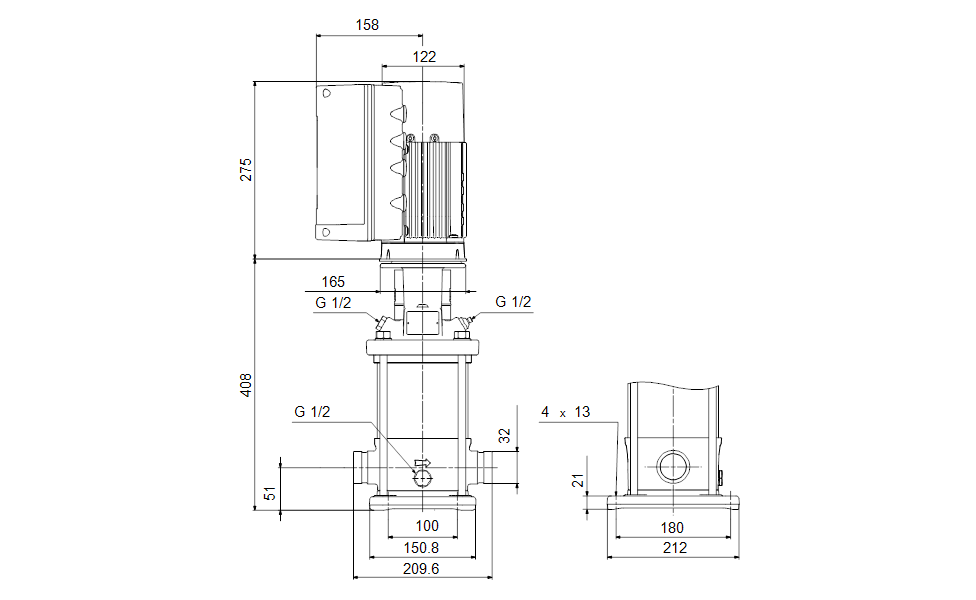

Dimensional Drawing

DWiring Diagram
