Grundfos 98183550 - CRNE 20-8 N-P-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

Save $9,914.40
GRUNDFOSSKU: 98183550

Price:
Sale price$10,740.60 Regular price$20,655.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98183550 - CRNE 20-8 N-P-A-E-HQQE Vertical Multistage Inline Pump

The Grundfos 98183550 - CRNE 20-8 N-P-A-E-HQQE is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is ideal for high-pressure and efficient fluid transfer.

Constructed from durable stainless steel, the CRNE series ensures longevity and reliability in demanding environments. Its multistage design allows for increased pressure capabilities, making it suitable for various applications including water supply, heating, and cooling systems.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

Explore the efficiency and reliability of the Grundfos CRNE series and experience superior performance in your industrial operations.

EAN 5711491087115
Applications Industrial applications
Actual impeller diameter 4.13 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection YES
Code for rubber E
Code for shaft seal HQQE
Config. file no 95139702
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.46
Enclosure class (IEC 34-5) IP55
Flange size for motor 254TC
Frequency converter Built-in
Function Module ADVANCED I/O
Gross weight 496.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 557.8 ft
Maximum operating pressure 25 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type 160AB
Net weight 384.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.89
Pressure rating for connection PN 50
Pressure sensor Y
Product family CRNE 20
Pump 15 kW
Pump speed on which pump data are based 3497 rpm
Pump version N
Pumped liquid Water
Rated current 26 A
Rated flow 111 US gpm
Rated head 442.9 ft
Rated power - P2 15 kW
Rated speed 480-3540 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 8
Standard NEMA
Terminal box position 6
Type 160AB
Type of connection PJE
Version N

Motor Curves

Dimensional Drawing

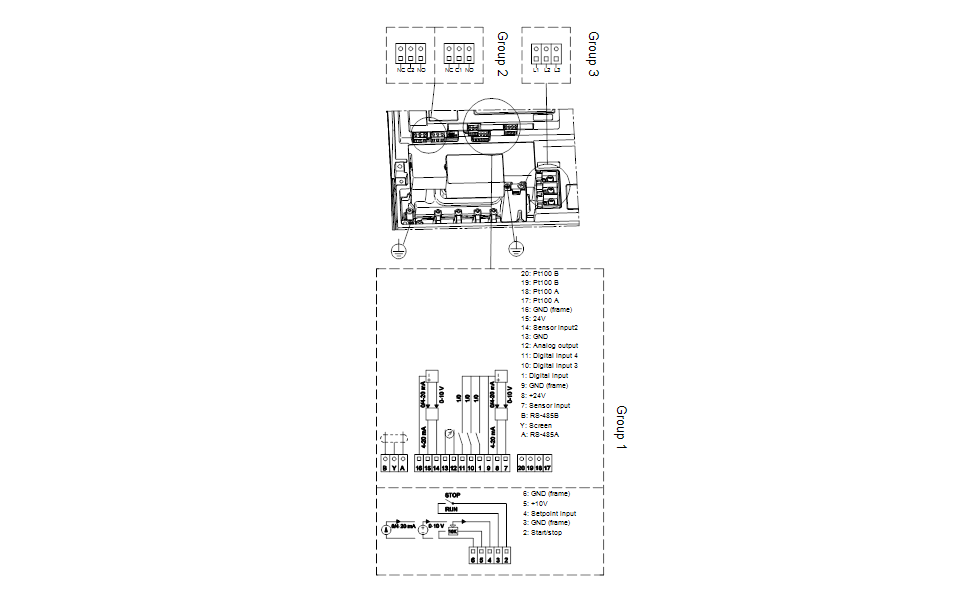

DWiring Diagram
