Grundfos 98963740 - CRNE 1S-9 N-FGJ-H-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 98963740

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos replacement CRNE 1S-9 N-FGJ-H-E-HQQE vertical multistage inline pump designed for industrial and commercial fluid-handling installations. The stainless steel construction and inline multistage layout suit systems requiring compact high-pressure pumping.

Key features

  • Manufactured for industrial applications and configured as a CRNE series replacement unit
  • Tags indicate use as an inline, vertical, high-pressure multistage centrifugal pump
  • Stainless steel construction provides corrosion resistance and long service life in demanding environments

Applications

Typical uses include boiler feed, high-pressure water transfer, process water systems, and other high-pressure inline multistage duties where compact vertical installation is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98963740

EAN 5712604341896
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98502581
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor FT85
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 63.2 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code H
Material Pricing Group 91
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 254.3 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.54
Model A
Motor FT85
Motor efficiency at full load 1 0.859
Motor standard IEC
Motor type 71A
Net weight 56.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Power factor 1 0.77-0.61
Pressure rating for connection PN 25
Pressure sensor Y
Pump 0.55 kW
Pump speed on which pump data are based 3447 rpm
Pump version N
Pumped liquid Water
Rated current 1.35-1.30 A
Rated flow 4.84 US gpm
Rated head 193.3 ft
Rated power - P2 0.55 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 9
Standard IEC
Type 71A
Type of connection DIN / ANSI / JIS
Version N

Motor Curves

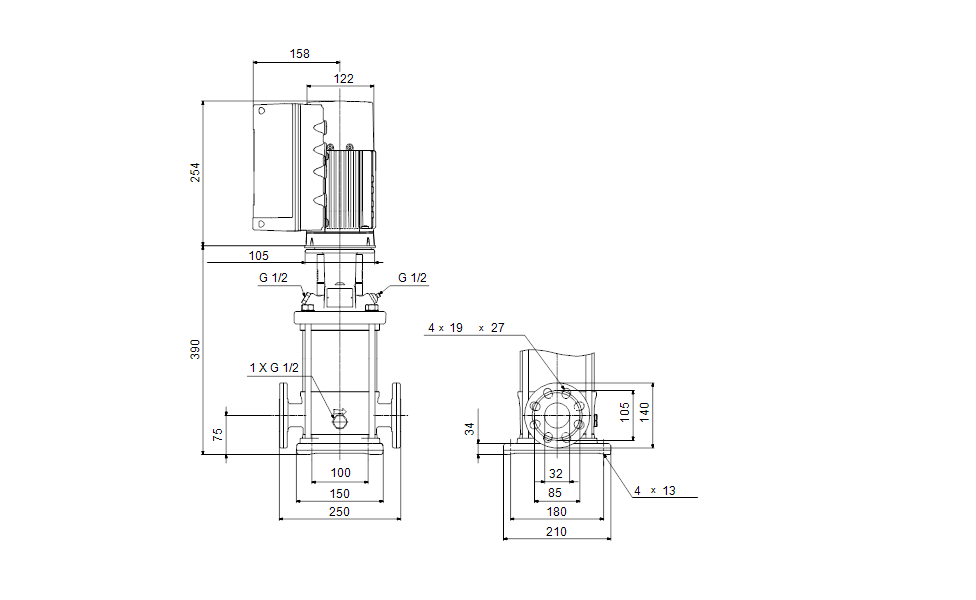

Dimensional Drawing

DWiring Diagram
