Grundfos 92737604 - CRNE 15-9 Y-FGJ-H-K-HUBK | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 92737604

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRNE 15-9 Y-FGJ-H-K-HUBK · Vertical Multistage Centrifugal Pump — All Stainless Variable Speed
CRNE10HP380-500V3.0-Phase50, 60 HzIE5IP55Stainless steel

The Grundfos 92737604 (CRNE 15-9 Y-FGJ-H-K-HUBK) is a Vertical Multistage Centrifugal Pump — All Stainless Variable Speed. All stainless steel construction with integrated variable frequency drive. Variable speed and full stainless for demanding chemical or food-grade applications. Nominal performance: 79.6US gpm at 316.2ft. Rated 380-500V, 3.0-Phase, 50, 60 Hz.

Power
10HP
Voltage
380-500V
Phase
3.0-Phase
Max Flow
79.6US gpm
Max Head
316.2ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Variable Speed Plus All Stainless

CRNE combines IE5 variable speed with 316 stainless steel wetted construction — the full specification for demanding chemical, food, and pharmaceutical pressure systems.

IE5 Permanent Magnet Motor

Highest efficiency class motor reduces operating cost. Especially effective in pressure systems that spend most runtime below maximum flow.

Integrated Drive — No Cabinet Required

VFD is inside the pump head. Eliminates separate drive panel, reduces installation footprint, and simplifies commissioning.

All Stainless Steel Wetted Path

Every surface in contact with the fluid is EN 1.4401 (316) stainless. Suitable for chlorinated water, mild acids, cleaning agents, and process chemicals.

iSOLUTIONS Connectivity

Supports MODBUS, PROFIBUS, BACnet, and Grundfos GO for full BMS integration and remote performance monitoring.

Cartridge Seal — No Adjustment

Factory-set cartridge seal. No field adjustment on installation. Seal variants available for water, chemical, and high-temperature service.

Model Information — CRNE 15-9 Y-FGJ-H-K-HUBK
Series: CRNE
Model Code: CRNE 15-9 Y-FGJ-H-K-HUBK
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HUBK
Flange Rating: PN 25
Technical Specifications
Model Number 92737604
Product Series CRNE
Series Description Vertical Multistage Centrifugal Pump — All Stainless Variable Speed
Power 10HP
Voltage 380-500V
Phase 3.0-Phase
Frequency 50, 60 Hz
Motor Speed 360-4000rpm
Pump Speed 2917rpm
Full Load Current 14,1-11,2A
Motor Type 132SF
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 92.5%
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 79.6US gpm
Nominal Head 316.2ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 248°F
Max Ambient Temperature 122°F
Inlet Connection DN 50
Outlet Connection DN 50
Pipe Pressure Rating PN 25
Pipe Standard DIN / ANSI / JIS
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HUBK
Approvals / Certifications CE, UKCA, SEPRO, RCM
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 380-500V, 3.0-Phase, 50, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRNE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRNE Series
✓ Product Data Sheet — CRNE 15-9 Y-FGJ-H-K-HUBK
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5715118894667
Actual impeller diameter 4.13 in
Approvals CE
Built-in motor protection ELEC
Code for rubber K
Code for shaft seal HUBK
Config. file no 99059097
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor FF265
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 278.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 32 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code H
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 416.7 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor efficiency at full load 1 0.925
Motor standard IEC
Motor type 132SF
Net weight 216.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.93-0.89
Pressure rating for connection PN 25
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version Y
Pumped liquid Water
Rated current 14.1-11.2 A
Rated flow 74.8 US gpm
Rated head 330.1 ft
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber K
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 9
Standard IEC
Type 132SF
Type of connection DIN / ANSI / JIS
Version Y

Motor Curves

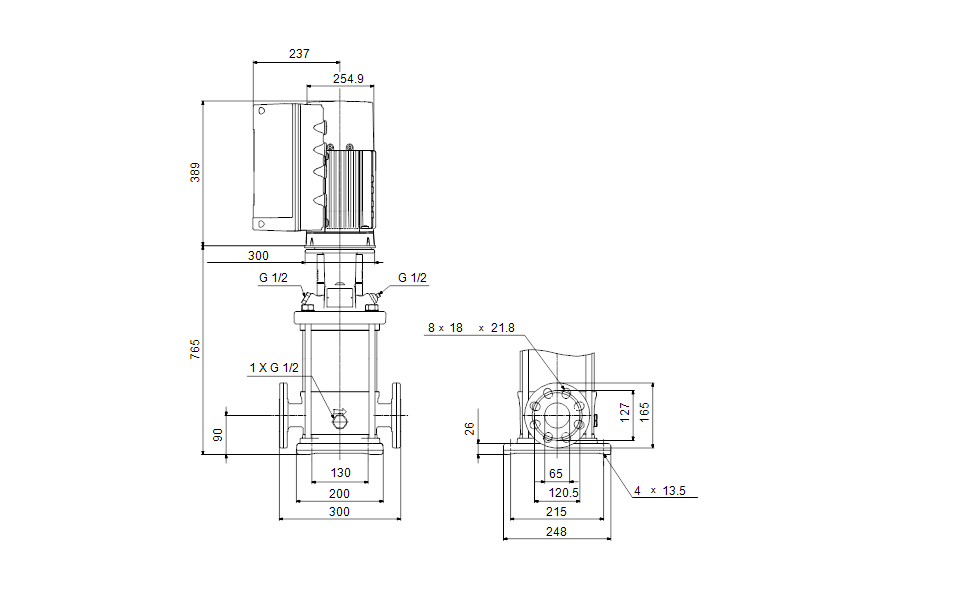

Dimensional Drawing

DWiring Diagram
