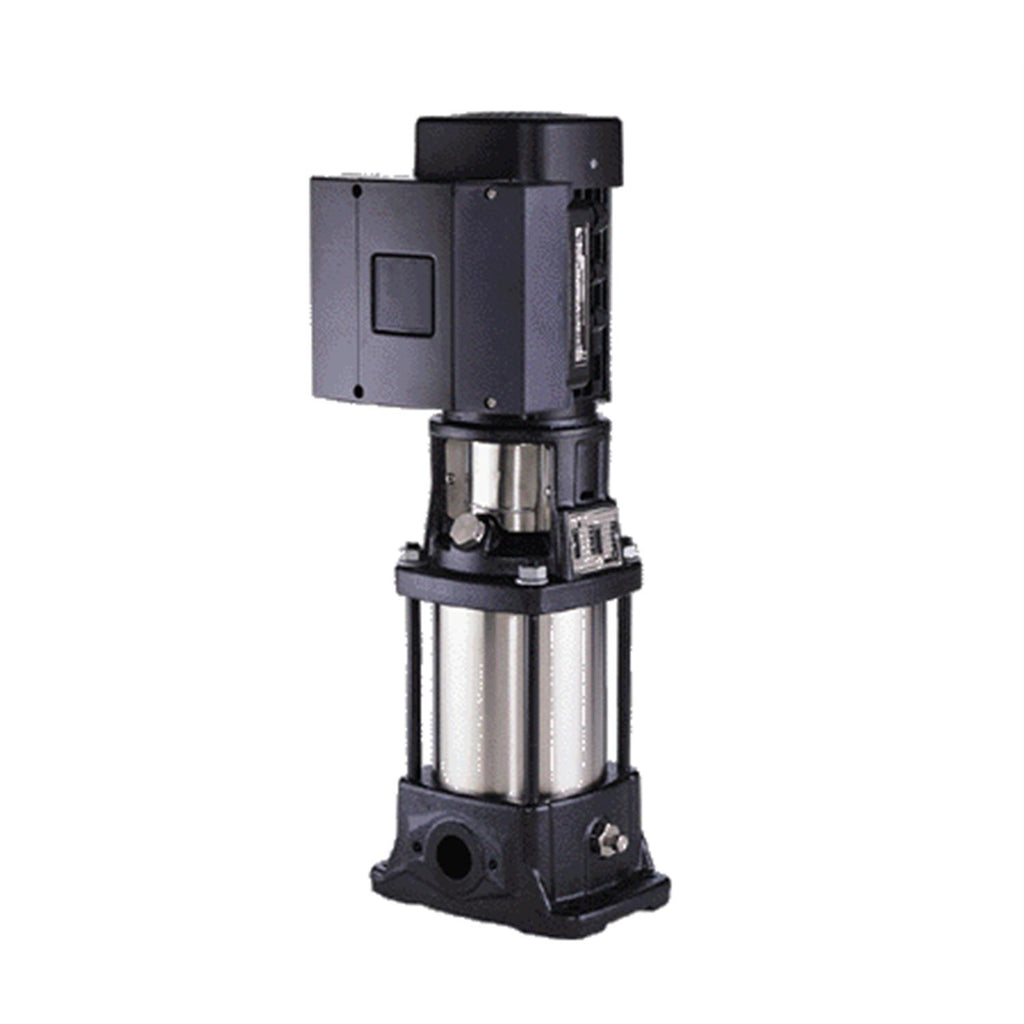

Grundfos 99253138 - CRNE 15-4 A-FGJ-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99253138

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99253138 - CRNE 15-4 A-FGJ-A-E-HQQE is a stainless steel multistage inline vertical pump used in industrial and commercial systems; typical users include contractors and facility maintenance teams installing or replacing high-pressure centrifugal pumps.

Key features

  • Stainless steel multistage construction for corrosion resistance and longevity
  • Inline vertical centrifugal design suited for high-pressure booster and process applications
  • Compact footprint delivers reliable pressure boost and efficient operation in confined plant spaces

Applications

Suitable for water booster systems, process water delivery, HVAC and chilled water pressure boosting, industrial plant services, and other general high-pressure centrifugal uses.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99253138

EAN 5713826041595
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99059073
Connect code FGJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor FF265
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 245.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 268.4 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor efficiency at full load 1 0.927
Motor standard IEC
Motor type 132SE
Net weight 183.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.92-0.88
Pressure rating for connection PN 25
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3526 rpm
Pump version A
Pumped liquid Water
Rated current 10.3-8.20 A
Rated flow 90.3 US gpm
Rated head 211.6 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Sales region Australia
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 4
Standard IEC
Type 132SE
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

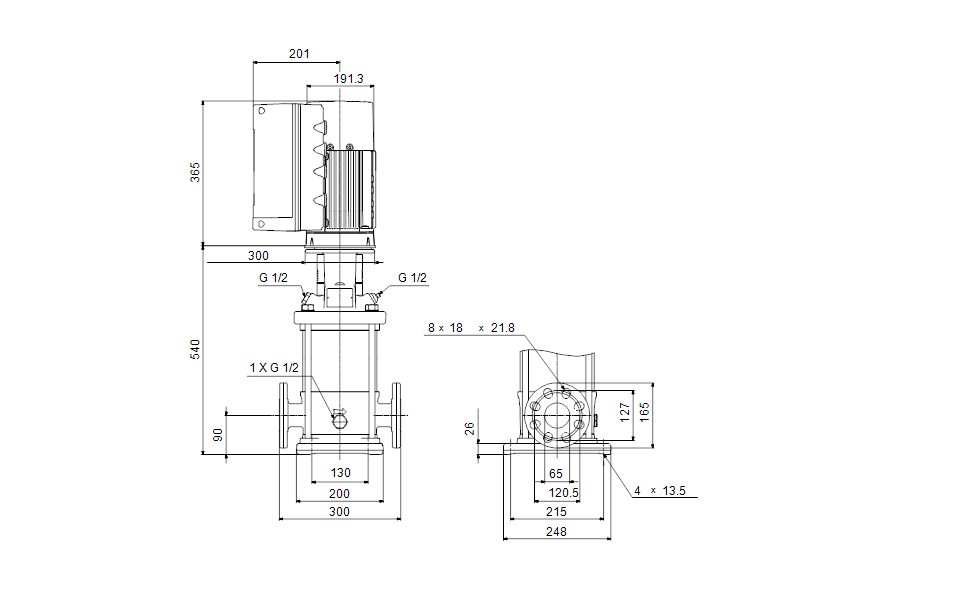

Dimensional Drawing

DWiring Diagram
