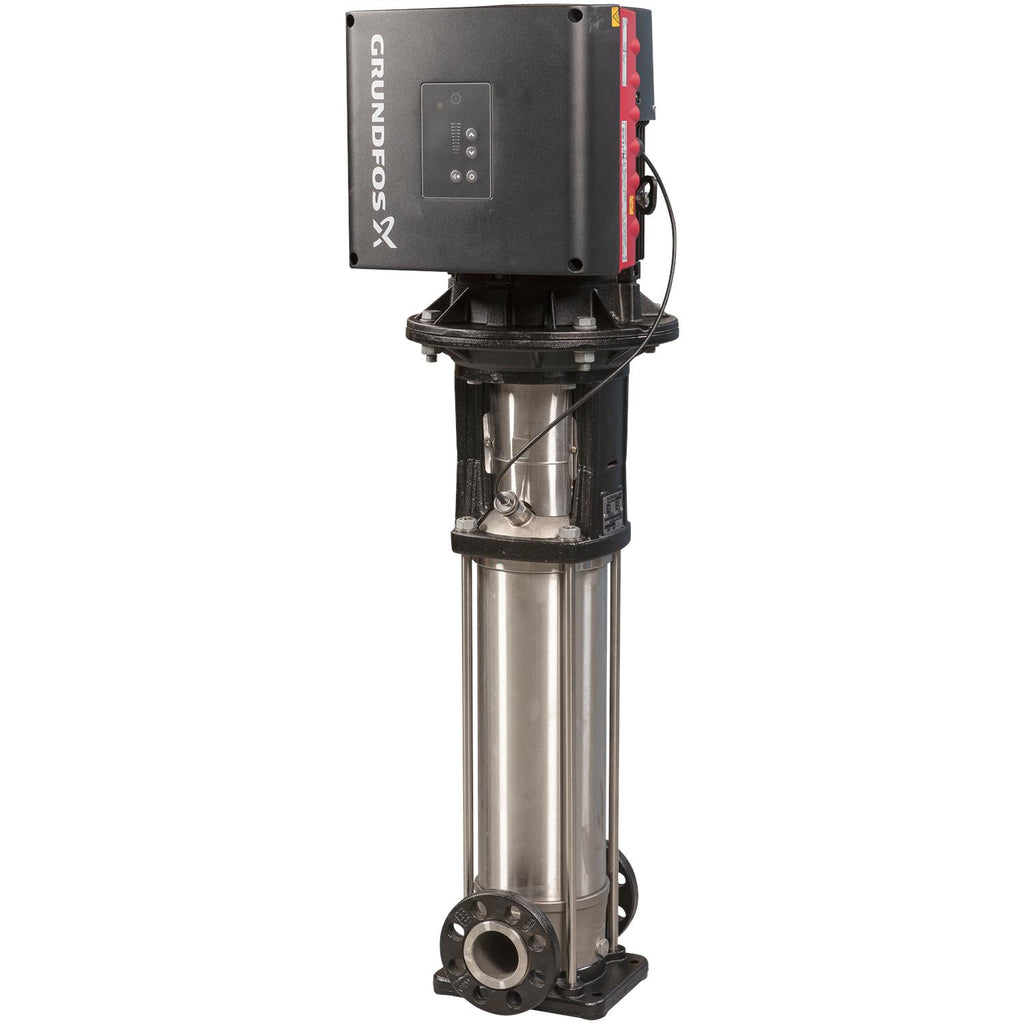

Grundfos 99076258 - CRNE 15-3 N-FGJ-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99076258

Price:
Sale price$16,487.50
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99076258 CRNE 15-3 N-FGJ-A-E-HQQE is a vertical, inline multistage centrifugal pump in stainless steel designed for industrial process and high-pressure fluid handling; suited for technicians and plant maintenance teams.

Key features

  • Designed for various industrial applications with multistage pressure generation
  • Inline and vertical configuration for compact installation and straightforward piping
  • Provides reliable, high-pressure fluid transfer and consistent performance in process systems

Applications

General uses include plant process pumping, high-pressure boiler feed, water transfer in industrial systems, and integration into inline high-pressure assemblies.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99076258

EAN 5712606280841
Applications Industrial applications
Actual impeller diameter 4.13 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074204
Connect code FGJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 183.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 200.5 ft
Maximum operating pressure 25 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type 132E
Net weight 165.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.91-0.89
Pressure rating for connection PN 25
Pressure sensor Y
Product family CRNE 15
Pump 5.5 kW
Pump speed on which pump data are based 3461 rpm
Pump version N
Pumped liquid Water
Rated current 9.10-8.50 A
Rated flow 90.3 US gpm
Rated head 152.9 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 3
Standard NEMA
Terminal box position 6
Type 132E
Type of connection DIN / ANSI / JIS
Version N

Motor Curves

Dimensional Drawing

DWiring Diagram
