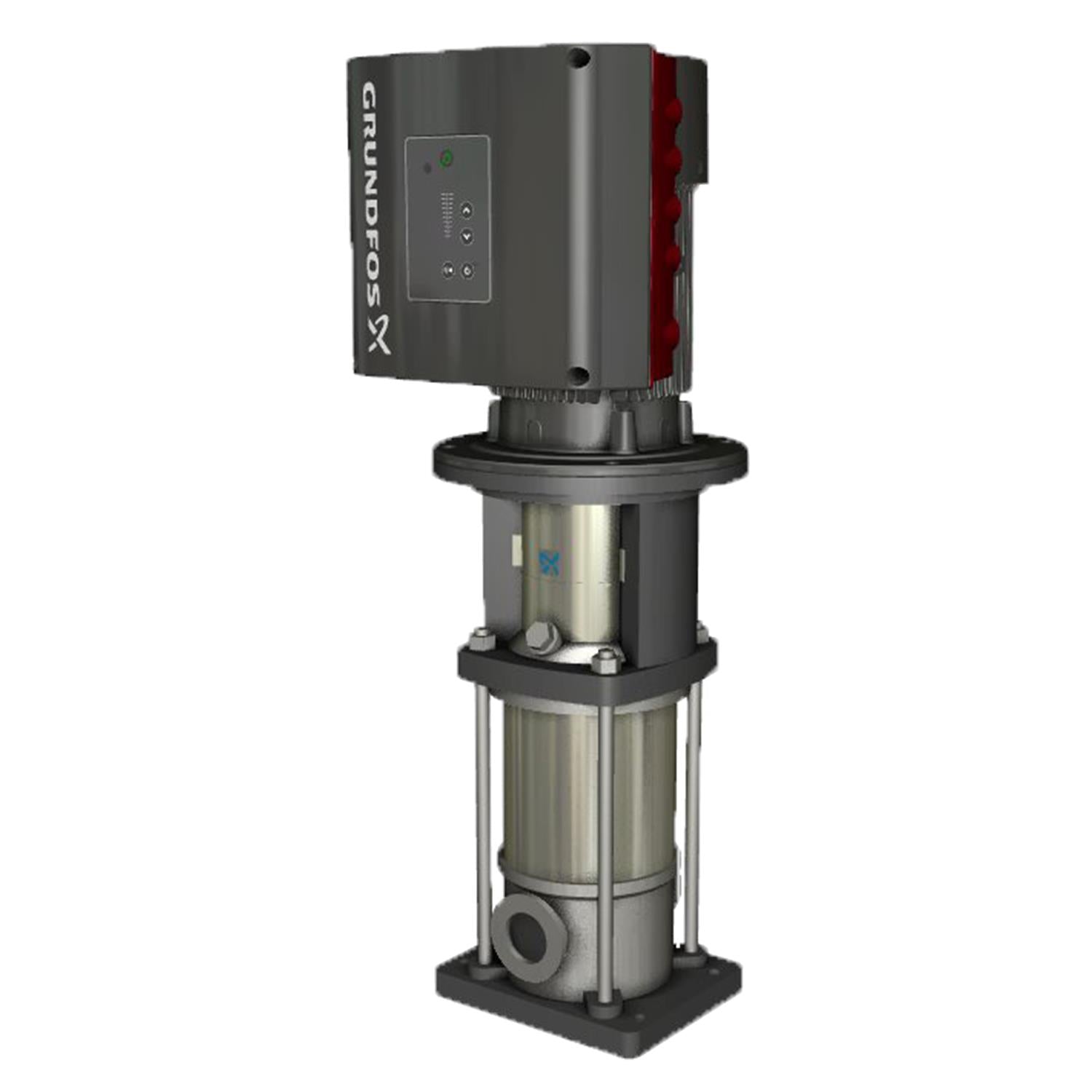

Grundfos 99833314 - CRNE 10-6 A-CX-T-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 99833314

Price:
Sale price$15,056.94
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
Grundfos 99833314 - CRNE 10-6 A-CX-T-E-HQQE | Multistage | Centrifugal | Vertical | Inline · Genuine Grundfos Part
CRNE SeriesGenuine Grundfos PartSpare Part / Accessory

The Grundfos 99833314 is a genuine Grundfos spare part, repair kit, or accessory compatible with the CRNE series (Inline multi stage pumps). Confirm compatibility with your specific pump model before ordering.

Genuine Grundfos
OEM part — engineered and tested to Grundfos specifications
Authorized Distributor
Full manufacturer warranty and traceability on all genuine parts
Compatibility
Verify part number against your pump model and serial number before ordering
Expert Support
Parts identification help available — call (781) 281-8905 or chat
Compatible Pump Series — CRNE
Vertical, multistage centrifugal pump with integrated frequency converter. All wetted parts in stainless steel EN 1.4401 (316). Variable speed and all stainless steel construction for demanding chemical or food-grade applications.
Inline multi stage pumps
Part Details
Part Number 99833314
Compatible Series Grundfos CRNE
Product Category Inline multi stage pumps
Part Type Genuine Grundfos OEM spare part / accessory
Important Notices
Compatibility Always verify this part number against your pump model number and serial number before ordering. Grundfos CRNE pumps are available in multiple configurations — not all parts are interchangeable between variants.
Genuine parts only Using non-genuine parts can affect pump performance, invalidate warranty, and cause premature failure. PumpStop supplies genuine Grundfos OEM parts only.
Installation Refer to the Grundfos Service Manual for your specific pump model for correct installation and torque specifications. Contact PumpStop for documentation.
Documentation
✓ Service Manual — CRNE Series
✓ Spare Parts List — CRNE Series
✓ Installation and Operating Manual (IOM)
Need the service manual or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm this part number is correct for your specific pump model and serial number. For parts identification assistance, chat or call (781) 281-8905.
EAN 5713834921100
Actual impeller diameter 3.66 in
Approvals CE
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99058956
Connect code CX
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange size for motor FT130
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 172.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code T
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 291.4 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT130
Motor efficiency at full load 1 0.922
Motor standard IEC
Motor type 112MC
Net weight 123.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Power factor 1 0.92-0.87
Pressure rating for connection PN 25
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 3514 rpm
Pump version A
Pumped liquid Water
Rated current 7.60-6.20 A
Rated flow 53.3 US gpm
Rated head 233.3 ft
Rated power - P2 4 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 6
Standard IEC
Type 112MC
Type of connection TriClamp
Version A

Motor Curves

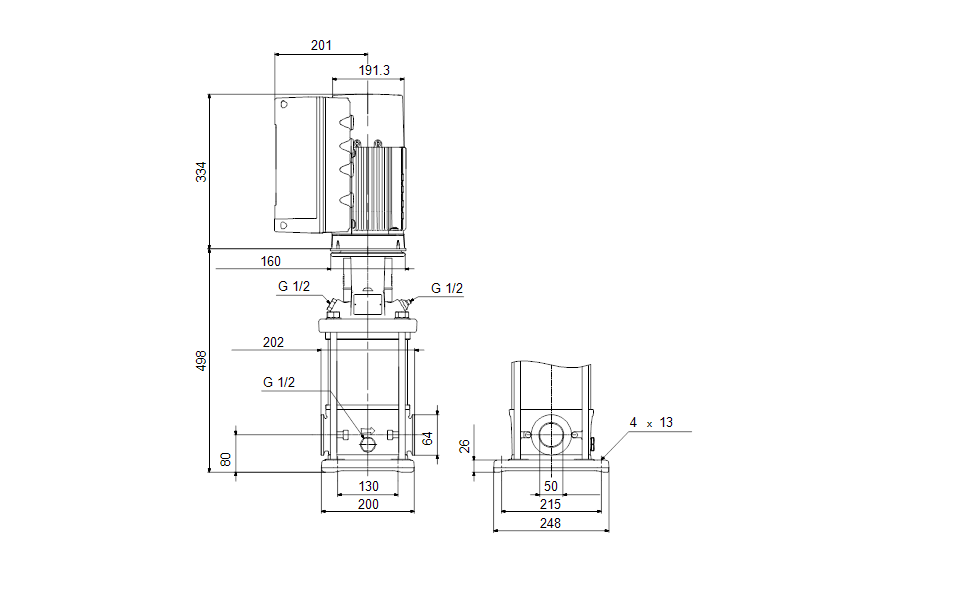

Dimensional Drawing

DWiring Diagram
