Grundfos 99671058 - CRNE 10-6 BN-FGJ-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99671058

Price:
Sale price$16,481.94
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99671058 - CRNE 10-6 BN-FGJ-A-E-HQQE Vertical Multistage Inline Pump

The Grundfos 99671058 - CRNE 10-6 BN-FGJ-A-E-HQQE is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This stainless steel pump features a robust construction that ensures durability and resistance to corrosion, making it suitable for demanding environments. With its multistage design, the CRNE 10-6 delivers superior pressure capabilities, ensuring optimal performance in various settings.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5713832704149
Actual impeller diameter 3.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074169
Connect code FGJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 185.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 289.4 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type 132E
Net weight 170.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.91-0.89
Pressure rating for connection PN 25
Pressure sensor Y
Pump 5.5 kW
Pump speed on which pump data are based 3461 rpm
Pump version BN
Pumped liquid Water
Rated current 9.10-8.50 A
Rated flow 53.3 US gpm
Rated head 227 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 6
Standard NEMA
Type 132E
Type of connection DIN / ANSI / JIS
Version BN

Motor Curves

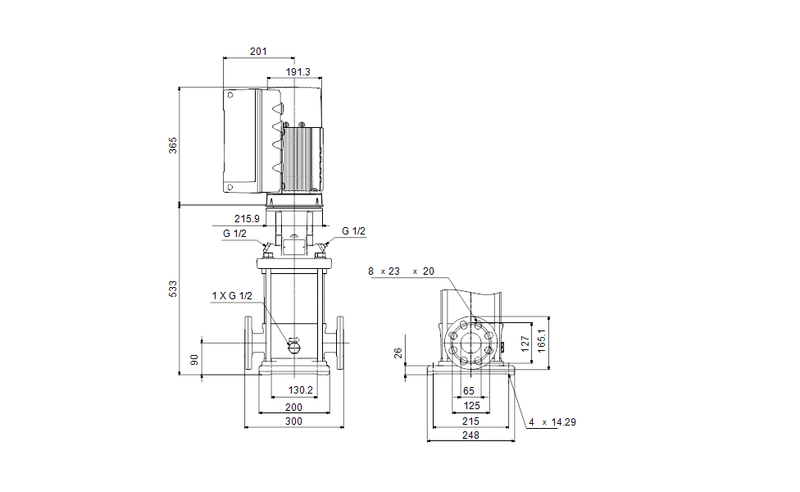

Dimensional Drawing

DWiring Diagram
