Grundfos 99401601 - CRNE 10-5 N-FGJ-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99401601

Price:
Sale price$14,211.11
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99401601 CRNE 10-5 N-FGJ-A-E-HQQE is a vertical, multistage inline stainless steel pump intended for industrial fluid handling. It suits technicians and facilities managers needing reliable high-pressure centrifugal performance.

Key features

  • Industrial-grade construction by Grundfos for demanding service environments
  • Designed as a vertical, multistage inline centrifugal pump for high-pressure applications
  • Delivers stable flow and pressure for efficient system operation and reduced maintenance

Applications

Common uses include boiler feed, high-pressure water supply, industrial process circulation, and any inline multistage vertical centrifugal duties requiring stainless steel wetted parts.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99401601

EAN 5713828516671
Actual impeller diameter 3.66 in
Approvals CURUS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074160
Connect code FGJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 168.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 241.8 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 112C
Net weight 152.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Power factor 1 0.90-0.88
Pressure rating for connection PN 25
Pressure sensor Y
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version N
Pumped liquid Water
Rated current 6.20-5.80 A
Rated flow 53.3 US gpm
Rated head 191.3 ft
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard NEMA
Type 112C
Type of connection DIN / ANSI / JIS
Version N

Motor Curves

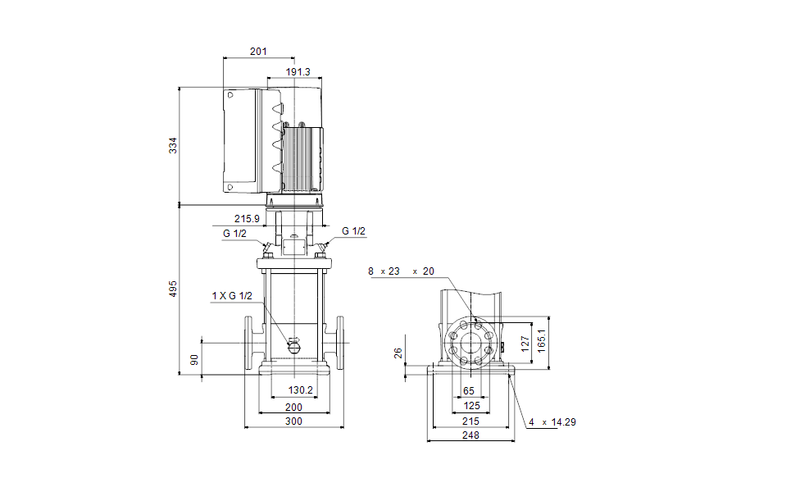

Dimensional Drawing

DWiring Diagram
