Grundfos 92630611 - CRNE 10-5 N-FGJ-A-V-HQQV | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 92630611

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92630611 - CRNE 10-5 N-FGJ-A-V-HQQV is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

This stainless steel pump features a robust construction that ensures durability and resistance to corrosion, making it suitable for demanding environments. With its multistage design, the CRNE 10-5 N-FGJ-A-V-HQQV delivers superior performance, providing consistent flow rates and pressure levels.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715117340530
Actual impeller diameter 3.66 in
Approvals CURUS
Built-in motor protection ELEC
Code for rubber V
Code for shaft seal HQQV
Config. file no 99074160
Connect code FGJ
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 168.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum head 241.8 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 112C
Net weight 152.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Power factor 1 0.90-0.88
Pressure rating for connection PN 25
Pressure sensor Y
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version N
Pumped liquid Water
Rated current 6.20-5.80 A
Rated flow 53.3 US gpm
Rated head 191.3 ft
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard NEMA
Type 112C
Type of connection DIN / ANSI / JIS
Version N

Motor Curves

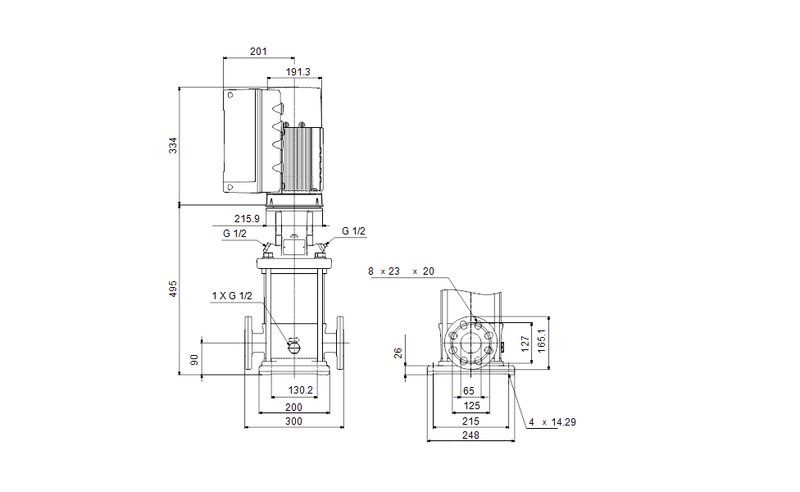

Dimensional Drawing

DWiring Diagram
