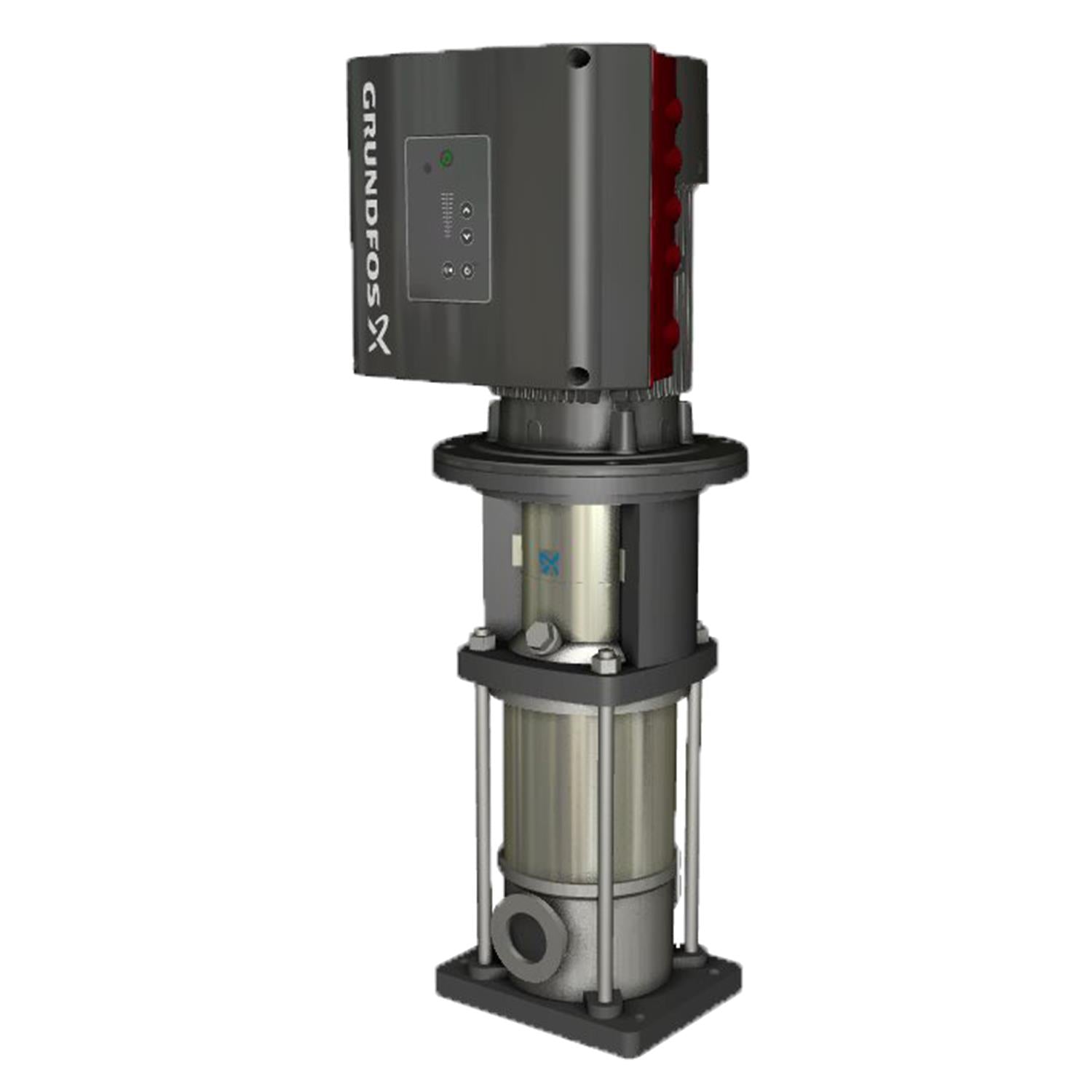

Image shown may not be actual product
Grundfos 99588364 - CRNE 10-4 BN-CX-T-E-HQQE
Grundfos 99588364 - CRNE 10-4 BN-CX-T-E-HQQE
Grundfos 99588364 - CRNE 10-4 BN-CX-T-E-HQQE
Grundfos 99588364 - CRNE 10-4 BN-CX-T-E-HQQE
Grundfos 99588364 - CRNE 10-4 BN-CX-T-E-HQQE
Grundfos 99588364 - CRNE 10-4 BN-CX-T-E-HQQE

Grundfos 99588364 - CRNE 10-4 BN-CX-T-E-HQQE

GRUNDFOSSKU: 99588364
Price:
$14,801.39
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99588364 - CRNE 10-4 BN-CX-T-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713831508786
Material Pricing Group 31
Motor efficiency at full load 1 0.925
IE Efficiency class IE5
Code for rubber E
Maximum ambient temperature 122 °F
Material code T
Density 62.29 lb/ft³
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 25 bar
Size of inlet connection DN 50
Power factor 1 0.90-0.88
Selected liquid temperature 68 °F
Type of connection TriClamp
Rated voltage 3 x 440-480 V
Flange size for motor 182TC
Pumped liquid Water
Size of outlet connection DN 50
Connect code CX
Liquid temperature range -4 .. 248 °F
Mains frequency 60 Hz
Insulation class (IEC 85) F
Built-in motor protection ELEC
Net weight 139.0 lb
Rated speed 360-4000 rpm
Gross weight 154.0 lb
Rated power - P2 3.7 kW
Enclosure class (IEC 34-5) IP55
Power (P2) required by pump 3.7 kW
Pressure rating for connection PN 25
Rated current 6.20-5.80 A
Service factor 1.15
Control panel Graphical
Config. file no 99074159
Frequency converter Built-in
Motor type 112C
Function Module FM300 - Advanced
Pressure sensor Y
Pump speed on which pump data are based 3461 rpm
Stages 4
Approvals CURUS
Rated flow 53.3 US gpm
Model A
Version BN
Diameter 3.66 in
Motor 182TC
Rubber E
Maximum head 192.6 ft
Approvals for drinking water NSF/ANSI 61
Motor standard NEMA
DOE Pump Energy Index VL 0.4
Rated head 150.3 ft
Actual impeller diameter 3.66 in
Type 112C
Curve tolerance ISO9906:2012 3B
Impellers 0
Connection PN 25
Impeller Stainless steel
Code for shaft seal HQQE
Number of reduced-diameter impellers 0
Pump 3.7 kW
Low NPSH N
Standard NEMA
Pump version BN
