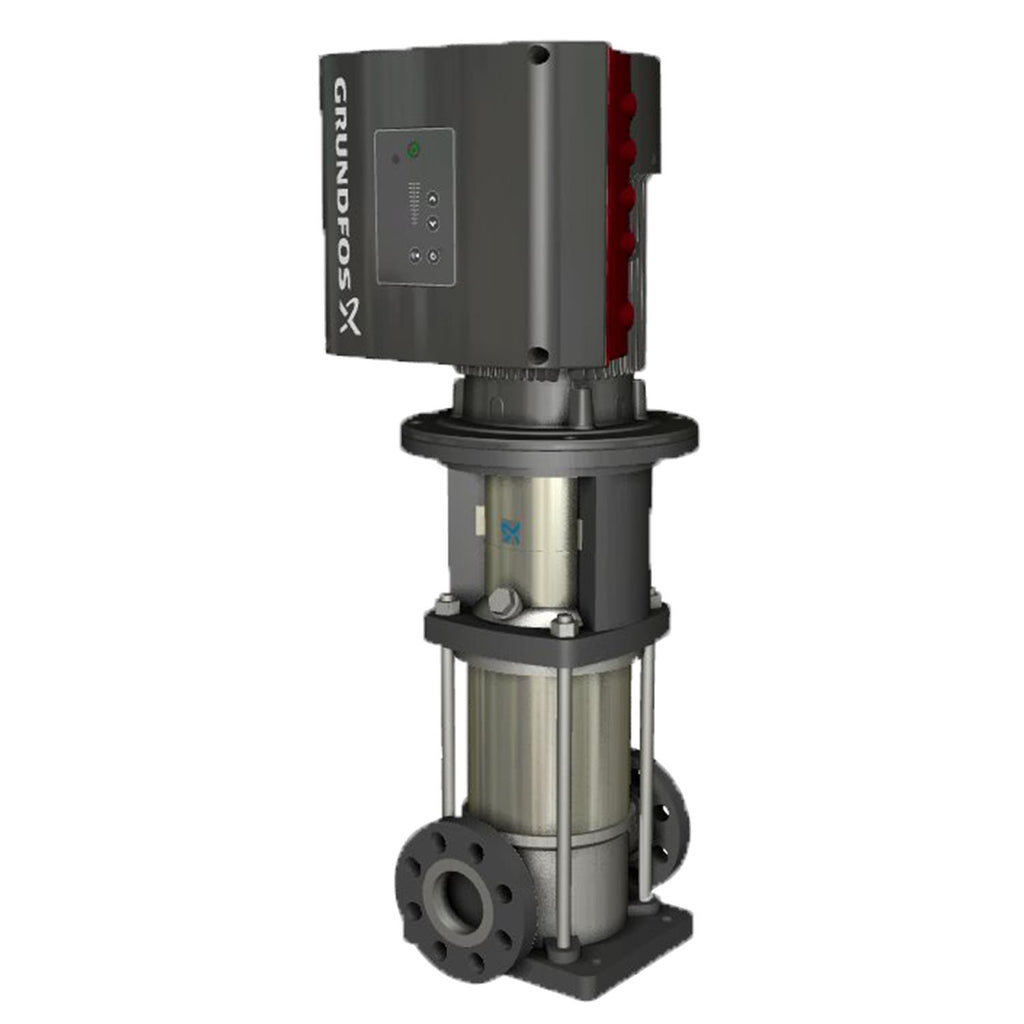

Grundfos 99209534 - CRNE 10-4 A-FGJ-A-V-HUUV | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99209534

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRNE 10-4 A-FGJ-A-V-HUUV · Vertical Multistage Centrifugal Pump — All Stainless Variable Speed
CRNE3HP440-480V3.0-Phase60 HzIE5IP55Stainless steel

The Grundfos 99209534 (CRNE 10-4 A-FGJ-A-V-HUUV) is a Vertical Multistage Centrifugal Pump — All Stainless Variable Speed. All stainless steel construction with integrated variable frequency drive. Variable speed and full stainless for demanding chemical or food-grade applications. Nominal performance: 52.6US gpm at 151ft. Rated 440-480V, 3.0-Phase, 60 Hz.

Power
3HP
Voltage
440-480V
Phase
3.0-Phase
Max Flow
52.6US gpm
Max Head
151ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Variable Speed Plus All Stainless

CRNE combines IE5 variable speed with 316 stainless steel wetted construction — the full specification for demanding chemical, food, and pharmaceutical pressure systems.

IE5 Permanent Magnet Motor

Highest efficiency class motor reduces operating cost. Especially effective in pressure systems that spend most runtime below maximum flow.

Integrated Drive — No Cabinet Required

VFD is inside the pump head. Eliminates separate drive panel, reduces installation footprint, and simplifies commissioning.

All Stainless Steel Wetted Path

Every surface in contact with the fluid is EN 1.4401 (316) stainless. Suitable for chlorinated water, mild acids, cleaning agents, and process chemicals.

iSOLUTIONS Connectivity

Supports MODBUS, PROFIBUS, BACnet, and Grundfos GO for full BMS integration and remote performance monitoring.

Cartridge Seal — No Adjustment

Factory-set cartridge seal. No field adjustment on installation. Seal variants available for water, chemical, and high-temperature service.

Model Information — CRNE 10-4 A-FGJ-A-V-HUUV
Series: CRNE
Model Code: CRNE 10-4 A-FGJ-A-V-HUUV
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HUUV
Flange Rating: PN 25
Technical Specifications
Model Number 99209534
Product Series CRNE
Series Description Vertical Multistage Centrifugal Pump — All Stainless Variable Speed
Power 3HP
Voltage 440-480V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 360-4000rpm
Pump Speed 3484rpm
Full Load Current 3.8A
Motor Type 90D
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 90.7%
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 52.6US gpm
Nominal Head 151ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 122°F
Inlet Connection DN 50
Outlet Connection DN 50
Pipe Pressure Rating PN 25
Pipe Standard DIN / ANSI / JIS
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HUUV
Approvals / Certifications CE, UKCA, SEPRO, RCM
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 440-480V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRNE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRNE Series
✓ Product Data Sheet — CRNE 10-4 A-FGJ-A-V-HUUV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5712608748264
Actual impeller diameter 3.66 in
Approvals CURUS
Built-in motor protection ELEC
Code for rubber V
Code for shaft seal HUUV
Config. file no 98500681
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 137.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum head 192.6 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.907
Motor standard NEMA
Motor type 90D
Net weight 121.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.89
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 3.8 A
Rated flow 53.3 US gpm
Rated head 150.3 ft
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 4
Standard NEMA
Type 90D
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

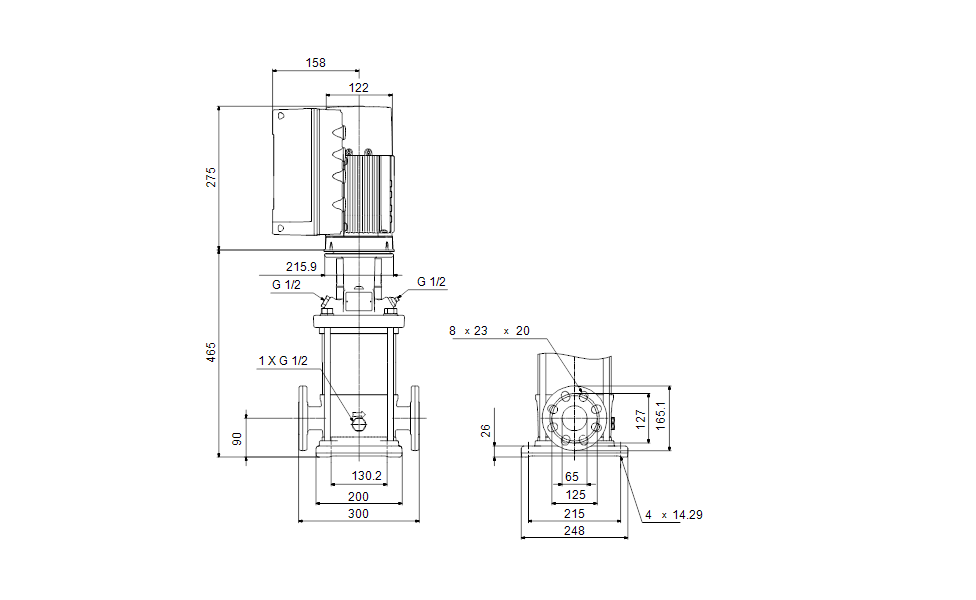

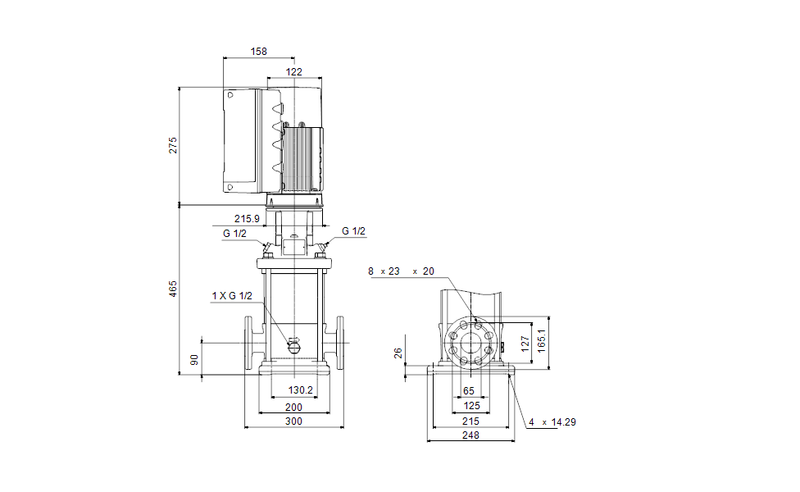

Dimensional Drawing

DWiring Diagram
