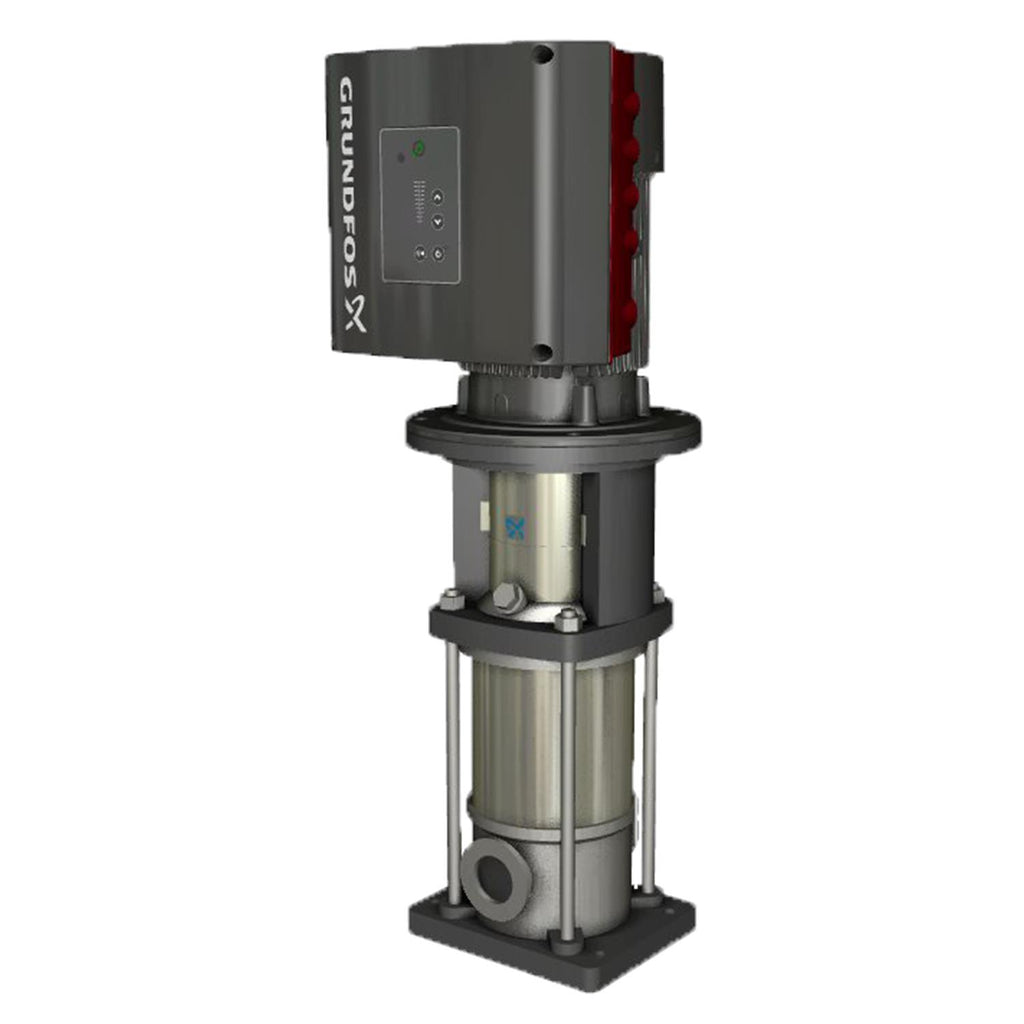

Grundfos 99758006 - CRNE 10-2 A-CX-T-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99758006

Price:
Sale price$10,980.56
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99758006 - CRNE 10-2 A-CX-T-E-HQQE is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for high-pressure systems.

This stainless steel pump features a robust construction that ensures durability and resistance to corrosion, making it suitable for demanding environments. With its multistage design, the CRNE 10-2 A-CX-T-E-HQQE delivers exceptional performance, providing consistent flow rates and pressure levels.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore the reliability and efficiency of the Grundfos 99758006 - CRNE 10-2 A-CX-T-E-HQQE and elevate your pumping solutions today!

EAN 5713833871093
Actual impeller diameter 3.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98500670
Connect code CX
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index VL 0.41
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 97.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code T
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 95.81 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.896
Motor standard NEMA
Motor type 80B
Net weight 81.6 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.84
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3466 rpm
Pump version A
Pumped liquid Water
Rated current 2.05 A
Rated flow 53.3 US gpm
Rated head 72.51 ft
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Type 80B
Type of connection TriClamp
Version A

Motor Curves

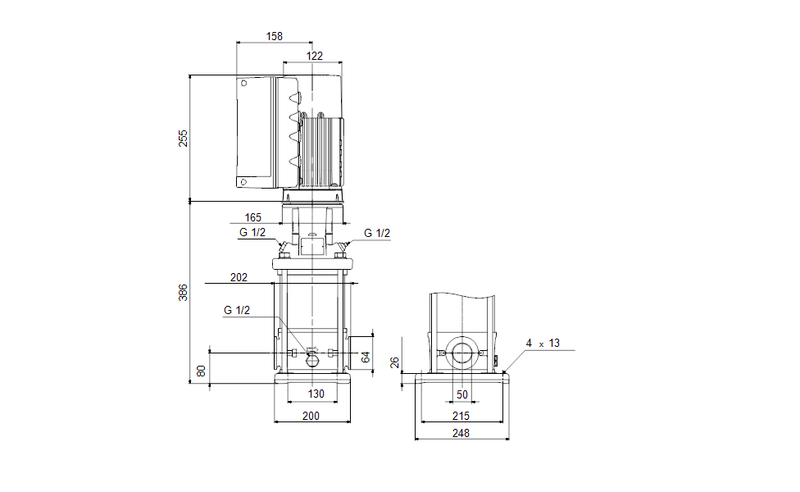

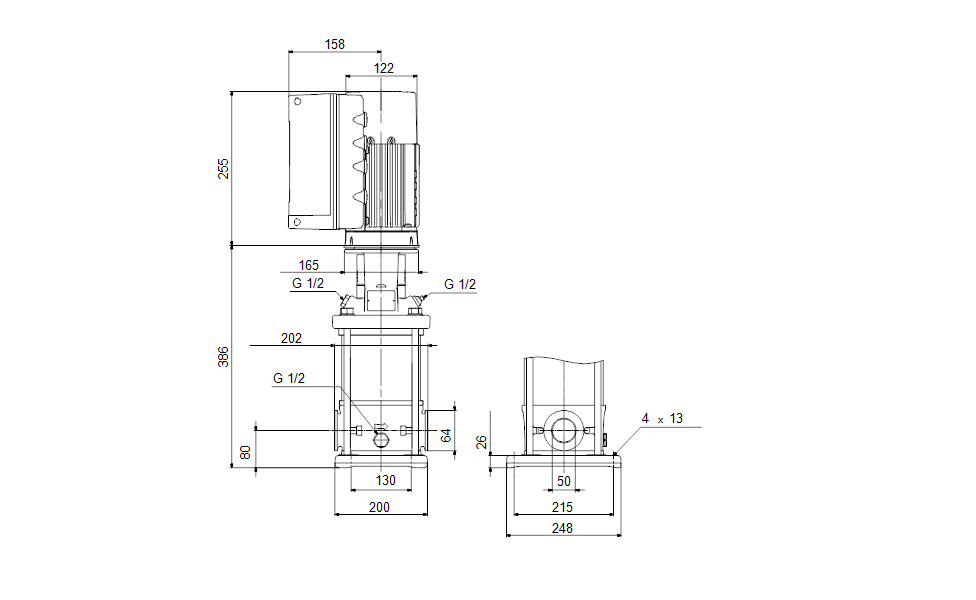

Dimensional Drawing

DWiring Diagram
