Grundfos 92720186 - CRNE 10-10 P-CA-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 92720186

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

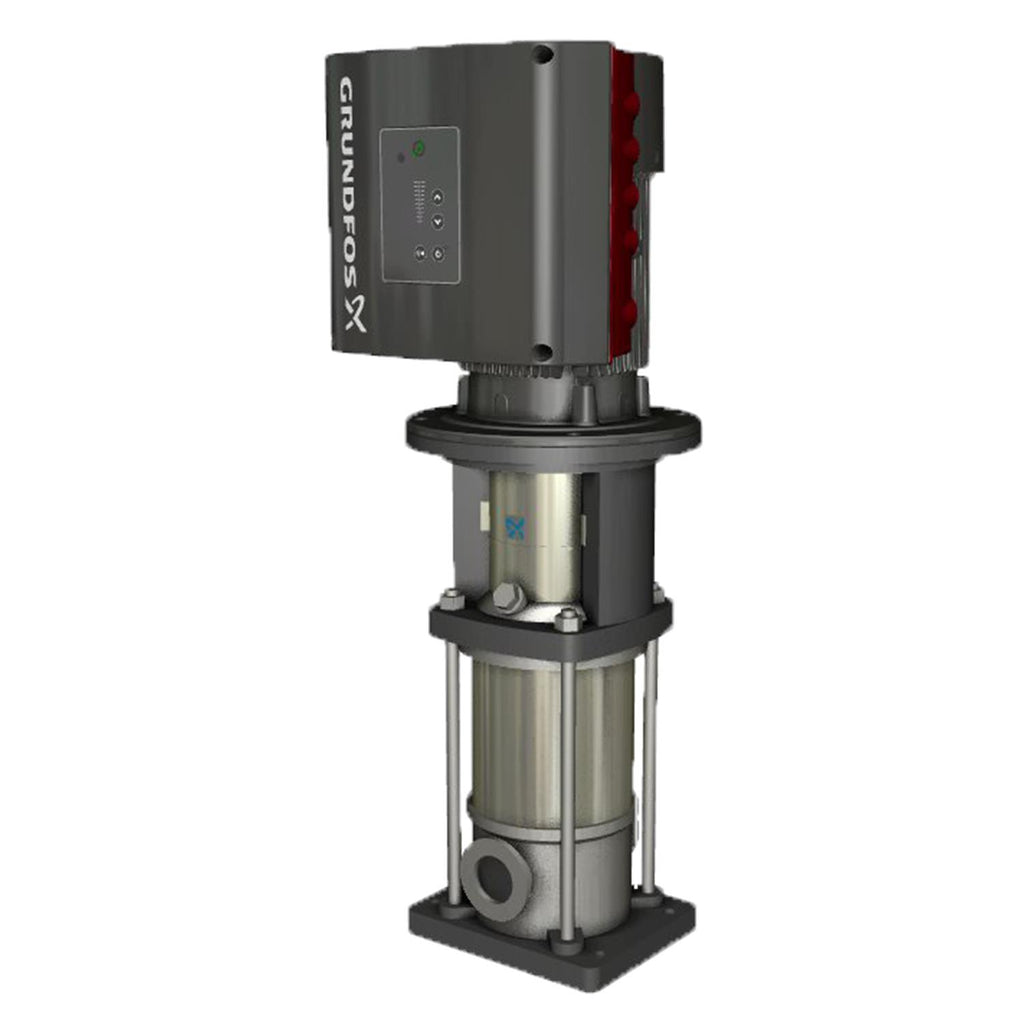

Grundfos 92720186 - CRNE 10-10 P-CA-A-E-HQQE Vertical Multistage Inline Pump

The Grundfos 92720186 - CRNE 10-10 P-CA-A-E-HQQE is a high-performance vertical multistage inline pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its stainless steel construction, the CRNE 10-10 P-CA-A-E-HQQE offers exceptional durability and resistance to corrosion, ensuring a long service life even in demanding environments. This pump is perfect for applications requiring consistent flow rates and high pressure, making it suitable for both commercial and industrial settings.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore the reliability and efficiency of the Grundfos CRNE 10-10 P-CA-A-E-HQQE and elevate your pumping solutions today!

EAN 5715118623625
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99058972
Connect code CA
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor FF265
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 245.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 / 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 485.6 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor efficiency at full load 1 0.927
Motor standard IEC
Motor type 132SE
Net weight 183.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.92-0.88
Pressure rating for connection PN 25
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3525 rpm
Pump version P
Pumped liquid Water
Rated current 10.3-8.20 A
Rated flow 53.3 US gpm
Rated head 394.4 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 10
Standard IEC
Type 132SE
Type of connection FlexiClamp
Version P

Motor Curves

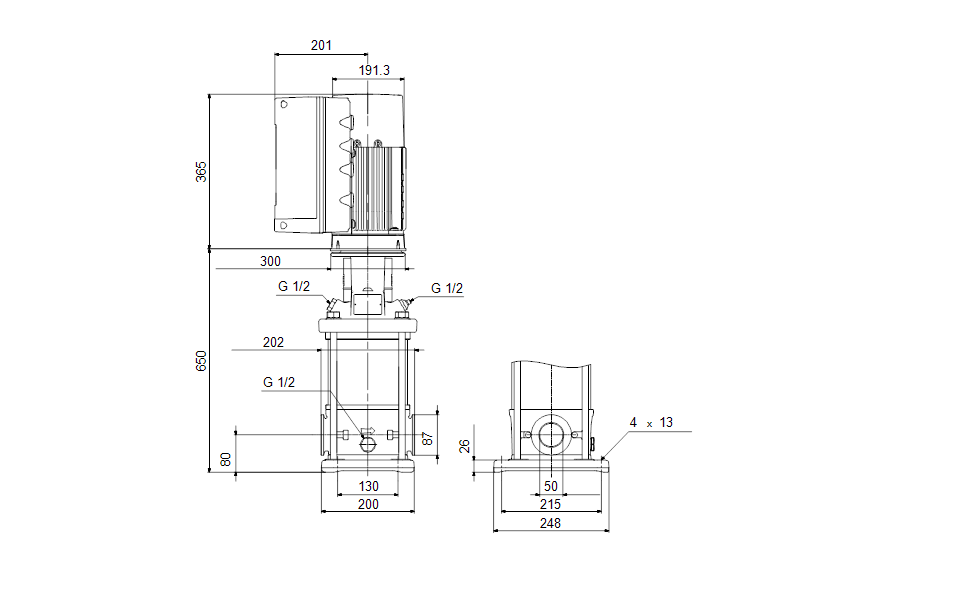

Dimensional Drawing

DWiring Diagram
