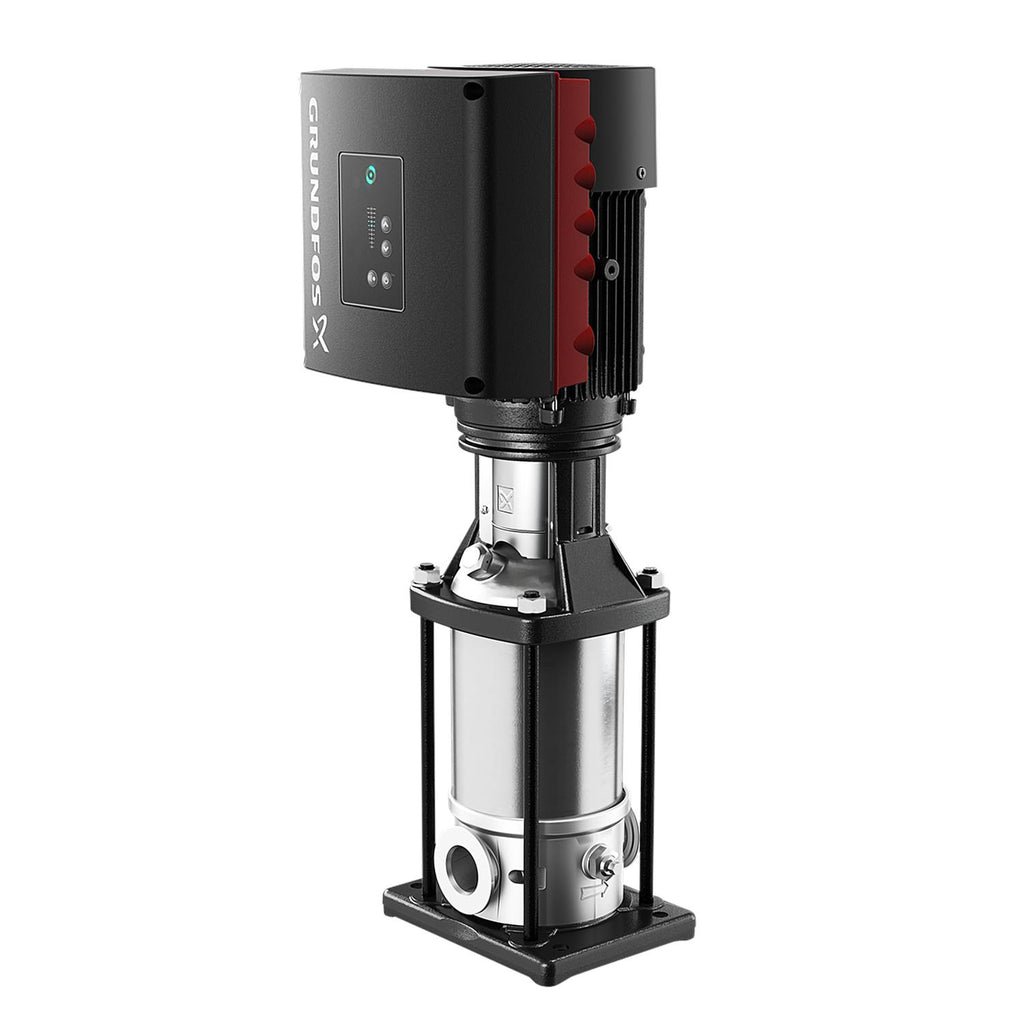

Grundfos 99070895 - CRNE 1-23 Q-P-T-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99070895

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99070895 - CRNE 1-23 Q-P-T-E-HQQE is a stainless steel vertical inline multistage pump designed for industrial and commercial fluid handling, suited to systems requiring compact, high-pressure performance.

Key features

  • Stainless steel construction for corrosion resistance and longevity
  • Vertical, inline multistage design for high-pressure, space-saving installations
  • Delivers reliable high-pressure fluid transfer for process and booster applications

Applications

Typical uses include industrial process water, high-pressure booster systems, HVAC, and general centrifugal pump duties where compact vertical multistage performance is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99070895

EAN 5712606180349
Applications Industrial applications
Approvals CE
Approvals and markings 376.8 m
Battery back-up 376.8 m
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Colour 376.8 m
Config. file no 99080697
Connect code P
Connection 1 1/4 inch
Control panel HMI300 - Advanced
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor FT130
Flow range 376.8 m
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 122.0 lb
Head max 376.8 m
Housing Stainless steel
IE Efficiency class IE5
Impeller Stainless steel
Impellers 23
Insulation class (IEC 85) F
Length 376.8 m
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code T
Material Pricing Group 31
Max pressure at stated temp 725 psi / 250 °F
Maximum ambient temperature 122 °F
Model A
Motor Standard motor size
Motor type 112C
Net weight 111.0 lb
Number of leads 376.8 m
Pipework connection 376.8 m
Power factor 1 0.90-0.88
Pressure retention valve 376.8 m
Product family CRNE 1-HS
Pump housing Stainless steel
Pump speed on which pump data are based 4800 rpm
Pump version Q
Pumped liquid Water
Rated current 6.20-5.80 A
Rated flow 15.4 US gpm
Rated head 759.2 ft
Rated power - P2 3.7 kW
Rated speed 480-5900 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Sens.interface 376.8 m
Service factor 1.15
Size of connection 1 1/4 inch
Stages 23
Type 112C
Type of connection PJE
Valve type 376.8 m
Version Q

Motor Curves

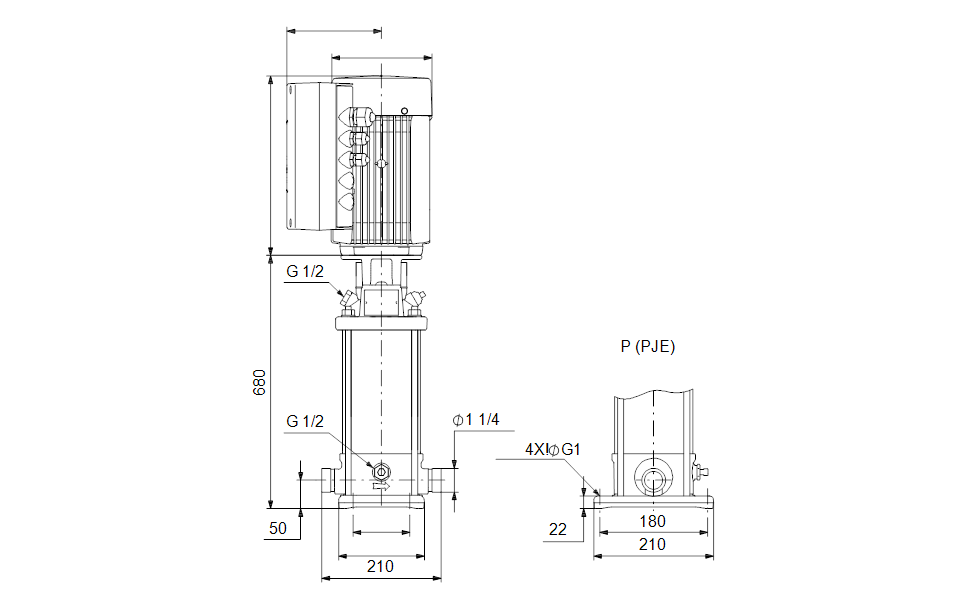

Dimensional Drawing

DWiring Diagram
