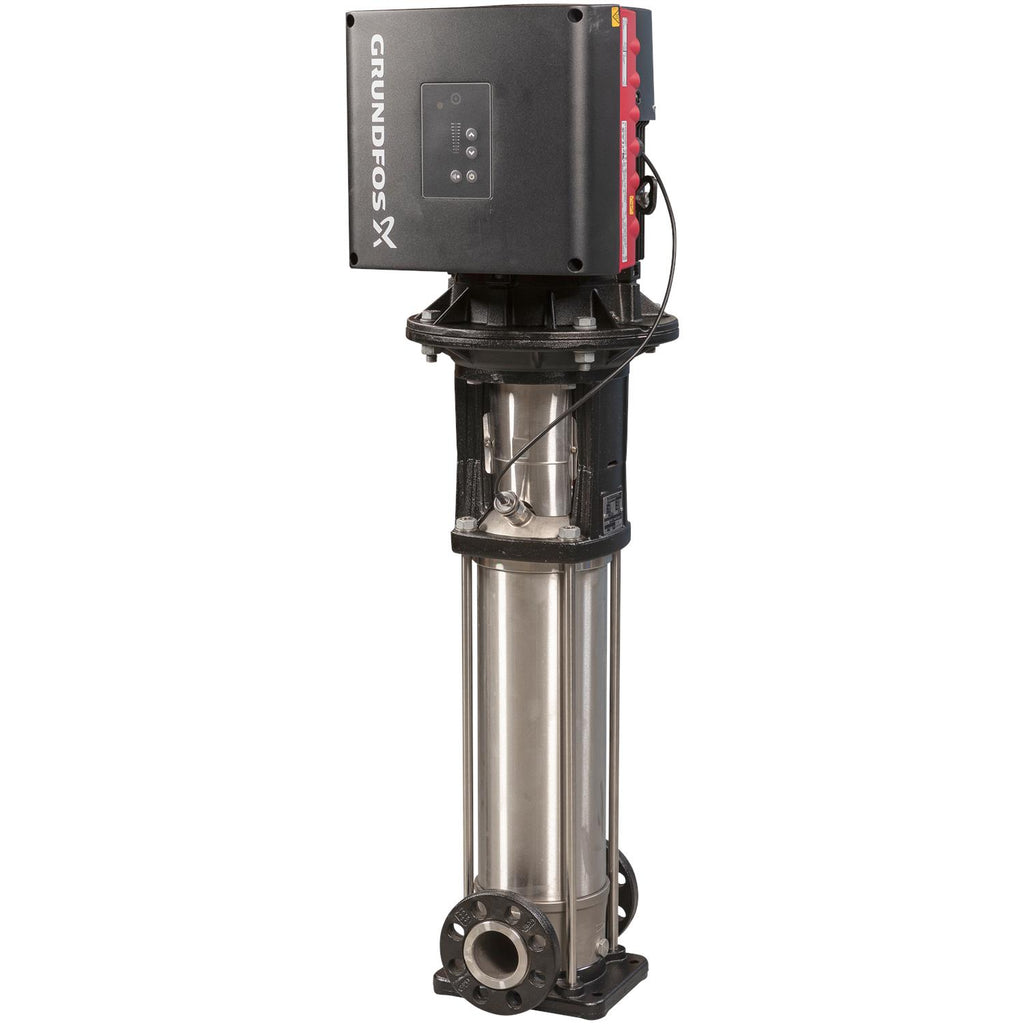

Grundfos 98497161 - CRNE 1-13 N-FGJ-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 98497161

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98497161 - CRNE 1-13 N-FGJ-A-E-HQQE is a vertical, inline multistage stainless steel centrifugal pump suited for industrial fluid transfer and high-pressure applications commonly used by municipal, commercial, and process operators.

Key features

  • Manufactured by Grundfos for various industrial applications
  • Designed as a vertical, inline multistage centrifugal pump for high pressure performance
  • Stainless steel construction provides corrosion resistance and durable service life

Applications

Typical uses include high-pressure water distribution, boiler feed, reverse osmosis feed, and general industrial process pumping where compact vertical multistage designs are preferred.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98497161

EAN 5711496139963
Applications Industrial applications
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498489
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 78.9 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 380.3 ft
Maximum operating pressure 25 bar
Model A
Motor Standard motor size
Motor efficiency at full load 1 0.869
Motor standard NEMA
Motor type 80B
Net weight 67.9 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.99
Pressure rating for connection PN 25
Pressure sensor Y
Product family CRNE 1
Pump 1.1 kW
Pump speed on which pump data are based 3450 rpm
Pump version N
Pumped liquid Water
Rated current 6.70-5.60 A
Rated flow 9.69 US gpm
Rated head 283.8 ft
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 13
Standard NEMA
Terminal box position 6
Type 80B
Type of connection DIN / ANSI / JIS
Version N
