Grundfos 92622560 - CRN 95-5-1 I-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92622560

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92622560 - CRN 95-5-1 I-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92622560 - CRN 95-5-1 I-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 95-5-1 I-P-A-E-HQQE model ensures optimal fluid handling capabilities, making it suitable for various operational environments. Whether you need a pump for water supply, irrigation, or industrial processes, this model is built to meet your demands.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715117216842
Actual impeller diameter 6.07 in
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.07 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange size for motor 365TSC
Frequency converter NONE
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Maximum ambient temperature 104 °F
Maximum head 699.8 ft
Maximum operating pressure 40 bar
Model A
Motor 365TSC
Motor efficiency at 1/2 load 0.924
Motor efficiency at 3/4 load 0.936
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type WEG
Net weight 1170.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power factor 1 0.9
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 3547 rpm
Pump version I
Pumped liquid Water
Rated current 164/81.9 A
Rated flow 500 US gpm
Rated head 516.1 ft
Rated power - P2 55 kW
Rated speed 3555 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 5
Standard NEMA
Starting current 6.7
Support bearing Graflon
Type WEG
Type of connection PJE
Version I

Motor Curves

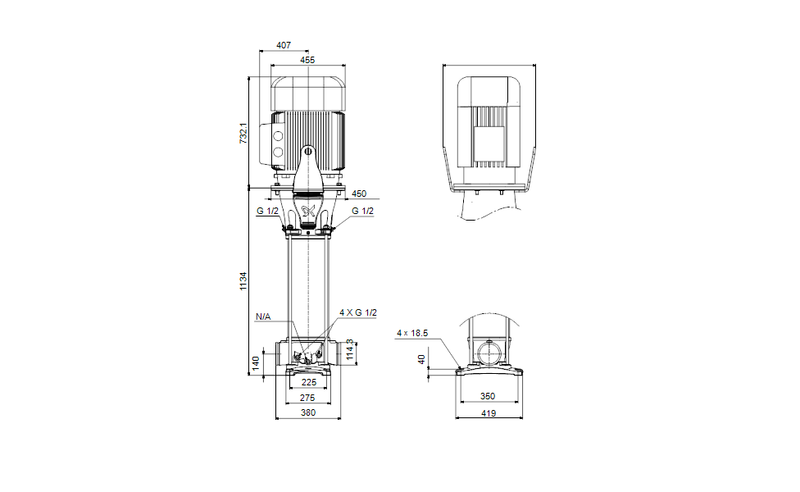

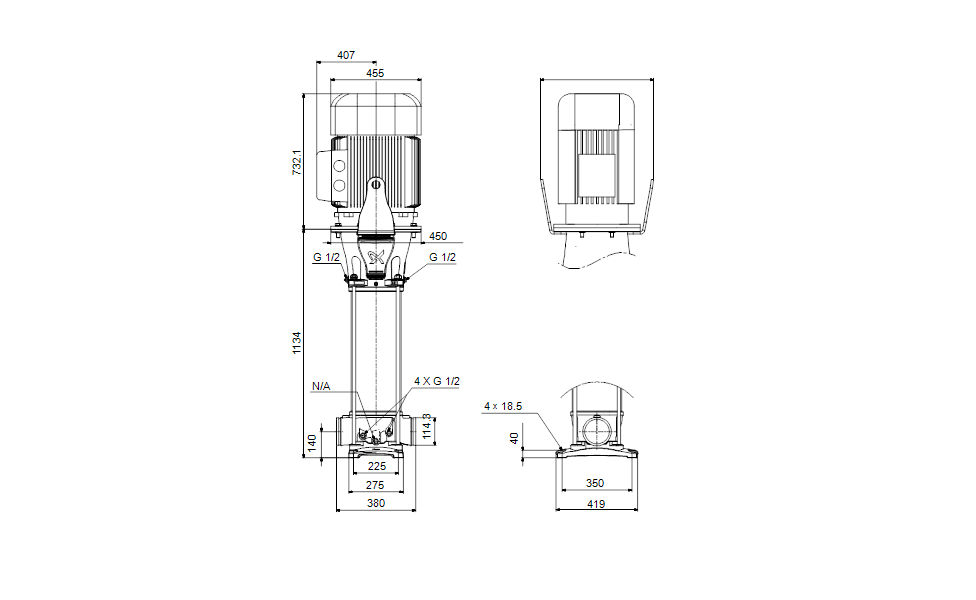

Dimensional Drawing

DWiring Diagram
