Grundfos 92575250 - CRN 95-5-1 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92575250

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92575250 is a vertical multistage centrifugal pump designed for industrial service where compact, high-pressure pumping is required. This replacement unit fits applications calling for a CRN 95-5-1 A-G-A-E-HQQE configuration and is intended for maintenance and repair by plant and service technicians.

Key features

  • Vertical, multistage centrifugal design for efficient pressure boosting
  • Suitable for inline installation and high-pressure service as indicated by product tags
  • Robust construction offering stable flow and reduced maintenance downtime

Applications

Common uses include boiler feed, pressure boosting, industrial water transfer, and other high-pressure multistage pump duties in commercial and industrial facilities.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92575250

EAN 5715116501581
Actual impeller diameter 6.07 in
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 300 lb
Curve tolerance ISO9906:2012 3B
Diameter 6.07 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP54
Flange size for motor 365TSC
Frequency converter NONE
IE efficiency IE3 94
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Maximum ambient temperature 122 °F
Maximum head 699.8 ft
Maximum operating pressure 25 bar
Model A
Motor 365TSC
Motor efficiency at full load 1 0.945
Motor standard NEMA
Motor type BALDOR
Net weight 1250.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power factor 1 0.87
Pressure rating for connection 300 lb
Pressure sensor N
Pump speed on which pump data are based 3547 rpm
Pump version A
Rated current 166/83 A
Rated flow 500 US gpm
Rated head 516.1 ft
Rated power - P2 55 kW
Rated speed 3550 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Service factor 1.15
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 5
Standard NEMA
Starting current 5.11
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version A

Motor Curves

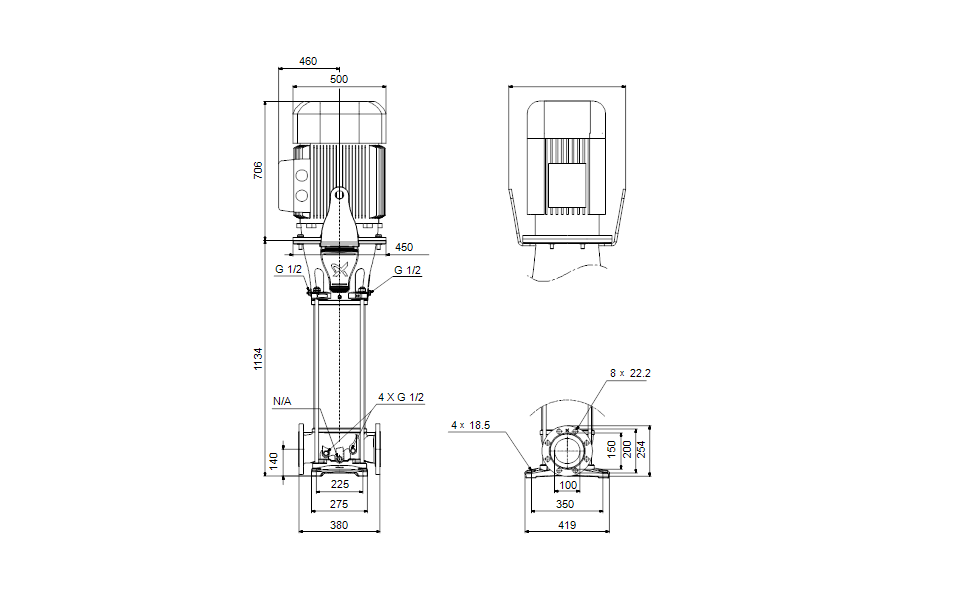

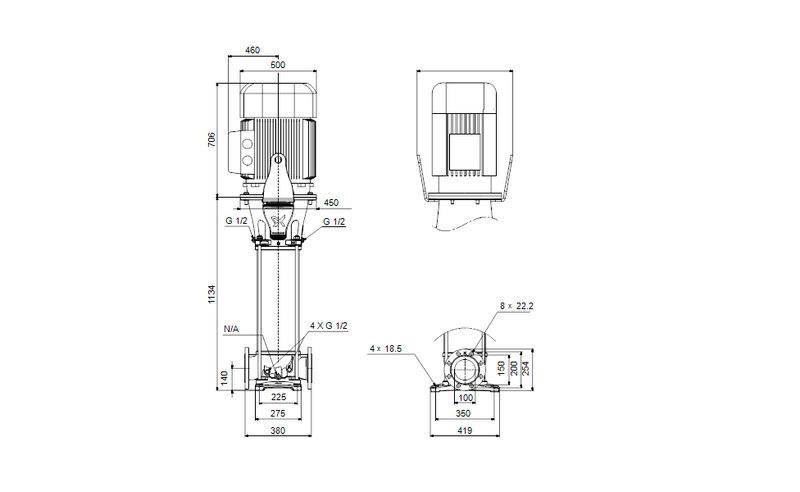

Dimensional Drawing

DWiring Diagram
