EAN
5713828495914
Applications
Industrial applications
Material Pricing Group
33
Code for rubber
V
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
362.59 psi
Support bearing
Graflon
Selected liquid temperature
68 °F
Type of connection
PJE
Bearing 1
WC/WC
Pressure rating
1000 psi
Flange size for motor
284TC
Pumped liquid
Water
Pump outlet
4
Pump inlet
4
Connect code
P
Liquid temperature range
-4 .. 194 °F
Net weight
238.0 lb
Gross weight
496.0 lb
Power (P2) required by pump
25 HP
Pressure rating for connection
1000 psi
Frequency converter
NONE
DOE Pump Energy Index CL
0.92
Stages
2
Rated flow
500 US gpm
Flange standard
PJE
Model
A
Version
A
Diameter
6.07 in
Motor
284TC
Rubber
V
Maximum head
232 ft
Approvals for drinking water
NSF/ANSI 372
Motor standard
NEMA
Material certified according to
European standards
Thrust handling device
N
Rated head
153.2 ft
Actual impeller diameter
6.07 in
Curve tolerance
ISO9906:2012 3B
Impellers
2
Connection
PJE
Impeller
Stainless steel
Code for shaft seal
HQQV
Pump housing
Stainless steel
Number of reduced-diameter impellers
2
Pump
25 HP
Low NPSH
N
Standard
NEMA
Pump version
A
Motor Curves

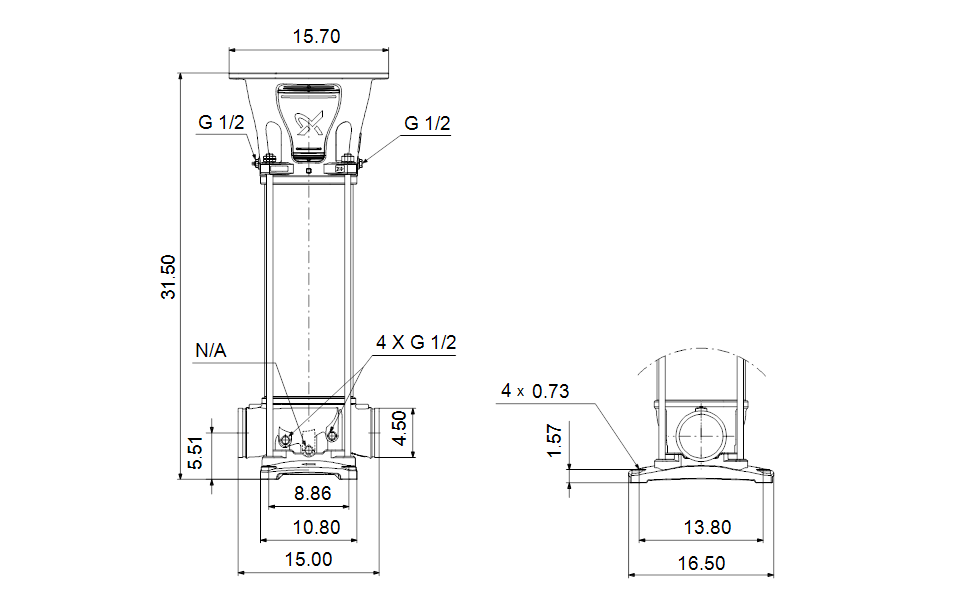

Dimensional Drawing
