Grundfos 99400208 - CRN 95-2-1 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $8,171.80
GRUNDFOSSKU: 99400208

Price:
Sale price$10,921.20 Regular price$19,093.00
Build to order – stocked components, typically available in 10 days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99400208 - CRN 95-2-1 A-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 99400208 - CRN 95-2-1 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRN series is suitable for both commercial and industrial environments. This model features multiple stages to enhance pressure capabilities, ensuring optimal flow rates and energy efficiency.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5713828495570
Applications Industrial applications
Actual impeller diameter 6.07 in
Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 WC/WC
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PJE
Connection 2 1000 psi
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.07 in
DOE Pump Energy Index CL 0.92
Flange size for motor 286TC
Flange standard PJE
Frequency 60 HZ
Frequency converter NONE
Gross weight 496.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 363 psi / 250 °F
Maximum head 262.2 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 286TC
Motor standard NEMA
n rpm 3532rpm
Net weight 238.0 lb
Number of reduced-diameter impellers 1
Power (P2) required by pump 30 HP
Pressure rating 1000 psi
Pressure rating for connection 1000 psi
Product family CRN 95
Pump 30 HP
Pump housing Stainless steel
Pump inlet 4
Pump outlet 4
Pump version A
Pumped liquid Water
Rated flow 500 US gpm
Rated flow 2 500 US gpm
Rated head 182.1 ft
Rated head 2 182.1 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal HQQE
Stages 2
Standard NEMA
Support bearing Graflon
Thrust handling device N
Type of connection PJE
Version A

Motor Curves

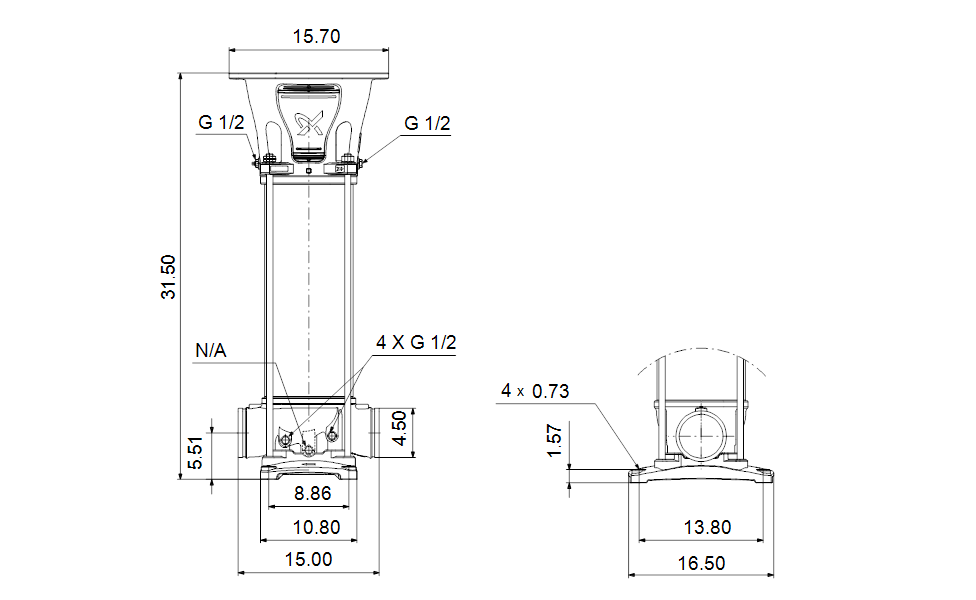

Dimensional Drawing
