Grundfos 99145108 - CRN 95-2-1 A-P-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99145108

Price:
Sale price$36,553.62
Build to order – stocked components, typically available in 20 days
or Call for most up to date lead times. (781) 281-8905

Description

CRN 95-2-1 A-P-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5712607591182
Applications Industrial applications
Actual impeller diameter 6.07 in
Approvals CE
Approvals for drinking water NSF/ANSI 372
Bearing 1 WC/WC
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PJE
Connection 2 1000 psi
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.07 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) 55 Dust/Jetting
Eta 1/1 91.5-91.7%
Flange size for motor 286TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 85-77,0/38,5 A
Gross weight 752.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency classNEMA Premium / IE3 60Hz
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 2
Insulation F
Insulation class (IEC 85) F
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 262.2 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 286TC
Motor efficiency at 1/2 load 93.0-92.0 %
Motor efficiency at 3/4 load 91.0-92.0 %
Motor efficiency at full load 1 91.5-91.7 %
Motor protec PTC
Motor standard NEMA
Motor type 180AA
n rpm 3490-3540rpm
Net weight 490.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
P2 HP 30 HP
P2 kW 22kW
Phase 3
Power (P2) required by pump 30 HP
Power factor 1 0.92-0.91
Pressure rating 1000 psi
Pressure rating for connection 1000 psi
Product family CRN 95
Pump 30 HP
Pump housing Stainless steel
Pump inlet 4
Pump outlet 4
Pump version A
Pumped liquid Water
Rated current 74,0-67,0/33,5 A
Rated flow 500 US gpm
Rated flow 2 500 US gpm
Rated head 182.1 ft
Rated head 2 182.1 ft
Rated power - P2 30 HP
Rated speed 3490-3540 rpm
Rated voltage 3 x 208-230DD/460D V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQV
Stages 2
Standard NEMA
Starting current 540-730 %
Support bearing Graflon
Thrust handling device N
Type 180AA
Type of connection PJE
Version A

Motor Curves

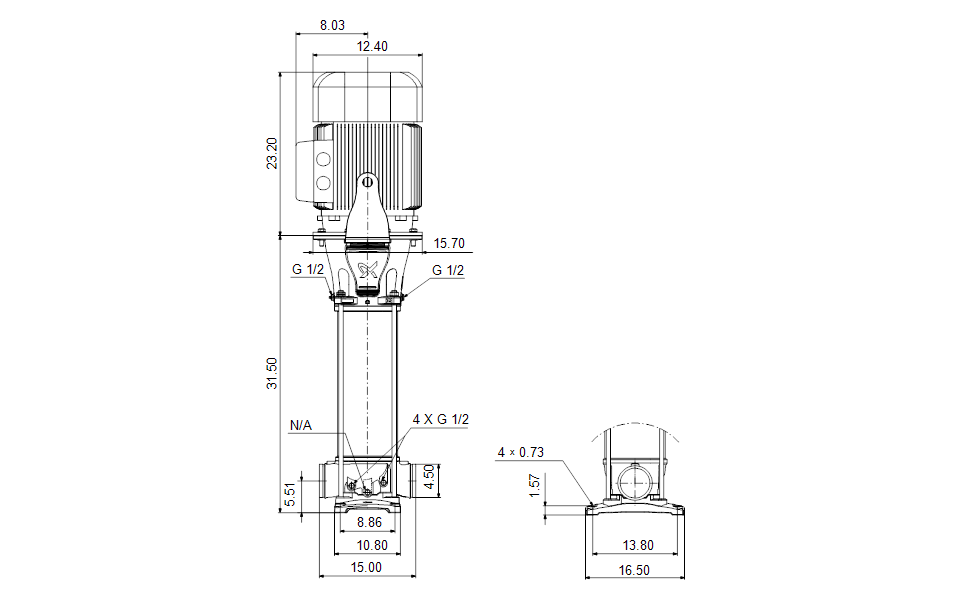

Dimensional Drawing

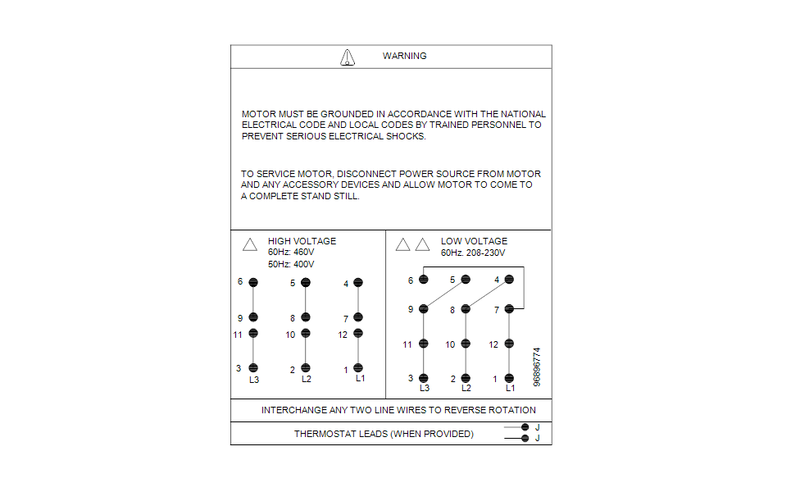

DWiring Diagram
