Grundfos 99400204 - CRN 95-1-1 A-P-A-E-HQQE
Grundfos 99400204 - CRN 95-1-1 A-P-A-E-HQQE
Grundfos 99400204 - CRN 95-1-1 A-P-A-E-HQQE
Grundfos 99400204 - CRN 95-1-1 A-P-A-E-HQQE

Grundfos 99400204 - CRN 95-1-1 A-P-A-E-HQQE

Save $6,006.72
GRUNDFOSSKU: 99400204
Price:
$6,507.28 $12,514.00
Build to order – stocked components, typically available in 10 days
Chat or Call for most up to date lead times. (781) 281-8905

Description

CRN 95-1-1 A-P-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5713828495501
Applications Industrial applications
Material Pricing Group 33
Code for rubber E
Material code A
Density 62.29 lb/ft³
Max pressure at stated temp 232 psi / 250 °F
Maximum operating pressure 232.06 psi
Support bearing Graflon
Selected liquid temperature 68 °F
Type of connection PJE
Bearing 1 WC/WC
Pressure rating 1000 psi
Flange size for motor 254TC
Pumped liquid Water
Pump outlet 4
Pump inlet 4
Connect code P
Liquid temperature range -4 .. 248 °F
Net weight 227.0 lb
Gross weight 485.0 lb
Power (P2) required by pump 15 HP
Pressure rating for connection 1000 psi
Frequency converter NONE
DOE Pump Energy Index CL 0.92
Stages 1
Rated flow 500 US gpm
Flange standard PJE
Model A
Version A
Diameter 6.07 in
Motor 254TC
Rubber E
Maximum head 119.1 ft
Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Motor standard NEMA
Material certified according to European standards
Thrust handling device N
Rated head 76.78 ft
Actual impeller diameter 6.07 in
Curve tolerance ISO9906:2012 3B
Impellers 1
Connection PJE
Impeller Stainless steel
Code for shaft seal HQQE
Pump housing Stainless steel
Number of reduced-diameter impellers 1
Pump 15 HP
Low NPSH N
Standard NEMA
Pump version A

Motor Curves

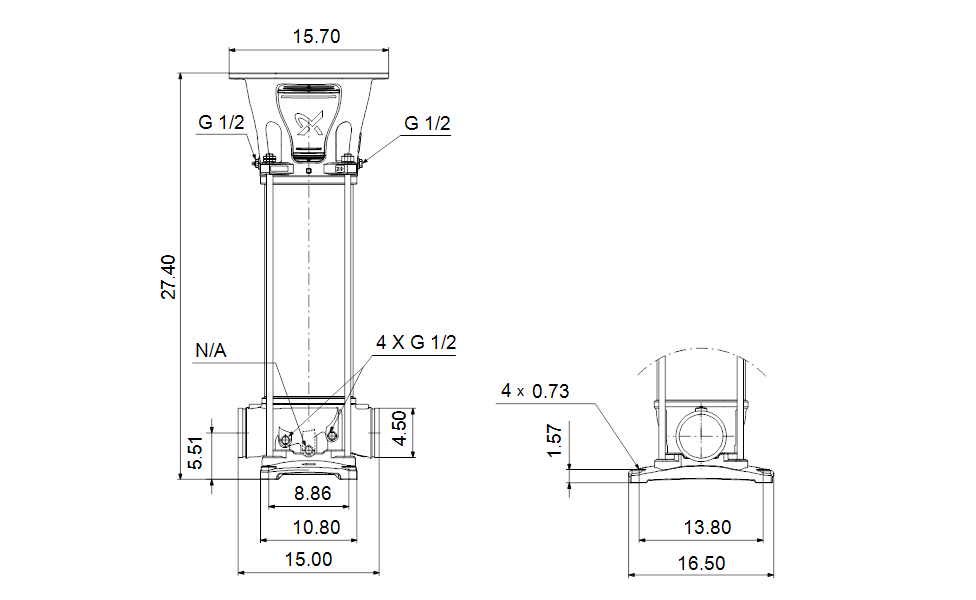

Dimensional Drawing
