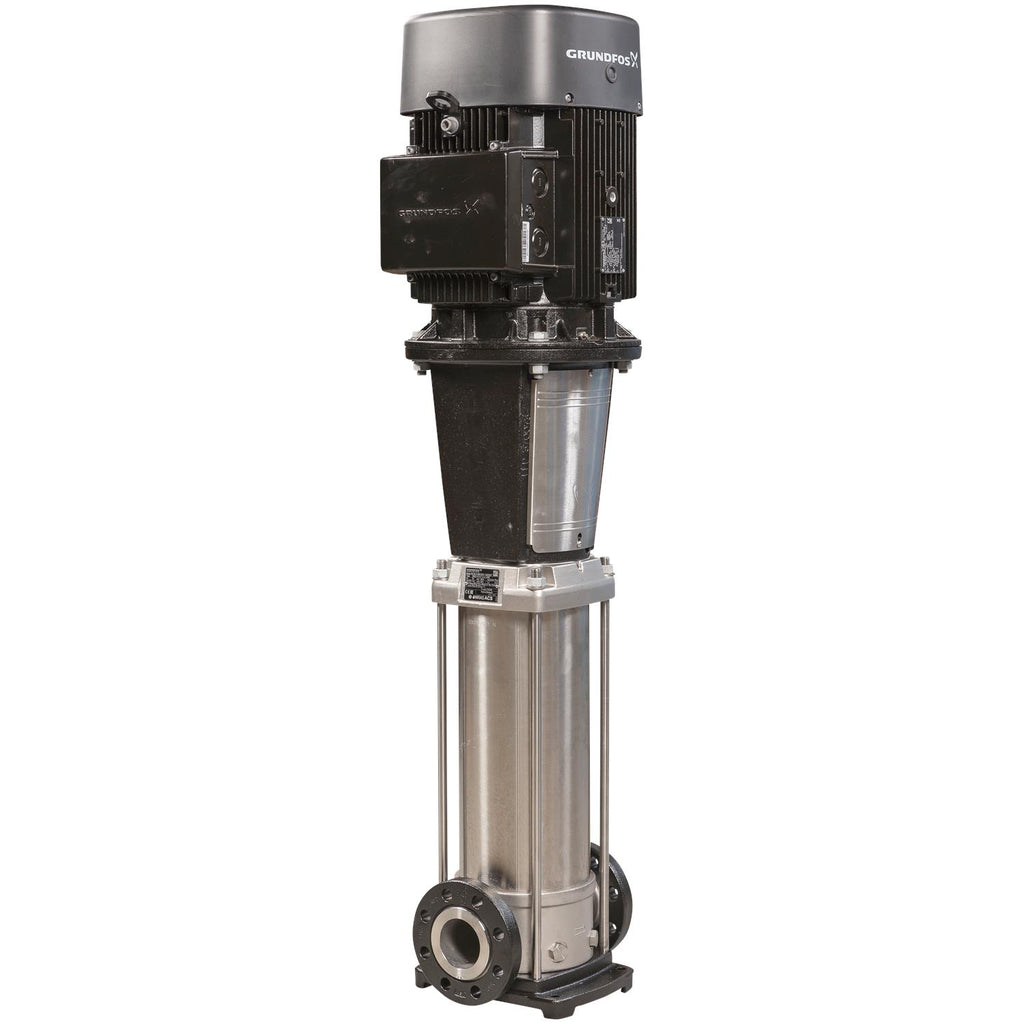

Grundfos 96123746 - CRN 64-6 A-F-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96123746

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 64-6 A-F-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700396699974
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Bearing 2 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor FF350
Frequency converter NONE
Gross weight 856.0 lb
IE efficiency IE3 93
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum ambient temperature 131 °F
Maximum head 585 ft
Maximum operating pressure 30 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF350
Motor efficiency at 1/2 load 94.0-94.0 %
Motor efficiency at 3/4 load 94.2-94.2 %
Motor efficiency at full load 1 93.7-93.7 %
Motor standard IEC
Motor type SIEMENS
Net weight 771.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 37 kW
Power factor 1 0.88
Pressure rating for connection PN 40
Pump 37 kW
Pump speed on which pump data are based 2957 rpm
Pump version A
Pumped liquid Water
Rated current 113/65 A
Rated flow 282 US gpm
Rated head 457.4 ft
Rated power - P2 37 kW
Rated speed 2955 rpm
Rated voltage 3 x 220-240D/380-420Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 100
Size of outlet connection DN 100
Stages 6
Standard IEC
Starting current 710-710 %
Support bearing Graflon
Terminal box position 6
Type SIEMENS
Type of connection DIN
Version A
