Grundfos 97735894 - CRN 64-3-2 H-GC-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $8,700.81
GRUNDFOSSKU: 97735894

Price:
Sale price$11,628.19 Regular price$20,329.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97735894 - CRN 64-3-2 H-GC-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance and longevity. It is categorized under Grundfos Centrifugal Pumps, specifically within the Multi-Stage and Horizontal Multistage types. The SKU for this product is 97735894, and it is essential to verify your current pump's part number to ensure compatibility.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have any questions or need assistance in finding the right pump for your application, please do not hesitate to contact our knowledgeable team at (781) 281-8905. We are here to help you navigate through our extensive inventory and ensure you find the perfect match for your needs.

For optimal results, we recommend checking your existing pump for the exact part number or SKU that matches the Grundfos 97735894. If you encounter any difficulties, our team is ready to assist you in locating the right item.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code GC
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 221.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 248°F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Maximum head 310.7 ft
Maximum operating pressure 232.06 psi
Model B
Motor 284TC
Motor standard NEMA
n rpm 3541rpm
Net weight 102.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 337 US gpm
Rated head 261.8 ft
Rubber E
Sales region USA
Shaft Product name:CRN 64-3-2 H-GC-A-E-HQQE
Shaft seal HQQE
Stages 3
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

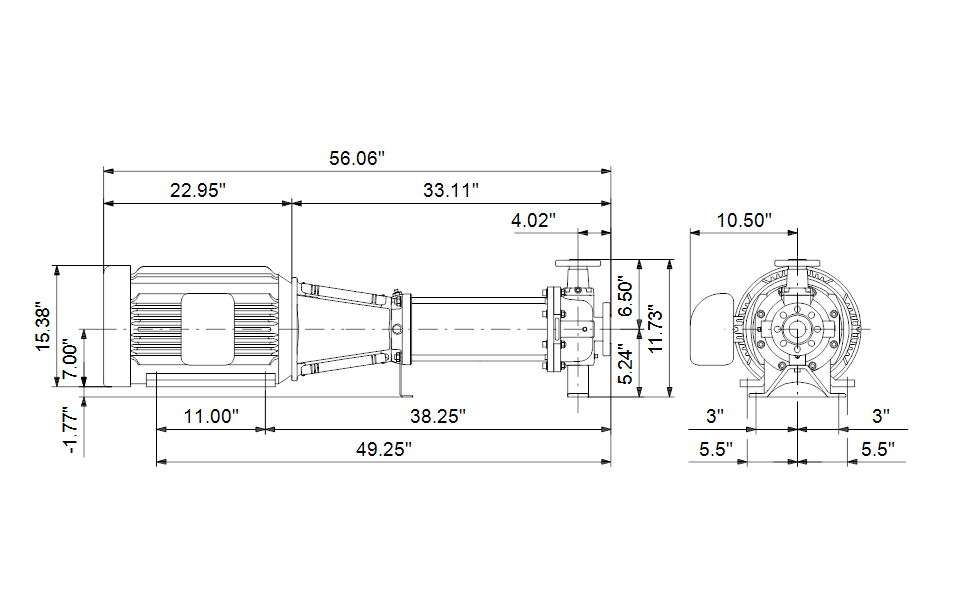

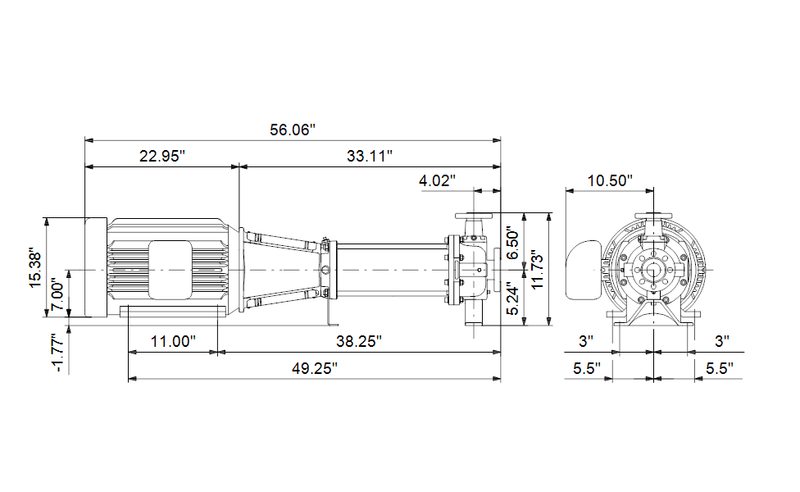

Dimensional Drawing
