Grundfos 92617642 - CRN 64-2 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92617642

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92617642 - CRN 64-2 A-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92617642 - CRN 64-2 A-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 64-2 A-G-A-E-HQQE model ensures optimal fluid handling capabilities, making it suitable for various operational environments. Whether you need a pump for water supply, irrigation, or industrial processes, this model is built to meet your demands.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715117140246
Actual impeller diameter 5.59 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection PTO
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.59 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange rating inlet 150 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 656.0 lb
IE efficiency IE3 92
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 290.4 ft
Maximum operating pressure 16 bar
Model B
Motor 284TC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.924
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type WEG
Net weight 638.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 18.5 kW
Power factor 1 0.88
Pressure rating for connection PN 16
Pressure sensor N
Pump 18.5 kW
Pump speed on which pump data are based 3521 rpm
Pump version A
Pumped liquid Water
Rated current 62
Rated flow 339 US gpm
Rated head 212.6 ft
Rated power - P2 18.5 kW
Rated speed 3545 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 2
Standard NEMA
Starting current 900-900 %
Support bearing Graflon
Type WEG
Type of connection ANSI
Version A

Motor Curves

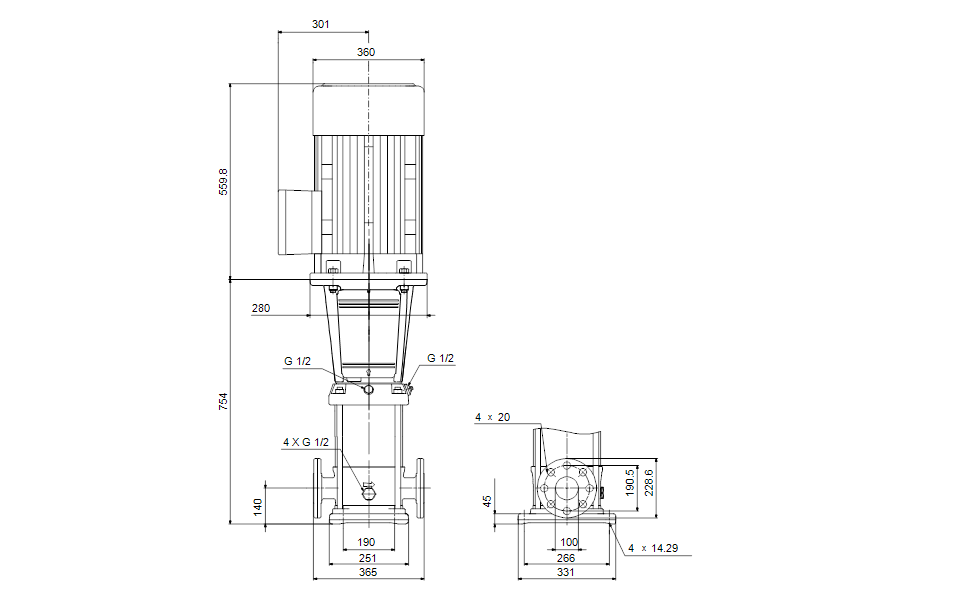

Dimensional Drawing

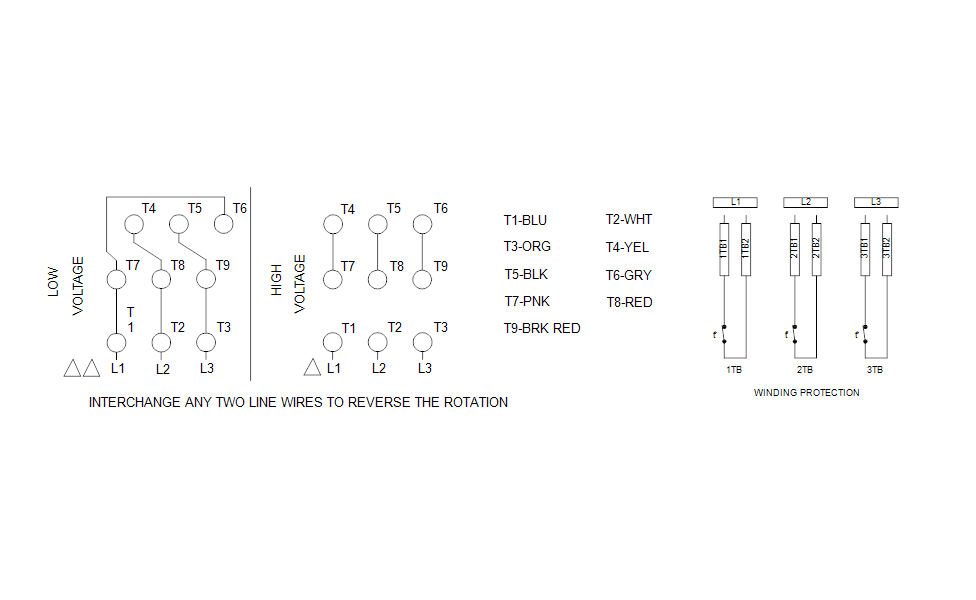

DWiring Diagram
