Description
The Grundfos 92555352 (CRN 64-2 F-G-A-F-HQQE) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 339US gpm at 212.6ft. Rated 230/460V, 3.0-Phase, 60 Hz.
All Stainless Steel Construction
Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.
Corrosion-Resistant for Aggressive Fluids
316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.
Cartridge Mechanical Seal
Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.
Dual Flange Standard — DIN, ANSI, JIS
CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.
3-A and FDA-Compliant Options
Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.
Wide Pressure Range
CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.
| Model Number | 92555352 |
| Product Series | CRN |
| Series Description | Vertical Multistage Centrifugal Pump — All Stainless |
| Power | 25HP |
| Voltage | 230/460V |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3545rpm |
| Pump Speed | 3521rpm |
| Full Load Current | 57,6/28,8A |
| Motor Type | WEG |
| Motor Efficiency Class | IE3 / NEMA Premium |
| Motor Efficiency | IE3 91,7% |
| Insulation Class | F |
| Protection Class (IP) | TEFC |
| Nominal Flow | 339US gpm |
| Nominal Head | 212.6ft |
| Max Operating Pressure | 362.59psi |
| Max Fluid Temperature | 356°F |
| Max Ambient Temperature | 104°F |
| Inlet Connection | 4inch |
| Outlet Connection | 4inch |
| Pipe Pressure Rating | PN 40 |
| Pipe Standard | ANSI |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | HQQE |
| Approvals / Certifications | CURUS |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 230/460V, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 356°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5715116193588
- Actual impeller diameter
- 5.59 in
- Approvals
- CURUS
- Bearing 1
- Graflon
- Built-in motor protection
- NONE
- Code for rubber
- F
- Code for shaft seal
- HQQE
- Connect code
- G
- Connection
- PN 40
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Diameter
- 5.59 in
- DOE Pump Energy Index CL
- 0.93
- Enclosure class (IEC 34-5)
- IP55
- Flange rating inlet
- 300 lb
- Flange size for motor
- 284TC
- Frequency converter
- NONE
- Gross weight
- 638.0 lb
- IE efficiency
- IE3 91
- IE Efficiency class
- IE3 / NEMA Premium
- Impeller
- Stainless steel
- Impellers
- 0
- Insulation class (IEC 85)
- F
- Liquid temperature range
- 14 .. 356 °F
- Low NPSH
- N
- Mains frequency
- 60 Hz
- Material code
- A
- Max pressure at stated temp
- 363 psi / 356 °F
- Maximum ambient temperature
- 104 °F
- Maximum head
- 290.4 ft
- Maximum operating pressure
- 25 bar
- Model
- B
- Motor
- 284TC
- Motor efficiency at 1/2 load
- 0.91
- Motor efficiency at 3/4 load
- 0.917
- Motor efficiency at full load 1
- 0.917
- Motor standard
- NEMA
- Motor type
- WEG
- Net weight
- 620.0 lb
- Number of poles
- 2
- Number of reduced-diameter impellers
- 0
- Power (P2) required by pump
- 18.5 kW
- Power factor 1
- 0.88
- Pressure rating for connection
- PN 40
- Pressure sensor
- N
- Pump
- 18.5 kW
- Pump speed on which pump data are based
- 3521 rpm
- Pump version
- F
- Pumped liquid
- Water
- Rated current
- 57.6/28.8 A
- Rated flow
- 339 US gpm
- Rated head
- 212.6 ft
- Rated power - P2
- 18.5 kW
- Rated speed
- 3545 rpm
- Rated voltage
- 3 x 230/460 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- F
- Selected liquid temperature
- 68 °F
- Service factor
- 1.25
- Size of inlet connection
- 4 inch
- Size of outlet connection
- 4 inch
- Stages
- 2
- Standard
- NEMA
- Starting current
- 6.3
- Support bearing
- Graflon
- Type
- WEG
- Type of connection
- ANSI
- Version
- F

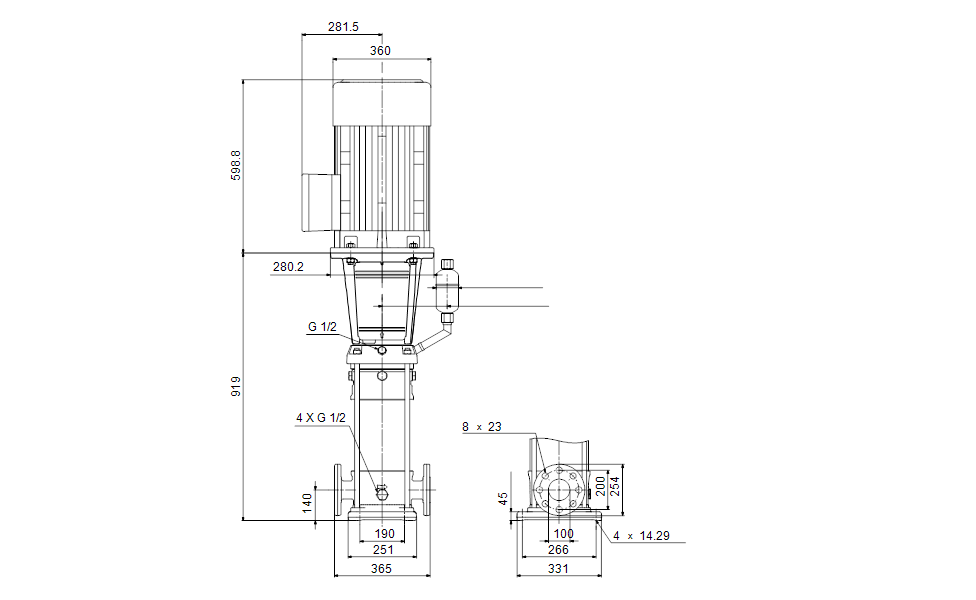

Dimensional Drawing
Wiring Diagram
