Grundfos 92722108 - CRN 64-2-2 M-G-A-V | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92722108

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

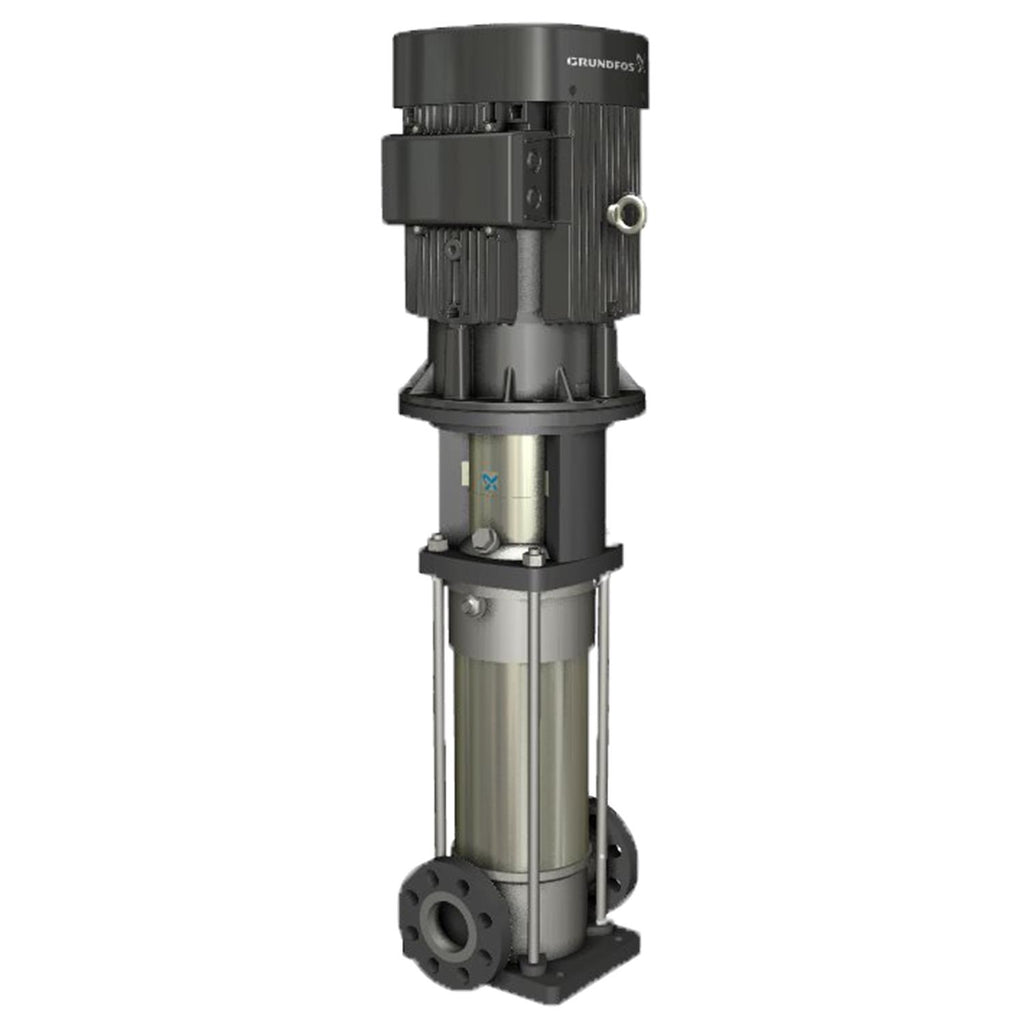

Grundfos 92722108 - CRN 64-2-2 M-G-A-V Vertical Multistage Centrifugal Pump

The Grundfos 92722108 - CRN 64-2-2 M-G-A-V is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model ensures efficient operation and reliability in demanding environments.

With its robust construction and advanced design, the CRN 64-2-2 M-G-A-V is ideal for high-pressure applications, making it a perfect choice for those seeking durability and performance. This pump is part of the Grundfos Centrifugal Pumps range, specifically tailored for both single and multi-stage operations.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 92722108. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715118651635
Approvals CE
Bearing 1 Graflon
Code for rubber V
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 195.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 194.2 ft
Maximum operating pressure 16 bar
Model B
Motor 254TC
Motor standard NEMA
Net weight 177.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3444 rpm
Pump version M
Rated flow 339 US gpm
Rated head 141.4 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 2
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version M

Motor Curves

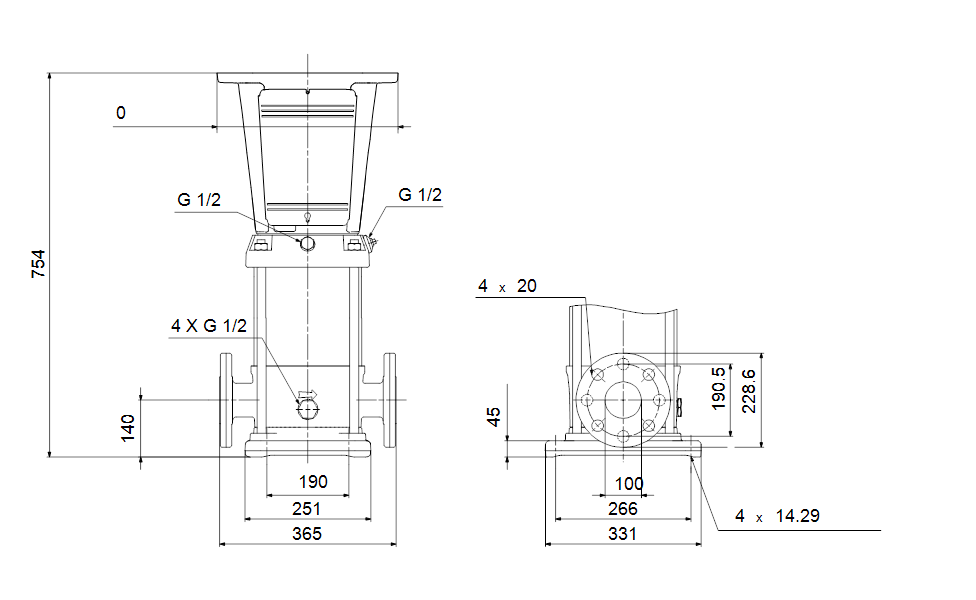

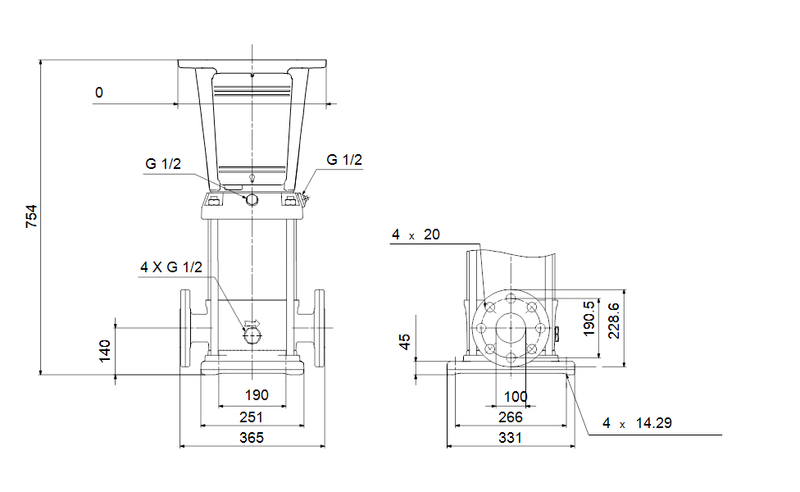

Dimensional Drawing
