Grundfos 98409095 - CRN 64-1 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98409095

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

CRN 64-1 A-G-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

EAN 5711494522439
Actual impeller diameter 5.59 in
Approvals CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 5.59 in
DOE Pump Energy Index CL 0.94
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 158.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 38.39 ft
Maximum operating pressure 16 bar
Model B
Motor 182TC
Motor standard NEMA
Net weight 140.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 1760 rpm
Pump version A
Rated flow 170 US gpm
Rated head 25.92 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 1
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version A

Motor Curves

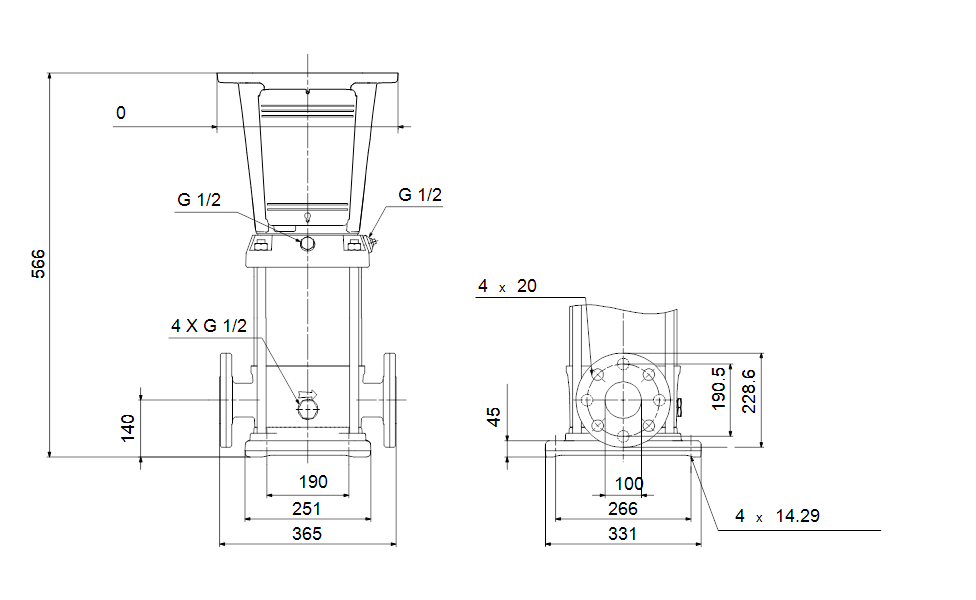

Dimensional Drawing
