Grundfos 92607403 - CRN 64-1 I-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92607403

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92607403 is a CRN 64-1 vertical multistage centrifugal pump designed for industrial and commercial fluid-handling systems. Technicians and maintenance teams use this inline, high-pressure pump where compact, multi-stage performance is required.

Key features

  • Manufactured by Grundfos for various industrial applications
  • Vertical, in-line multistage centrifugal design suitable for high-pressure service
  • Delivers reliable pressure boosting and consistent flow for process and service systems

Applications

Typical uses include boiler feed, pressure boosting, process circulation, and other high-pressure in-line vertical multistage applications in commercial and light industrial settings.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92607403

EAN 5715116988498
Actual impeller diameter 5.59 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.59 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP54
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 430.0 lb
IE efficiency IE3 91%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 580 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 153.9 ft
Maximum operating pressure 40 bar
Model B
Motor 254TC
Motor efficiency at 1/2 load 91-91 %
Motor efficiency at 3/4 load 91.6-91.6 %
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type BALDOR
Net weight 412.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 11 kW
Power factor 1 0.87
Pressure rating for connection PN 40
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 3444 rpm
Pump version I
Pumped liquid Water
Rated current 38
Rated flow 339 US gpm
Rated head 103.4 ft
Rated power - P2 11 kW
Rated speed 3520 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 1
Standard NEMA
Starting current 6.8
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version I

Motor Curves

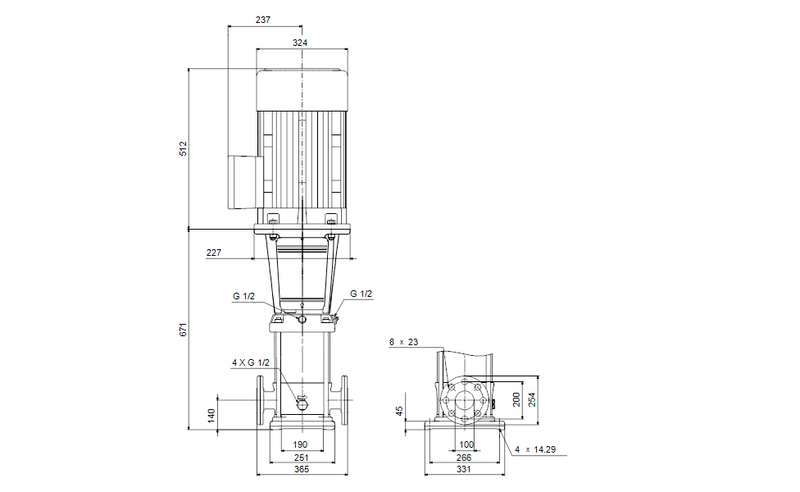

Dimensional Drawing

DWiring Diagram
