Grundfos 98337210 - CRN 5-9 E-CA-T-E-HQQK | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98337210

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98337210 - CRN 5-9 E-CA-T-E-HQQK This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5711493226765
Approvals CE
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQK
Connect code CA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT115
Frequency converter NONE
Gross weight 39.0 kg
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -20 .. 120 °C
Low NPSH N
Mains frequency 60 Hz
Material code T
Material Pricing Group 6
Max pressure at stated temp 25 bar / 120 °C
Maximum ambient temperature 60 °C
Maximum head 93.3 m
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT115
Motor efficiency at 1/2 load 89.2-86.3 %
Motor efficiency at 3/4 load 89.5-88.5 %
Motor efficiency at full load 1 86.5-86.5 %
Motor standard IEC
Motor type 90LE
Net weight 35.0 kg
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.88-0.80
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3501 rpm
Pump version E
Pumped liquid Water
Rated current 7
Rated flow 6.9 m³/h
Rated head 68 m
Rated power - P2 2.2 kW
Rated speed 3480-3530 rpm
Rated voltage 3 x 230-277D/400-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 9
Standard IEC
Starting current 820-1050 %
Type 90LE
Type of connection FlexiClamp
Version E

Motor Curves

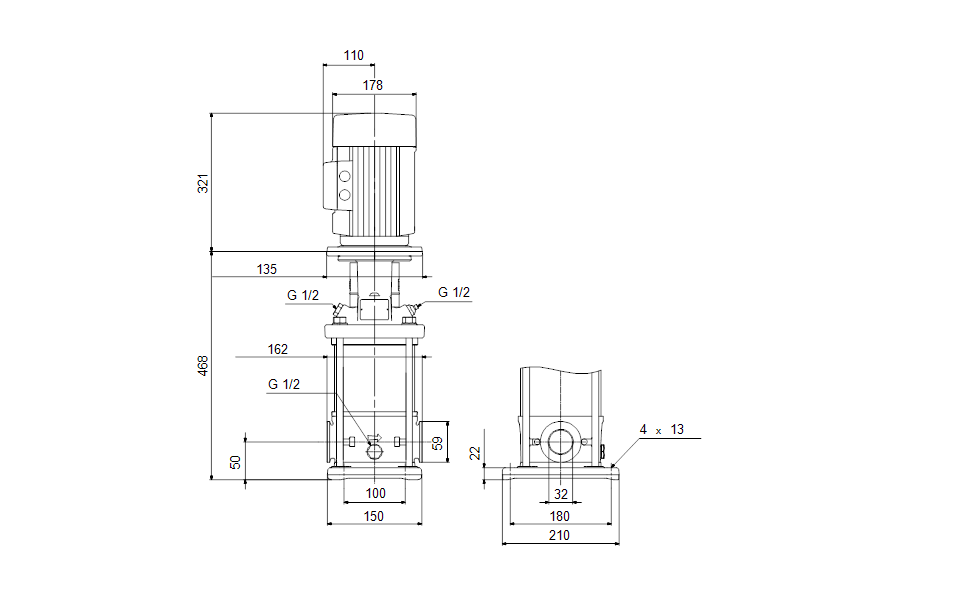

Dimensional Drawing

DWiring Diagram
