Grundfos 98161268 - CRN 5-9 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,282.88
GRUNDFOSSKU: 98161268

Price:
Sale price$2,473.12 Regular price$4,756.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98161268 - CRN 5-9 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98161268 - CRN 5-9 A-FGJ-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

This model features a robust construction that ensures durability and longevity, even in demanding environments. With its multistage design, the CRN 5-9 A-FGJ-A-E-HQQE is capable of achieving high pressure while maintaining a compact footprint, making it suitable for both new installations and replacements.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710629592934
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FT115
Frequency converter NONE
Gross weight 87.3 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 209.7 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT115
Motor efficiency at 1/2 load 86.0-83.0 %
Motor efficiency at 3/4 load 86.4-84.9 %
Motor efficiency at full load 1 84.2-84.2 %
Motor standard IEC
Motor type 90GB
Net weight 78.4 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.84-0.78
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 2896 rpm
Pump version A
Pumped liquid Water
Rated current 5.70/3.30 A
Rated flow 25.5 US gpm
Rated head 156.5 ft
Rated power - P2 1.5 kW
Rated speed 2890-2910 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 9
Standard IEC
Starting current 750-820 %
Type 90GB
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

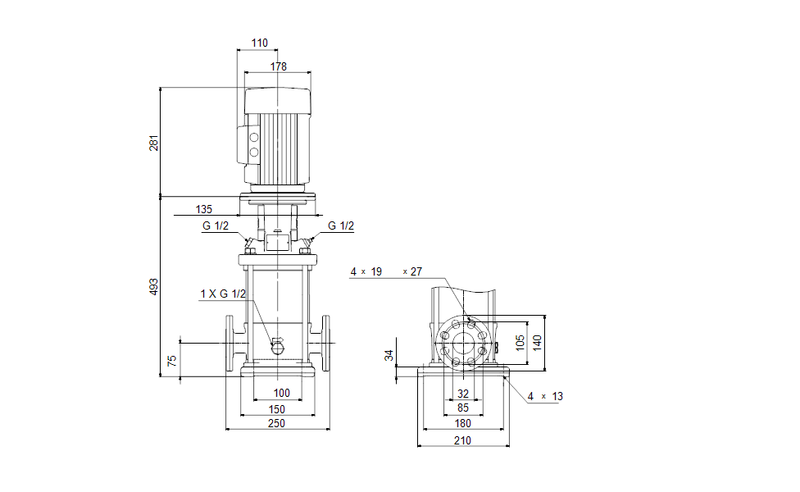

Dimensional Drawing

DWiring Diagram
