Grundfos 92627383 - CRN 5-9 M-FGJ-H-V | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92627383

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92627383 - CRN 5-9 M-FGJ-H-V Vertical Multistage Centrifugal Pump

The Grundfos 92627383 - CRN 5-9 M-FGJ-H-V is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model ensures efficient operation and reliability in demanding environments.

With its robust construction and advanced design, the CRN 5-9 M-FGJ-H-V is ideal for high-pressure applications, making it a perfect choice for those seeking durability and performance. This pump is part of the renowned Grundfos Centrifugal Pumps series, known for their exceptional quality and efficiency.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715117292341
Approvals CURUS
Built-in motor protection NONE
Code for rubber V
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 168.0 lb
IE efficiency IE3 88
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code H
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 299.2 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 0.875
Motor efficiency at 3/4 load 0.885
Motor efficiency at full load 1 0.885
Motor standard NEMA
Motor type WEG
Net weight 150.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Power factor 1 0.89
Pressure rating for connection PN 25
Pressure sensor N
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version M
Pumped liquid Water
Rated current 11.8/5.9 A
Rated flow 30.4 US gpm
Rated head 222.8 ft
Rated power - P2 3.7 kW
Rated speed 3500 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 9
Standard NEMA
Starting current 7.8
Type WEG
Type of connection DIN / ANSI / JIS
Version M

Motor Curves

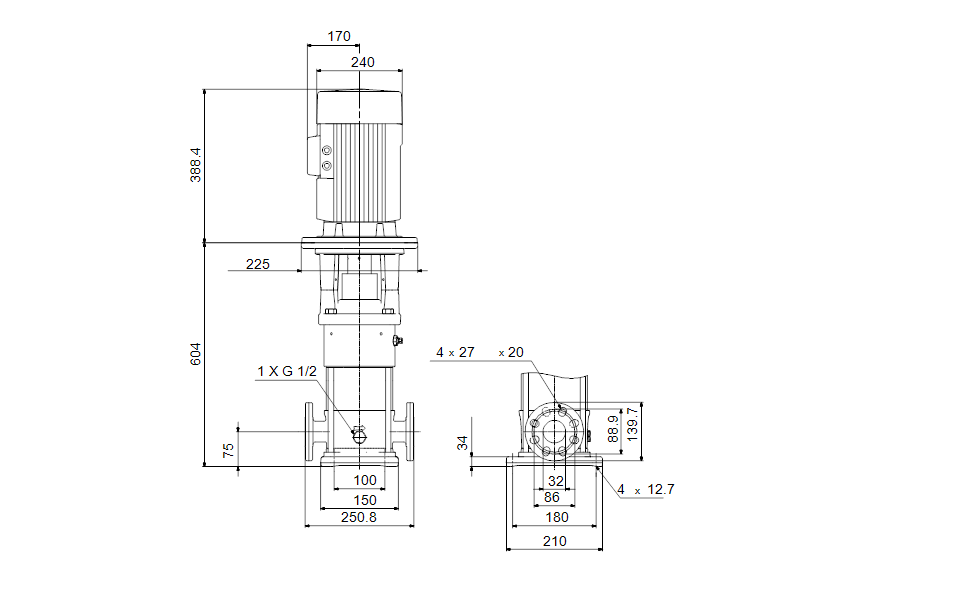

Dimensional Drawing

DWiring Diagram
