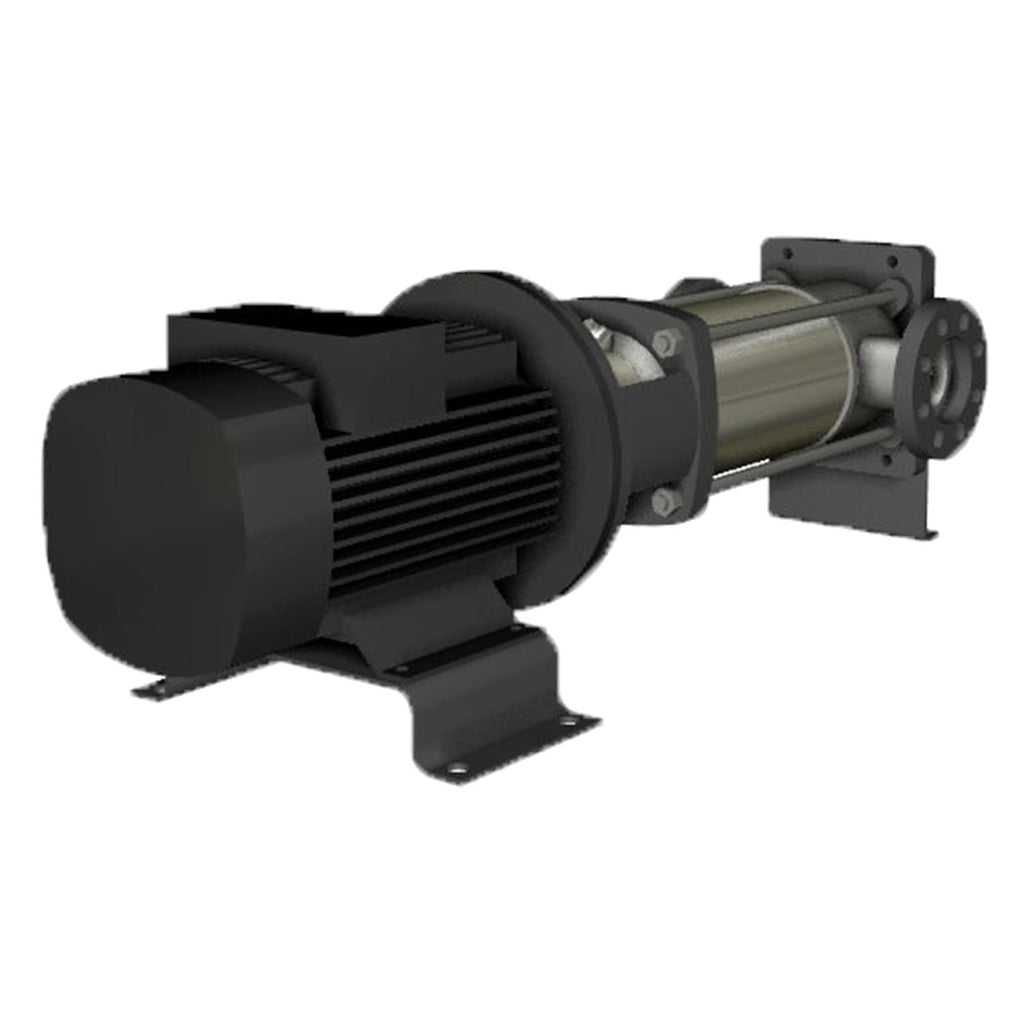

Grundfos 97626250 - CRN 5-8 HK-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97626250

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 5-8 HK-FGJ-A-E-HQQE Pump materials in contact with the liquid are in high-grade stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.

EAN 5700319638752
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 59.9 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 250 °F
Maximum head 257.2 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 45.3 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version HK
Rated flow 30.4 US gpm
Rated head 189.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 8
Standard NEMA
Type of connection DIN / ANSI / JIS
Version HK

Motor Curves

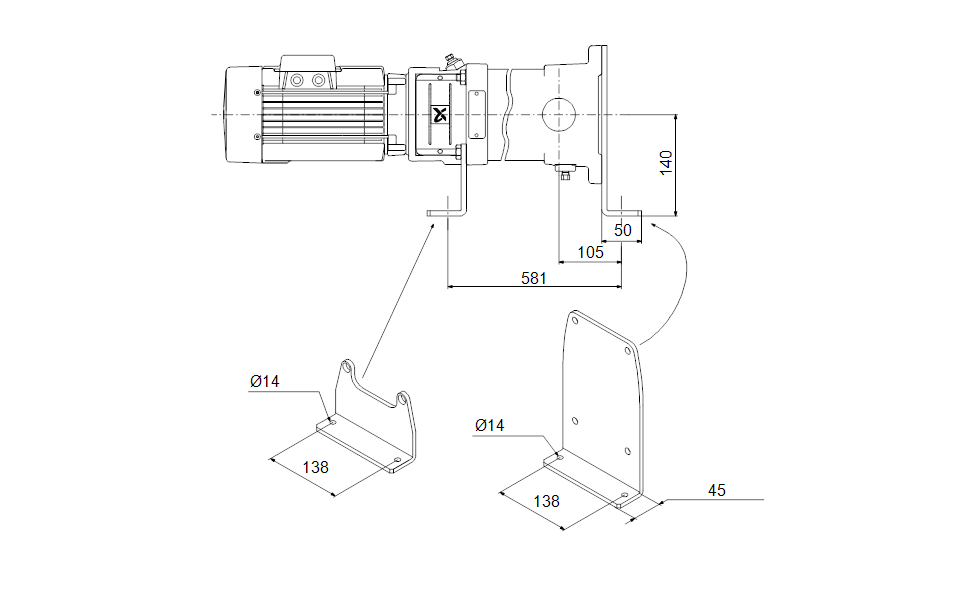

Dimensional Drawing
