Grundfos 98517270 - CRN 5-7 P-P-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98517270

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

CRN 5-7 P-P-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5711496439216
Approvals CE
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Flange size for motor 56C
Frequency converter NONE
Gross weight 46.2 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 235.2 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 31.7 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 50
Pressure sensor N
Pump speed on which pump data are based 3452 rpm
Pump version P
Rated flow 30.4 US gpm
Rated head 170.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 7
Standard NEMA
Type of connection PJE
Version P

Motor Curves

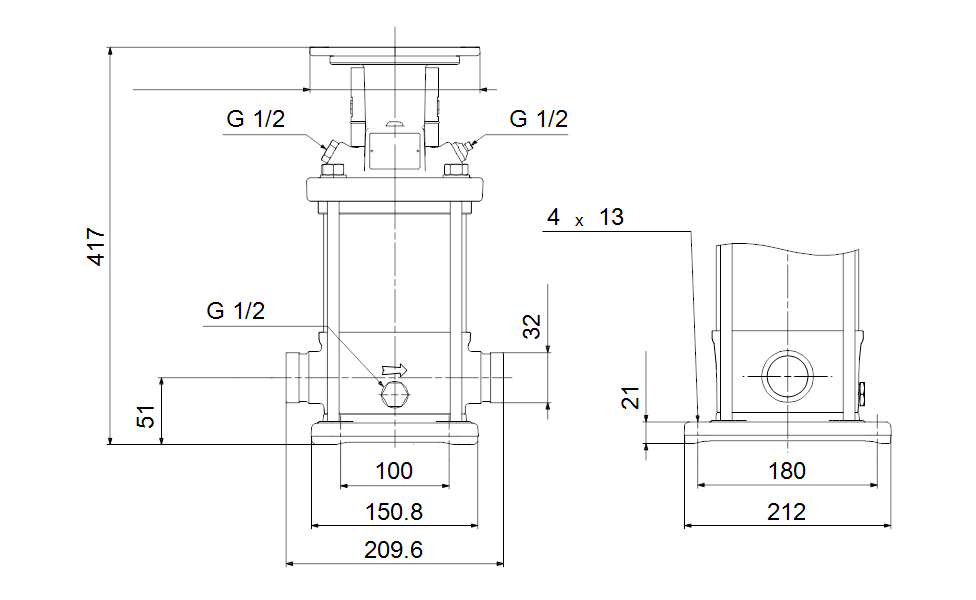

Dimensional Drawing
