Grundfos 97855285 - CRN 5-7 P-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97855285

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97855285 - CRN 5-7 P-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97855285 - CRN 5-7 P-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRN 5-7 model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, making it a versatile solution for various industries.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710625882336
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Flange size for motor 56C
Frequency converter NONE
Gross weight 46.2 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 235.2 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 31.7 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 50
Pressure sensor N
Pump speed on which pump data are based 3452 rpm
Pump version P
Rated flow 30.4 US gpm
Rated head 170.3 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 7
Standard NEMA
Type of connection PJE
Version P

Motor Curves

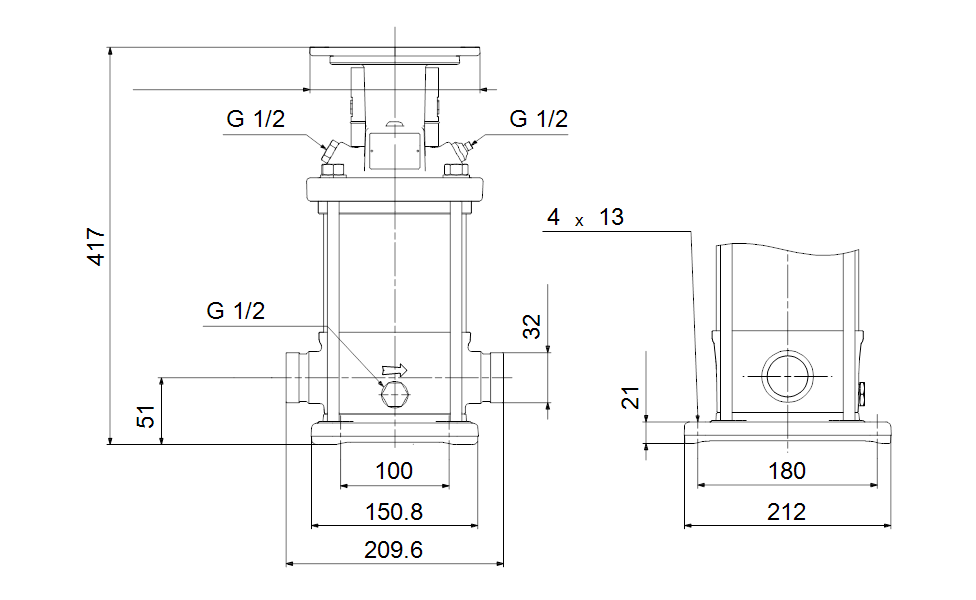

Dimensional Drawing
