Grundfos 97766464 - CRN 5-7 A-P-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 97766464

Price:
Sale price$6,987.50
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 5-7 A-P-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.

EAN 5710624013335
Applications Industrial applications
Actual impeller diameter 73.2 mm
Approvals CURUS
Approvals for drinking water NSF61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Diameter 73.2 mm
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) IP55
Flange size for motor 182TC
Frequency converter NONE
Full load SF current 31
Gross weight 54.9 kg
IE efficiency 0.75
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -20 .. 120 °C
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 25 bar / 120 °C
Maximum ambient temperature 40 °C
Maximum head 73.7 m
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.75
Motor standard NEMA
Motor type BALDOR
Net weight 48.3 kg
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 50
Product family CRN 5
Pump 2.2 kW
Pump speed on which pump data are based 3499 rpm
Pump version A
Pumped liquid Water
Rated current 29/16-14
Rated flow 6.9 m³/h
Rated head 53.8 m
Rated power - P2 2.2 kW
Rated speed 3450 rpm
Rated voltage 1 x 115/208-230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Service factor 1.15
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 7
Standard NEMA
Type BALDOR
Type of connection PJE
Version A

Motor Curves

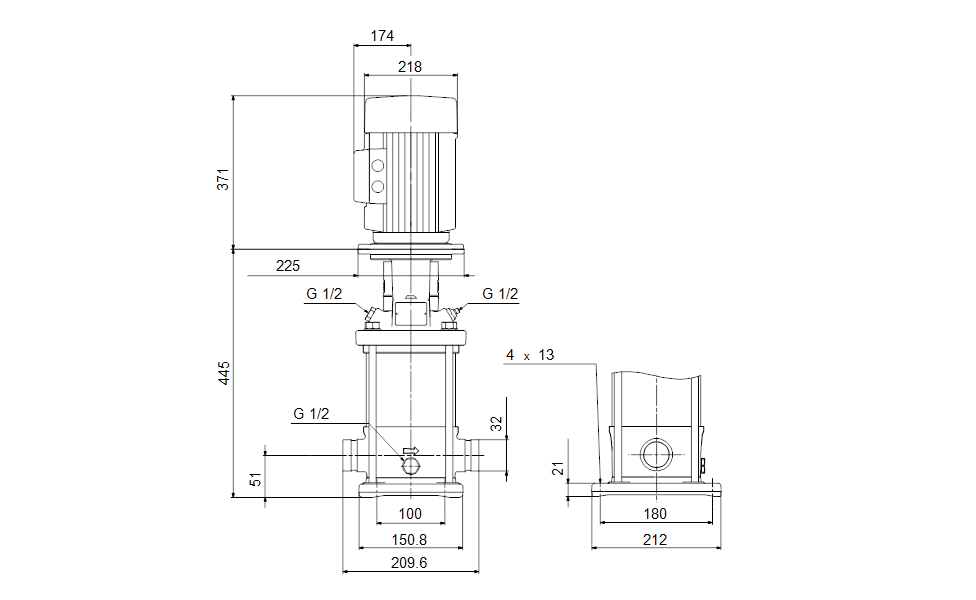

Dimensional Drawing

DWiring Diagram
