Grundfos 97735789 - CRN 5-6 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $1,501.85
GRUNDFOSSKU: 97735789

Price:
Sale price$2,007.15 Regular price$3,509.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97735789 - CRN 5-6 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting water pressure and transferring fluids in demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance in both single and multi-stage configurations. The CRN series is particularly noted for its versatility, allowing it to be used in various settings, including commercial and industrial sectors.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, as this will help ensure compatibility and performance.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

Approvals on nameplate CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 50.3 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 203.8 ft
Maximum operating pressure 232.06 psi
Model A
Motor 56C
Motor standard NEMA
n rpm 3452rpm
Net weight 38.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 30.8 US gpm
Rated head 148 ft
Rubber V
Sales region USA
Shaft Product name:CRN 5-6 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 6
Standard NEMA
Version H

Motor Curves

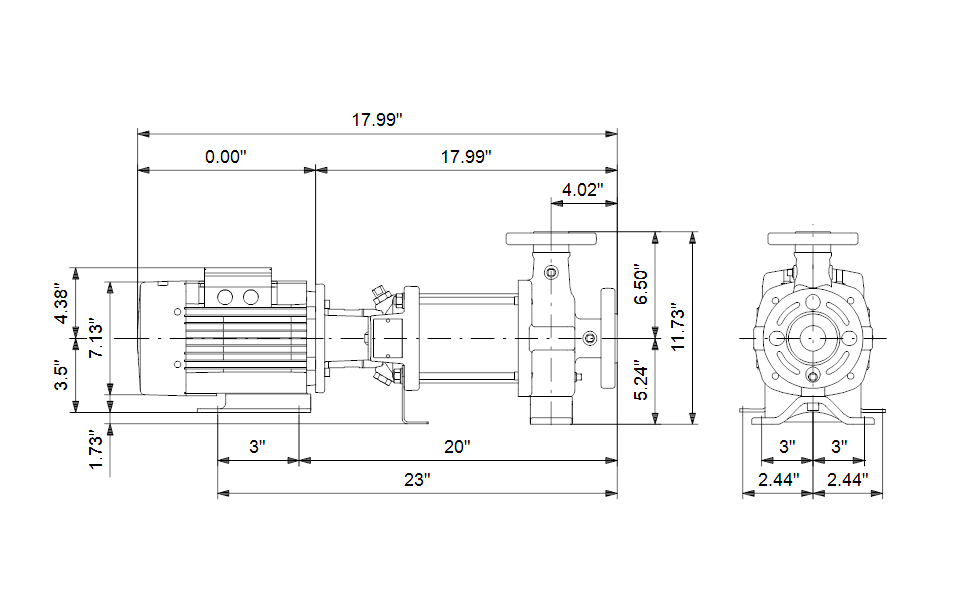

Dimensional Drawing
